3003 4343 HO Silver Hot Rolling Aluminium Extruded Profiles Head Or Side Sheet For Radiator
| Color: | Silver | Thickness: | Customizable |
| Grade: | Customizable | Specification: | According To Customers' Requests |
| Alloy states: | According To Customers' Requests | Transport Package: | Standard Export Packaging |
| Alloy state: | 3003/4343 | Temper: | HO |
| High Light: | stock aluminum extrusion profiles,profile aluminum extrusion |
||

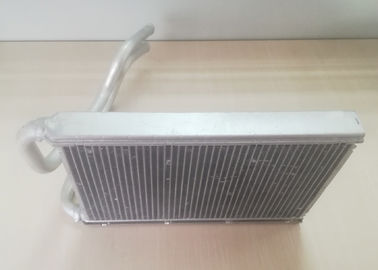

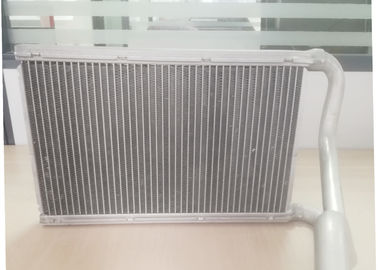

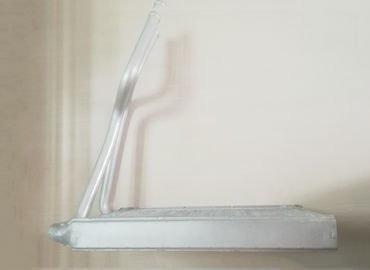

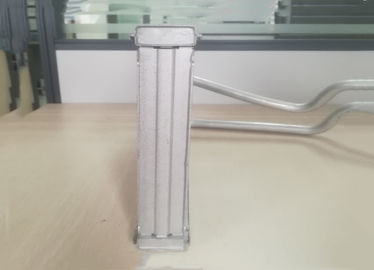

Aluminum Head or Side Sheet for Radiator of Vehicles/Car
APPLICATION:
New energy vehicles, pure electric vehicles, commercial vehicles and so on.
ALLOY STATE:
3003/4343
CHEMICAL COMPOSITION
1.Core Alloy:3003+0.5%Cu
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Bi | Zr | Ti | Al | |
| Max | 0.6 | 0.7 | 0.7 | 1.5 | - | 0.05 | 0.10 | 0.05 | - | - | Rem | |
| Min | - | - | 0.3 | 1.0 | - | - | - | - | - | - | - | |
2.Clad 1 Alloy:4343
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Bi | Zr | Ti | Al | |
| Max | 8.2 | 0.8 | 0.25 | 0.10 | - | 0.05 | 0.20 | 0.05 | - | - | Rem | |
| Min | 6.8 | - | - | - | - | - | - | - | - | - | - | |
MECHANICAL PROPERTIES ETC.
| Properties | Yield Strength Rp0.2(MPa) | Tensile Strength Rm(MPa) | Elongation A50(%) | Clad 1 ratio(%) | Clad 2 ratio(%) |
| Max | - | 150 | - | 7 | - |
| Min | 45 | 120 | 20 | 5 | - |
Commercial terms
| Minimum Order Quantity: | 5 metric tons |
| Price: | negotiation |
| Payment Terms: | T/T or LC |
| Supply Ability: | 50,000 mt per year |
| Delivery Time: | 30 working days after received your down payment |
| Packaging Details: | Standard export packaging |
