Highly Efficient Brazing Aluminum Radiator Tube Precision Cutting ASTM

Products

Aluminum Air Battery

sales4@trumony.com

+86 18018119117

Contact Now

Highly Efficient Brazing Aluminum Radiator Tube Precision Cutting ASTM

MOQ:	5 tons
Price:	Negotiable
Standard Packaging:	Standard Export Packaging
Delivery Period:	20~35 workdays
Payment Method:	L/C, T/T
Supply Capacity:	50, 000 Mt Per Year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001, ASTM, JIS, GB, EN, ASTMB

Model Number

4343 / 3003 / 7072

Alloy:

A3003 , A4343 , A7072

Temper:

O / H14 / H24 / H16 / H18 / H24

Thickness:

According To The Customers' Requirement

Width:

According To The Customers' Requirement

Treatment:

Mill Finish

Sample:

According To The Customers' Requirement

According To The Customers' Requirement

Usage:

Radiator /Condensor/Evaprator

Color:

Alloy / Silver

HS Code:

Highlight:

round aluminum tubing

oval aluminum tubing

Product Description

Highly Efficient Brazing Aluminum Radiator Tube Precision Cutting ASTM

Detailed Product Description

Color:	Silver	Surface Treatment:	Mill Finish
Transport Package:	Standard Export Packaging	Temper:	O-H112
Alloy Or Not:	Alloy	Application:	Heat Exchangers
Shape:	Tube	Specification:	1050/1100/3102/3003

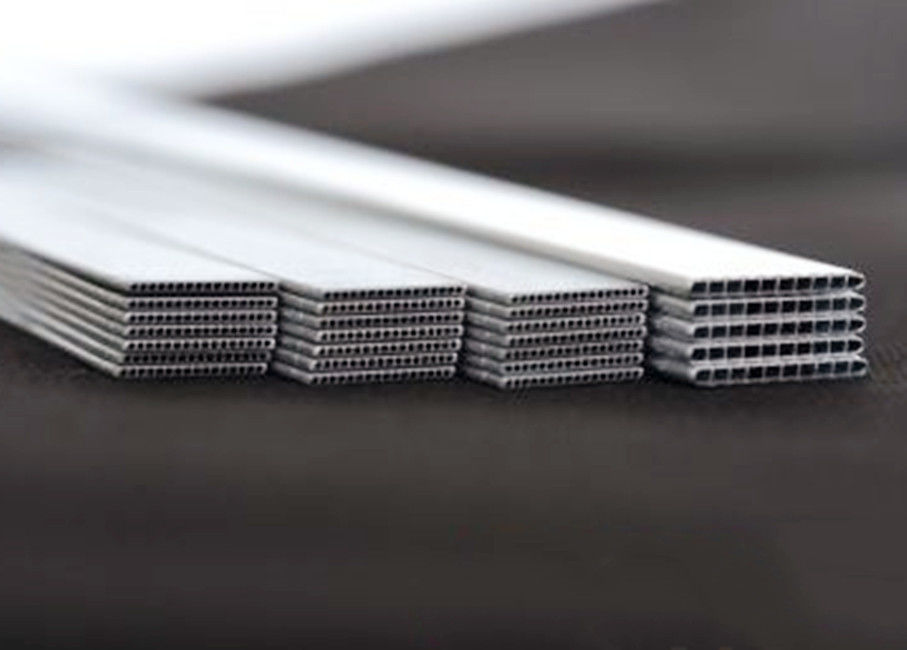

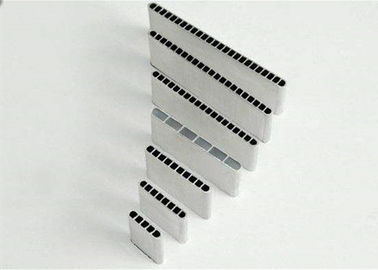

1100/3102/3003 Micro-multiport Flat Extrusion Aluminum Tube

Product Introduction:
Micro Multiport Extruded Aluminium Tube,is a kind of thin porous flat tubular material,which is treated by surface spraying zinc,using refining aluminum bar by hot extrusion.It is mainly used for the production of heat exchangers. Due to its high corrosion-resistance and good heat conductivity, MPE tube is particularly well suited for the use in evaporators and condensers.

Commonly used material chemical composition

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05

Supply state and mechanical properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥20MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥20MPa	≥25%

The corrosion resistance performance
Salt spray test ≥750hours

The pressure resistance performance

Automobile Condensers	Household Condensers	Evaporators
≥9MPa	≥13.5 MPa	≥3.5 MPa

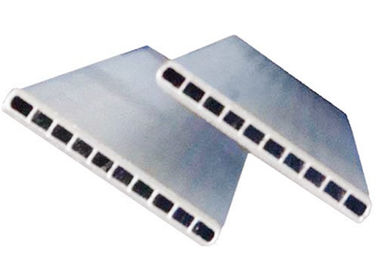

Multiport Extruded Aluminum Tube(MPE)

which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following characteristics:
1. Low weight
2. Good thermal and electricity conductivity
3. Excellent corrosion resistance
4. High cycle reuse value
5. High surface quality
6. Narrow tolerance range

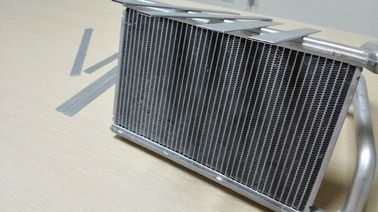

Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater cores

Package: In coil or Straight with fixed length.
Surface Treatment : With Zinc spraying or without Zinc spraying.

Terms and conditions:
1, Trade term: CIF / CFR / FOB
2, Payment term: 30% before production+70% before shipment
100% Irrevocable L/C at sight
Or we can further cummunicate with each other about this part.
3, Shipment: Normally it is about 30-35days.I
4, MOQ: 5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
5, Quantity tolerance: +/-10% of total quantity as confirmed PI.

Commercial terms

Minimum Order Quantity:	5 metric tons
Price:	negotiation
Payment Terms:	T/T or LC
Supply Ability:	50,000 mt per year
Delivery Time:	30 working days after received your down payment
Packaging Details:	Standard export packaging

Highly Efficient Brazing Aluminum Radiator Tube Precision Cutting ASTM 0
