Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner

Name: Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner
Brand: Trumony Aluminum Limited
SKU: customizable
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Trumony

Certification: CE/RoHS/GS/ISO9001

Model Number: customizable

Trading Properties

Minimum Order Quantity: 5 tons

Supply Ability: 50, 000 Mt Per Year

stock aluminum extrusion profiles

profile aluminum extrusion

Specifications

Color:	Silver	Shape:	Tube
Grade:	1000 Or 3000 Series	Specification:	According To Customers' Requests
Alloy states:	1050, 1100, 1197, 3102, 3r03	Surface Treatment:	Mill Finish
Temper:	O/F/H111/H112
High Light:	extruded aluminum profiles , profile aluminum extrusion

Product Description

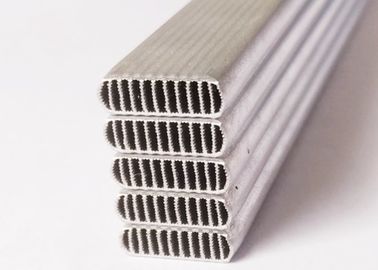

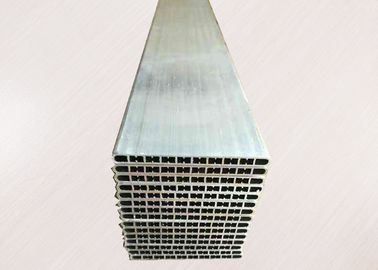

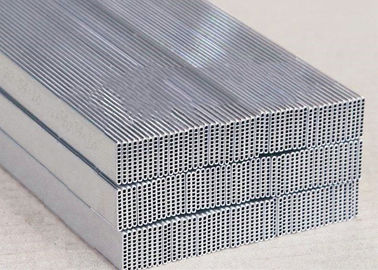

Micro multi-port tube is applied not only in car air conditioner but also in the field of commercial, household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler.

1. Chemical Composition

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤ 0.25	≤ 0.40	≤ 0.05	≤ 0.05	≤ 0.05	-	≤ 0.05	≤ 0.05	≤ 0.03
2	1100	≤ 0.95(Fe+Si)		0.05-0.20	≤ 0.05	-	-	≤ 0.10	-	-
3	1197	≤ 0.15	≤ 0.20	0.40-0.55	0.10-0.20	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
4	3102	≤ 0.40	≤ 0.70	≤ 0.10	0.05-0.40	-	-	≤ 0.30	-	≤ 0.10
5	3R03	≤ 0.15	≤ 0.15	≤ 0.01	0.90-1.10	≤ 0.03	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05

2. Mechanical Properties

No.	Alloy	Temper	Tensile Strength(Mpa)	Yield Strength(Mpa)	Elogation(%)
1	1050	O/F/H111/H112	≥ 65	≥ 20	≥ 25
2	1100	O/F/H111/H112	≥ 75	≥ 20	≥ 25
3	1197	O/F/H111/H112	≥ 80	≥ 25	≥ 20
4	3102	O/F/H111/H112	≥ 75	≥ 20	≥ 25
5	3R03	O/F/H111/H112	≥ 80	≥ 25	≥ 20

3. Size Tolerance

Width	Thickness	Wall Thickness	Length	Lateral Curvature	Frontal Curvature	Twsiting Dgree
± 0.05mm	± 0.03mm	± 0.05mm	± 0.03mm	≤ L× 0.2%	≤ L× 0.25%	≤ L× 0.15%

4. Corrosion Resistance
Salt spray test: ≥ 750 hours
5. Zn Coating Standards
6/8/10/13± 2g/square meter
6. Flux Cotaing Standards
10-15± 2g/square meter

Micro Multiport Extrusion Aluminum Tube Aluminium Extruded Profiles For Air Conditioner 0
