Micro Multiport Tube Aluminium Extruded Profiles For Air Conditioning Heat Exchangers

MOQ:	5 tons
Standard Packaging:	Standard Export Packaging
Delivery Period:	according to specification and quantity
Supply Capacity:	50, 000 Mt Per Year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

CE/RoHS/GS/ISO9001

Model Number

customizable

Color:

Silver

Shape:

Grade:

3000 Series

Specification:

According To Customers' Requests

Alloy States:

1050, 1100, 1197, 3102, 3r03

Surface Treatment:

Mill Finish

Temper:

O-H112

Process:

Hot Extrude

Highlight:

extruded aluminum profiles

profile aluminum extrusion

Product Description

Micro Multiport Tube Aluminium Extruded Profiles For Air Conditioning Heat Exchangers

Micro-multiport tube is the high-tech aluminum products under the process of hot extrusion from refined aluminum ingot and then zinc spraying for anti-corrosion.

Micro-multiport tube is the core materials of new generation parallel flow air conditioning heat exchangers. It is outstanding in enviromental-friendly, efficient, energy-saving and cost reduction and was approved vividly in automobile air conditioning system. With restriction and prohibition of the application of the traditional refrigerant, it is a trend that household and commerical air conditioning heat exchanger needs revolution.

Chemical Composition
No	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
01	1050	≤ 0.25	≤ 0.40	≤ 0.05	≤ 0.05	≤ 0.05	---	≤ 0.05	≤ 0.05	≤ 0.03
02	1100	≤ 0.95(Si+Fe)		0.05-0.20	≤ 0.05	---	---	≤ 0.10	---	---
03	1197	≤ 0.15	≤ 0.20	0.40-0.55	0.10-0.20	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
04	3102	≤ 0.40	≤ 0.70	≤ 0.10	0.05-0.40	---	---	≤ 0.30	---	≤ 0.10
05	3R03	≤ 0.15	≤ 0.15	≤ 0.01	0.90-1.10	≤ 0.03	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05

Mechanical Properties
No	Alloy	Temper	Tensile strength	Yield strength	Elongation
01	1050	O/F/H111/H112	≥ 65	≥ 20	≥ 25
02	1100	O/F/H111/H112	≥ 75	≥ 20	≥ 25
03	1197	O/F/H111/H112	≥ 80	≥ 25	≥ 20
04	3102	O/F/H111/H112	≥ 75	≥ 20	≥ 25
05	3R03	O/F/H111/H112	≥ 80	≥ 25	≥ 20

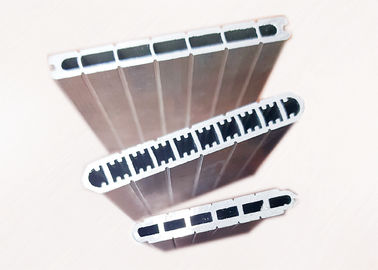

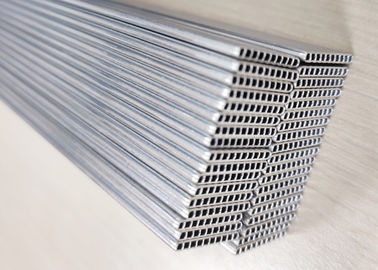

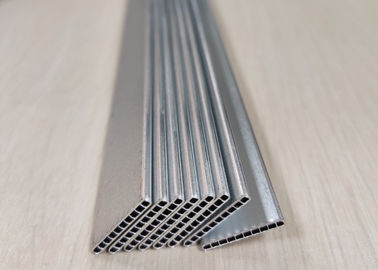

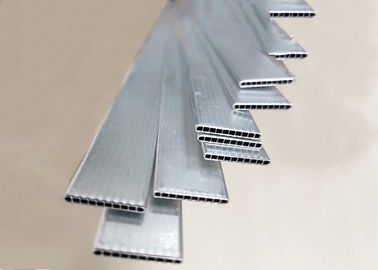

Micro Multiport Tube Aluminium Extruded Profiles For Air Conditioning Heat Exchangers 0

Micro Multiport Tube Aluminium Extruded Profiles For Air Conditioning Heat Exchangers 1
