Mill Finished High Frequency Welded Aluminum Tube 3000 Series For Intercooler

Name: Mill Finished High Frequency Welded Aluminum Tube 3000 Series For Intercooler
Brand: Trumony Aluminum Limited
SKU: customizable
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Trumony

Certification: CE/RoHS/GS/ISO9001

Model Number: customizable

Trading Properties

Minimum Order Quantity: 5 tons

Supply Ability: 50, 000 Mt Per Year

stock aluminum extrusion profiles

profile aluminum extrusion

Specifications

Color:	Silver	Shape:	Tube
Grade:	3000 Series	Alloy states:	3003, 4343/3003/7072, 4343/3003/4343
Surface Treatment:	Mill Finish	Temper:	H14, H24
High Light:	stock aluminum extrusion profiles , profile aluminum extrusion

Product Description

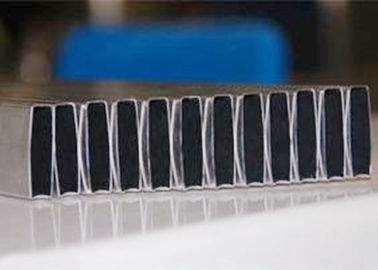

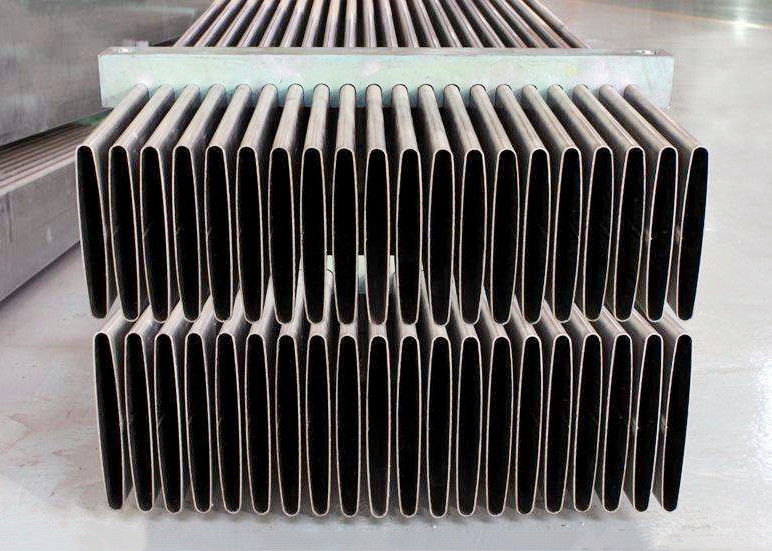

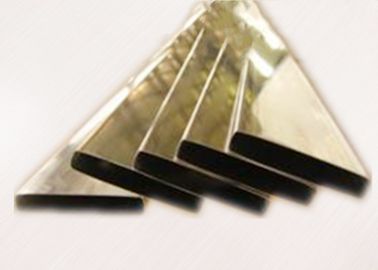

This kind of high frequency welded aluminum tube are widely used for Intercooler.

Radiator,Water Tank etc.also widely use this kind of tube.

Alloy: 3003, 4343/3003/7072, 4343/3003/4343
Size: 16/18/22/26/32/36.6/50/50/62/64mm for width
Thickness: 2/2/2/2/2/10.1/8.08/10.1/10.1/8.08mm
Wall thickness is usually 0.28-0.38mm, 0.38-0.5mm.
Temper: H14, H24

At present we can supply:

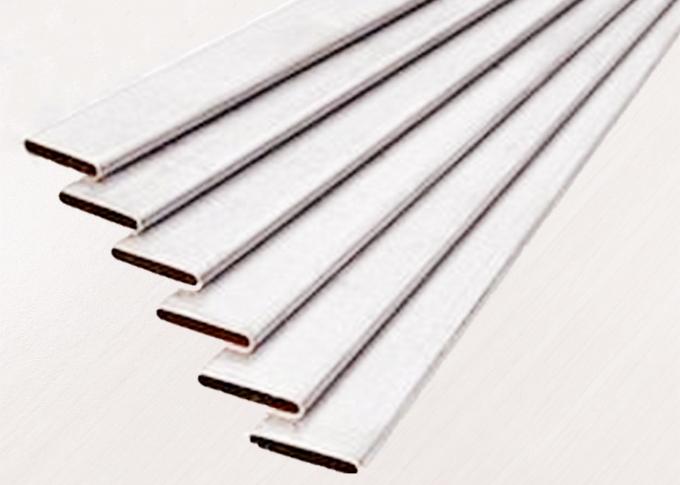

Aluminum Radiator tubes
Specification(mm)	Length
16 * 1.5 * 0.30 (newly developed)	available from 100mm to 8000mm
16 * 1.4 * 0.30 (newly developed)
40 * 2.0 * 0.30
16 * 2.0 * 0.26
16 * 2.0 * 0.28
16 * 2.0 * 0.30
18 * 2.0 * 0.30
22 * 2.0 * 0.30
22.5 * 1.5 * 0.30
26 * 2.0 * 0.30
26 * 2.0 * 0.32
32 * 2.0 * 0.30
32 * 2.0 * 0.32
32 * 2.0 * 0.35
