Product Details:
|
Tpye: | Plate | Material: | Aluminum |
---|---|---|---|
Package: | Export Worthy Packing | Alloy: | 4343/3003/4343 |
Temper: | O/H14/H24/H16/H18/H24 | Name: | Flexible Battery Pack Aluminum Radiator Parts Extrusion Micro Channel Pipe |
Application: | Excavator,furniture,Auto /medical/agricultural/train/valve/textile,machine And AUTO | Tolerance: | Customized |
Highlight: | aluminum radiator parts,aluminum car radiator |

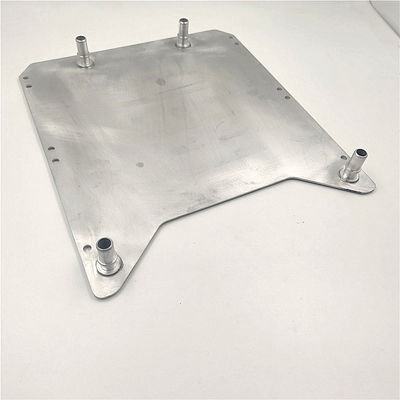

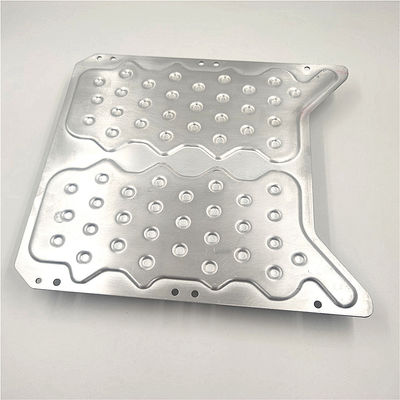

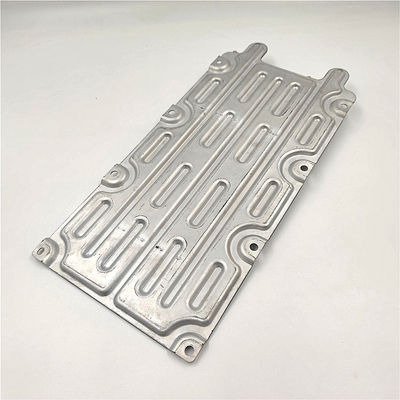

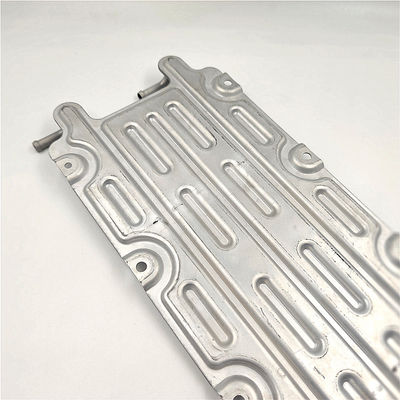

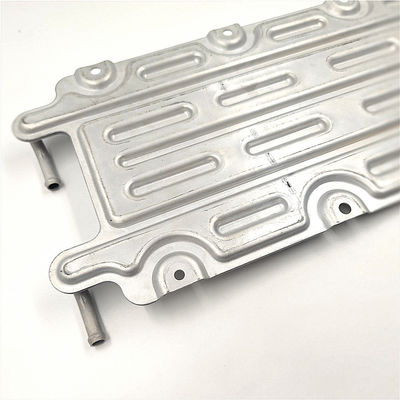

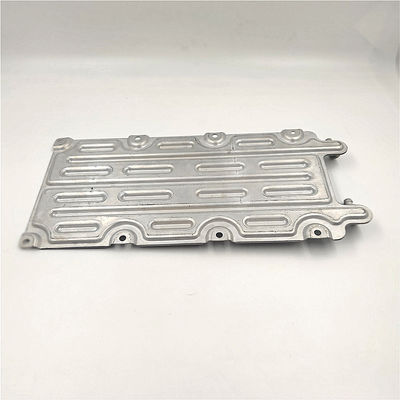

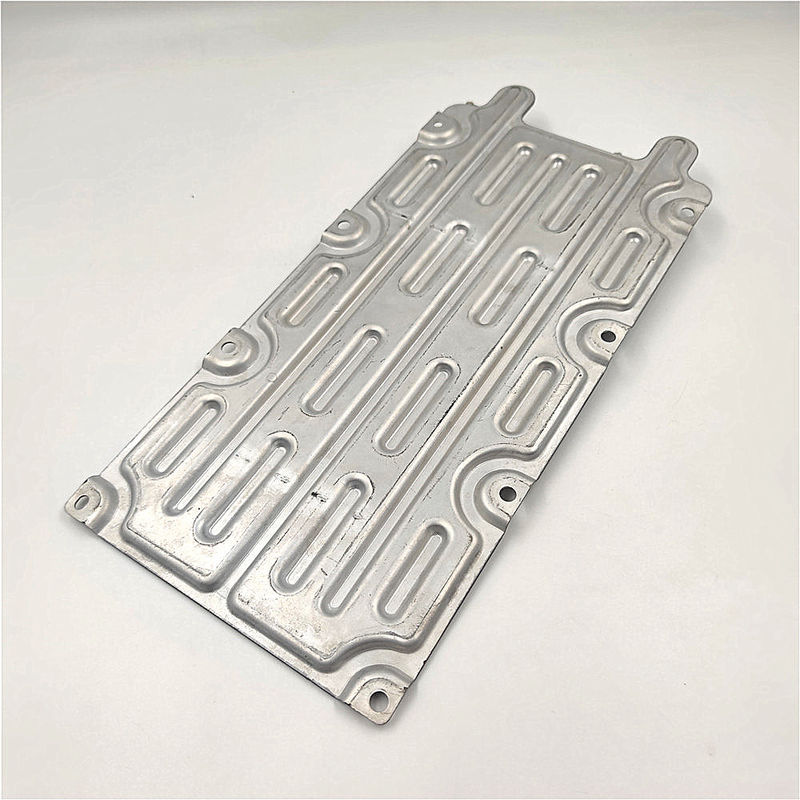

Customized Aluminum Spare Parts Auto Water Cool Plate For New Energy Cars
OD | OD Tolerance | ID Tolerance | Roundness | straightness | Circular run-out |
φ16-20 | ±0.02 | ±0.02 | 0.01↓ | 0.015↓ | 0.05↓ |
φ20-30 | ±0.02 | ±0.02 | 0.01↓ | 0.015↓ | 0.05↓ |
φ30-50 | ±0.05 | ±0.05 | 0.02↓ | 0.020↓ | 0.08↓ |
φ50-80 | ±0.15 | ±0.10 | 0.05↓ | 0.025↓ | 0.10↓ |
1,Specification: we can do various size per customer's requirements
2,Alloy Code: 3000, 6000 and other series aluminum alloy
3,Suface treatment: anodizing ,polishing, turning ,power coating, mill finish etc
4,Design: OEM, ODM, or we ourselves can also provide design service
5,Equipment: CNC, extruding machine, cold drawn machine, heating oven, straigtening machine,
cutting machine
6,Team Support: Professional design team, technology team and sales team
FAQ
Q: Are you a trading company or manufacturer?
A:Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.
Q:OEM/ODM available?
A:Yes,we can!
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
Feature
The luster is luminous
High efficient heat transfer, good temperature control
Non-toxic, odorless, impermeable
Compact structure light and economical
Withstand high heat and extreme cold
Minimize cleanup and ensure food fresh
Environment friendly, recoverable and recyclable
High reliability and exchanging heat low noise
Advantages:
All parts is self manufacturing, we have price advantage.
Since 2004, we have rich experience in this industry in China;
We start our productions from aluminum ingot, so we can control the quality as well
Sample order is acceptable
Strong and efficient international sales service
Good experience and cooperation with big client in the world
With Certificate TS16949, ISO9001-2008
Factory direct and on time delivery
Reply within 24 hours
Our chemical composition:
Alloy | Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.1 | 0.05 | 0.08 | 1 |
Our mechanical property:
Alloy Code | temper | Tensile Strength | Yield Strength Rp0.2(Mpa) | Extend Ratio |
Rm(MPa) | A50(%) | |||
8011 | O | 60-100 | ≥45 | ≥4 |
Mechanical property | ||||
Alloy Code | Temper | Tensile Strength Rm(Mpa) |
Yield Strength (Mpa) |
Elongation(%) |
TR-010,TR-020,TR-030,TR-040, TR-050,TR-110,TR-310,TR-116, TR-316,TR-111,TR-313,TR-121, TR-131,TR-141,TR-150,TR-151, TR-156Etc. |
O | 95-135* | ≥35* | ≥15* |
H14 | 140-185 | ≥125 | ≥1.5 | |
H24 | 140-185 | ≥125 | ≥3 | |
H16 | 185-225 | 160 | ≥1 | |
H18 | ≥185 | —— | ≥0.5 | |
TR-166Etc. Tube material | H24 | 185-235 | ≥150 | ≥8 |
TR-116,TR-316 Etc.tube material | H14 | 140-185 | ≥125 | ≥3 |
H24 | 140-185 | ≥125 | ≥8 |
Mechanical Properties | |||||
No | Alloy | Temper | Tensile strength |
Yield strength |
Elongation |
1 | 1050 | O/F/H111/H112 | ≥ 65 | ≥ 20 | ≥ 25 |
2 | 1100 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
3 | 1197 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
4 | 3102 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
5 | 3R03 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
Chemical Composition | ||||||||||
No | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
1 | 1050 | ≤ 0.25 | ≤ 0.40 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | --- | ≤ 0.05 | ≤ 0.05 | ≤ 0.03 |
2 | 1100 | ≤ 0.95(Si+Fe) | 0.05-0.20 | ≤ 0.05 | --- | --- | ≤ 0.10 | --- | --- | |
3 | 1197 | ≤ 0.15 | ≤ 0.20 | 0.40-0.55 | 0.10-0.20 | ≤ 0.03 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
4 | 3102 | ≤ 0.40 | ≤ 0.70 | ≤ 0.10 | 0.05-0.40 | --- | --- | ≤ 0.30 | --- | ≤ 0.10 |
5 | 3R03 | ≤ 0.15 | ≤ 0.15 | ≤ 0.01 | 0.90-1.10 | ≤ 0.03 | ≤ 0.03 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
