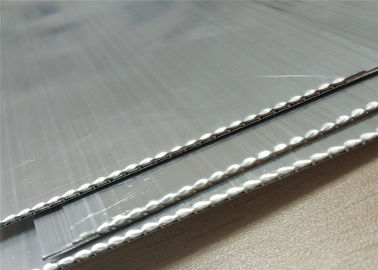

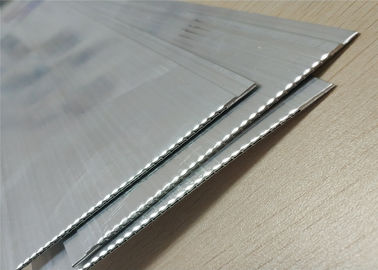

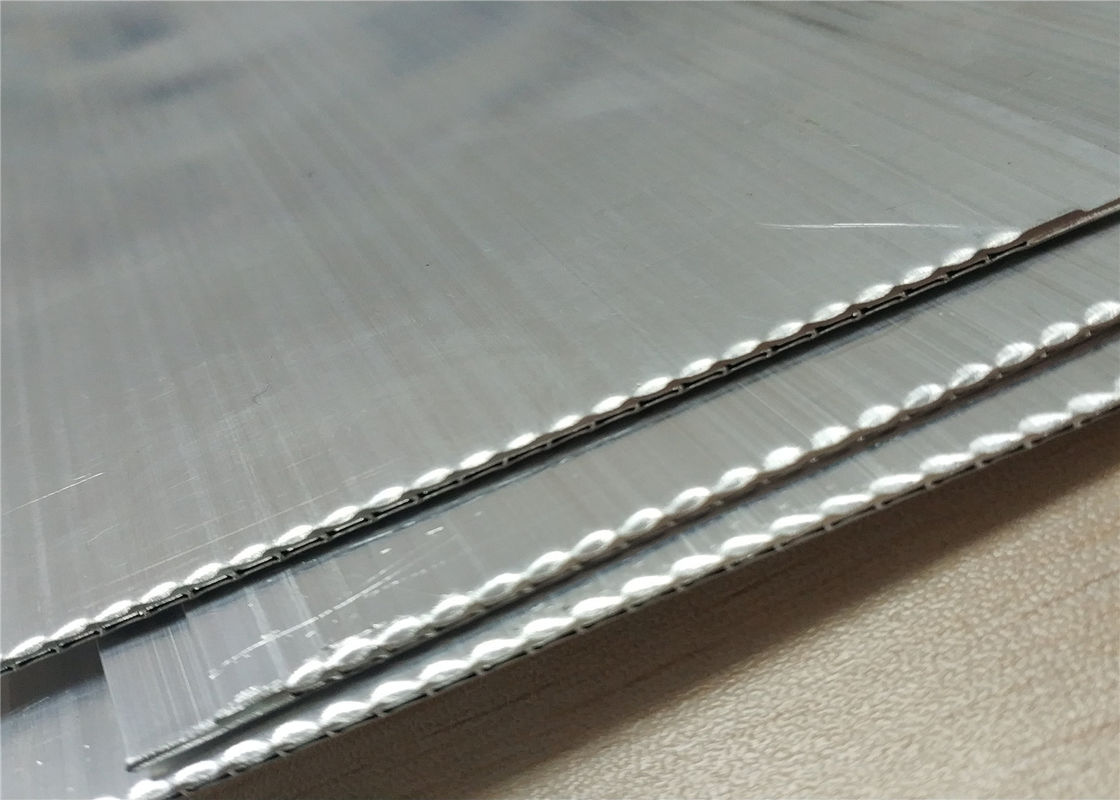

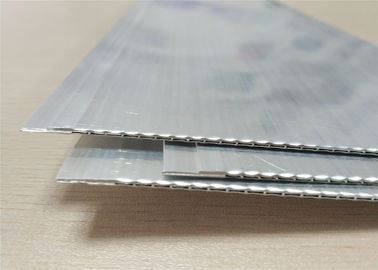

Auto Flexible Battery Heat Transfer Aluminum Condenser Tube Export Worthy Packing

Basic Properties
Place of Origin: China
Brand Name: Trumony
Certification: CE,ISO,RoHS,UL
Model Number: TR-563
Trading Properties
Minimum Order Quantity: 5Ton
Price: US Dollar+2500+Ton
Payment Terms: L/C, T/T
Supply Ability: 10000000kg/Year
Tags

round aluminum tubing

aluminium alloy tube

oval aluminum tubing
Specifications
Tpye: Plate Material: Aluminum
Package: Export Worthy Packing Alloy: 4343/3003/4343
Temper: O/H14/H24/H16/H18/H24 name: Flexible Battery Pack Aluminum Radiator Parts Extrusion Micro Channel Pipe
Cnc machining or not: CNC Machining Application: Excavator,furniture,Auto /medical/agricultural/train/valve/textile,machine And AUTO
High Light:

round aluminum tubing

,

oval aluminum tubing
Product Description

The micro-channel tube also called The Multi-Port Extrusion (MPE)- is a highly refined quality product characterized by the following properties:
1. Low energy costs
2. High performance
3. Low space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution
7. Low refrigerant fill



Application:

Condensers
Evaporators
Oil coolers
Radiators
Heater cores



Our advantage

Since 2004, we have rich experience in this industry in China;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
We have our own development department for new material research;
All parts of ladder is self manufacturing, we have price advantage.
Good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Sample order is acceptable
High performance cost ratio;
Fast delivery time;
Good communication skills, and good service and understandings for customers





CHEMICAL COMPOSITION (%)
Item Si Fe Cu Mn Mg Zn Cr Ti The rest Al
Single In total
Demand (%) Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Allowance
/ 0.4 / 0.7 / 0.1 0.05 0.4 / / / 0.3 / / / 0.1 / / / /
Test result 0.079 0.244 0.001 0.392 0.001 0.008 0.0005 0.009 / / Allowance



Mechanical property
Alloy Code Temper Tensile Strength
Rm(Mpa)		 Yield Strength
(Mpa)		 Elongation(%)
TR-010,TR-020,TR-030,TR-040,
TR-050,TR-110,TR-310,TR-116,
TR-316,TR-111,TR-313,TR-121,
TR-131,TR-141,TR-150,TR-151,
TR-156Etc.		 O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3
H16 185-225 160 ≥1
H18 ≥185 —— ≥0.5
TR-166Etc. Tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8
