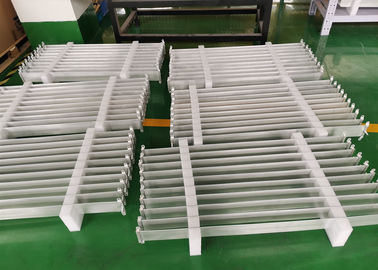

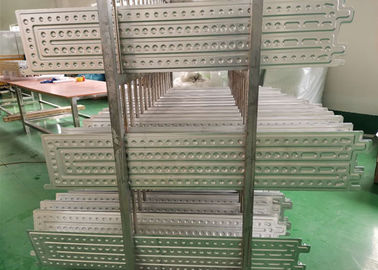

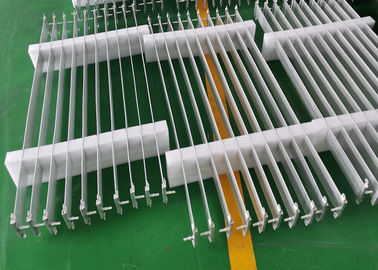

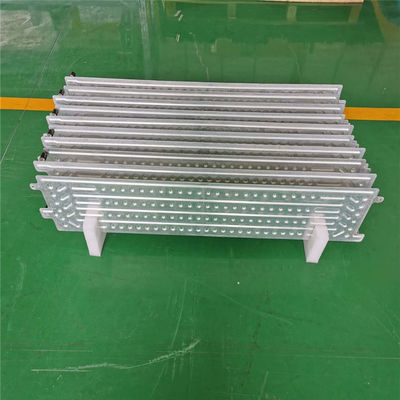

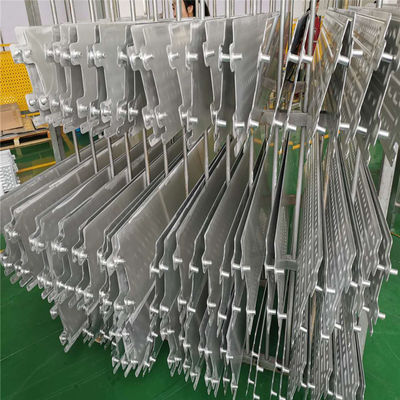

Brazing Cold Water Sheet Aluminium Auto Parts For Heat Sink Of Electrical Vehicle
| Color: | Silver, Gold, Blue, Red Etc | Surface: | Mill Finish |
| Use place: | Heat Exchange, Heat Sink For Water Cooling, Battery Cooling | Temper: | H14,H24, H32 Etc |
| Packing: | Carton Or Wooden Box | Thickness: | 1-3mm |
| Size: | Customerized | ||
| High Light: | aluminum auto parts,aluminum radiator parts |
||
3003 Brazing Cold Water Sheet for Heat Sink of Electrical Vehicle designer
1. Description of our production
Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger
1) Core Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.1 | 0.05 | 0.03 | 1 |
| 3003+1%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.5-1.50 | 0.05 | 0.05 | 2 |
| 3003+1.5%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 1.0-2.0 | 0.05 | 0.05 | 3 |
| 3003+1.5%Zn+Zr | 0.5-1.0 | 0.7 | 0.05-0.20 | 1.0-1.6 | － | 1.0-2.0 | 0.05-0.2 | - | 4 |
| 3003+0.5%Cu | 0.6 | 0.7 | 0.30-0.70 | 1.0-1.5 | － | 0.10 | 0.05 | 0.1 | 5 |
| 3005 | 0.6 | 0.7 | 0.20-0.40 | 1.0-1.5 | 0.20-0.60 | 0.25 | － | 0.01 | 6 |
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.2 | － | 0.05 | 1 |
| 4343+1%Zn | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.5-1.5 | － | 0.05 | 2 |
| 4045 | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.2 | － | 0.2 | 3 |
| 4045+1%Zn | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.5-1.5 | － | 0.2 | 4 |
| 4004 | 9.0-10.5 | 0.8 | 0.25 | 0.1 | 1.0-2.0 | 0.2 | － | 0.2 | 5 |
| 7072 | 0.7 | 0.1 | 0.1 | 0.1 | 0.8-1.3 | － | － | 6 | |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.5-1.0 | － | 0.03 | 7 |
2) Main mechanical of aluminum alloy and composite-material for welding heat exchanger
| Alloy Code | temper | Tensile Strength Rm(MPa) | Yield Strength Rp0.2(Mpa) | Extend Ratio A50(%) |
| TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3.0 | |
| H16 | 185-225 | ≥160 | ≥1.0 | |
| H18 | ≥185 | - | ≥0.5 | |
| TR-166 Etc.tube material | H24 | 185-235 | ≥150 | ≥8 |
| TR-116,TR-316 Etc.tube material | H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 |
2.Our advantage of 4343 Brazed cold water sheet for heat sink of electrical vehicle:
1. Since 2006, we have rich experience in this aluminum heat exchange industry in China;
2. Good reputation in household and industrial aluminum spare parts areas;
3. We start our productions from aluminum ingot,so we can control the quality as well;
4. Design ability: We have design team to achieve your idea or give you suggestion
5. Price advantage.
6. Good experience and cooperation with big clients in the world;
7. With Certificate ISO9001-2008;
8. Sample order is acceptable
9. High performance cost ratio;
10.Fast delivery time and fast resolve problem attitude.
3.Terms and conditions:
1, Trade term: CIF / CFR / FOB
2, Payment term: 30% before production+70% before shipment;
100% Irrevocable L/C at sight
Or we can further cummunicate with each other about this part.
3, Shipment: Normally it is about 15-35days.
