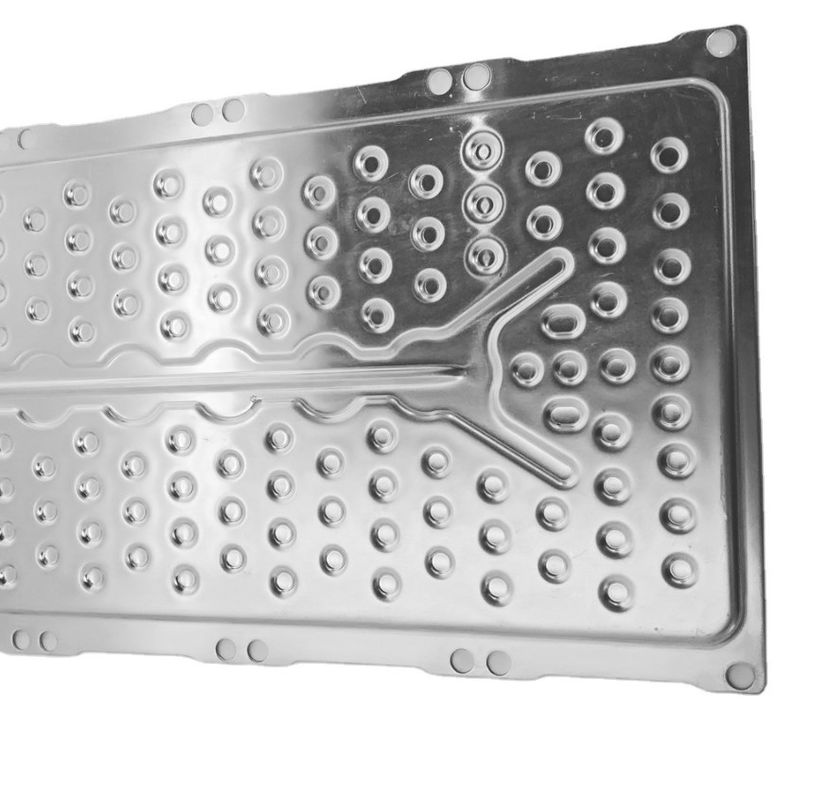

Electrical Vehicle battery cooling Brazing Aluminum Liquid Cooling Sheet

MOQ:	10pcs
Price:	USD 10-100/pc
Standard Packaging:	Standard export packaging like carton/ wooden box
Delivery Period:	15-30 working days after received your advance payment
Payment Method:	T/T, L/C, Western Union
Supply Capacity:	500,000 mt per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

TS16949 , ISO14001 and OHSAS 18001

Model Number

TR-J004

Color:

Silver Etc

Surface:

Mill Finish

Application:

Heat Exchange, Heat Sink For Water Cooling, Battery Cooling

Temper:

O, H Etc

Packing:

Carton Or Wooden Box

Thickness:

1-3mm

Size:

Customized

Technical:

Brazing Or Extrusion

Alloy:

4343 Or 3003

Highlight:

aluminum auto parts

aluminum radiator parts

Product Description

Electrical Vehicle Battery Cooling Brazing Aluminum Liquid Cooling Sheet

1. Description of our production:
Cold stamping - cleaning - spray flux - fixture clamp the product into the brazing furnace - brazing furnace after more than a dozen procedures (automatic heating/insulation/cooling/welding, etc.) - do full inspection of air tightness test - cleaning (mainly for welding cleaning, polishing, drying), a total of more than 20 procedures
1) Cladding Material:

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
3003	0.6	0.7	0.05-0.20	1.0-1.5	－	0.1	0.05	0.03	1
3003+1%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	0.5-1.50	0.05	0.05	2
3003+1.5%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	1.0-2.0	0.05	0.05	3
3003+1.5%Zn+Zr	0.5-1.0	0.7	0.05-0.20	1.0-1.6	－	1.0-2.0	0.05-0.2	-	4
3003+0.5%Cu	0.6	0.7	0.30-0.70	1.0-1.5	－	0.10	0.05	0.1	5
3005	0.6	0.7	0.20-0.40	1.0-1.5	0.20-0.60	0.25	－	0.01	6

Core Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
4343	6.8-8.2	0.8	0.25	0.1	－	0.2	－	0.05	1
4343+1%Zn	6.8-8.2	0.8	0.25	0.1	－	0.5-1.5	－	0.05	2
4045	9.0-11.0	0.8	0.3	0.05	－	0.2	－	0.2	3
4045+1%Zn	9.0-11.0	0.8	0.3	0.05	－	0.5-1.5	－	0.2	4
4004	9.0-10.5	0.8	0.25	0.1	1.0-2.0	0.2	－	0.2	5

2) Main mechanical of aluminum alloy

Alloy Code	temper	Tensile Strength Rm(MPa)	Yield Strength Rp_0.2(Mpa)	Extend Ratio A₅₀(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3.0
	H16	185-225	≥160	≥1.0
	H18	≥185	-	≥0.5
TR-166 Etc.tube material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.tube material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.tube material	H24	140-185	≥125	≥8

2.Our advantage of 3003 aluminum cooling sheet for battery heat sink of electrical vehicle:
1. Since 2006, we have rich experience in this aluminum heat exchange industry in China, and have attended many electrical vehicle develop progrems, can reduce your develop time;
2. Good reputation in aluminum water cooling area;
3. Design ability: We have design team to achieve your idea or give you suggestion
4. Price advantage.
5. Good experience and cooperation with big clients in the world;
6. With Certificate ISO9001-2008;
7. Sample order is acceptable
8. High performance cost ratio;
9.Fast delivery time, good resolve problem attitude.
3.Terms and conditions:
1, Trade term: CIF / CFR / FOB / EXW
2, Payment term: 30% advance payment+70% before shipment;
100% Irrevocable L/C at sight
Or we can further cummunicate with each other about this part.
3, Delivery: Normally 15-35 days.
