Product Details:
|
| Alloy: | 5083/5182/5454 | Temper: | HO/H111/H112 |
|---|---|---|---|
| Thickness: | 3.0-20mm | Width: | 1000-2800mm |
| Length: | 2000-12600mm | Application: | Automobile Manufacturing |
| High Light: | alloy sheet metal,flat aluminum sheets |
||
Product name: 5083 Extra Wide Extra Long Tank Truck Aluminium Alloy Plate

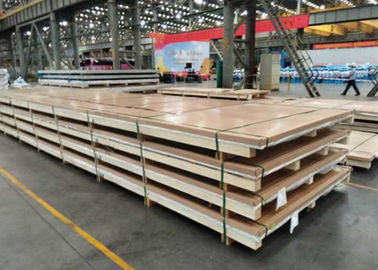

We are supplying the aluminum alloy sheet for automobile manufacturing,the regular alloy are 5083,5182,5454 etc.The width of the aluminum alloy sheet can reach 2800mm,and length can reach 12600mm.The aluminum alloy sheet is the first selection of designers used in tank truck plate,refrigerator plate,container board,square cabin body panel,car door,fender,floor,body frame,covering parts,etc.
Specifications:
Alloy: 5083,5182,5454
Temper:HO,H111,H112
Size:Thickness(3.0-20mm);Width(1000-2800mm);Length(2000-12600mm)
Chemical composition:
| ALLOY NO. | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | OTHER | AL |
| 5454 | 0.25 | 0.4 | 0.1 | 0.5-1.0 | 2.4-3.0 | 0.05-0.20 | 0.25 | 0.20 | Remainder | |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | Remainder | |
| 5182 | 0.2 | 0.35 | 0.15 | 0.2-0.5 | 4.0-5.0 | 0.1 | 0.25 | 0.1 |
Product Features:
Large scale,moderate strength,high surface,high dimensional accuracy,anti-corrosion,easy to welding,easy forming,without low temperature brittleness,and recyclable.
Technical parameter:
| Typical alloy: | 5083 |
| Temper: |
HO,H111,H112 |
| Thickness(mm): | 3.0-20mm |
| Width(mm): | 1000-2800mm |
| Length(mm): | 2000-12600mm |
| Application: | Automobile manufacturing |
Mechanical properties:
| Alloy | Temper | Yield strength | Tensile strength | Elongation |
| 5183 | H112 | 125 MPa min. | 275MPa min. | 12% min. |
| 5182 | HO/H111 | 110MPa min. | 255-315MPa min. | 16% min. |
| 5454 | H112 | 125MPa min. | 220MPa min. | 8% min. |
Terms and conditions:
Trade term:CIF / CFR / FOB
Payment term:30% before production+70% before shipment;or 100% Irrevocable L/C at sight;Or we can further cummunicate with each other about this part.
Shipment:Normally it is about 30-35days
MOQ:5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
Quantity tolerance:+/-10% of total quantity as confirmed PI.
