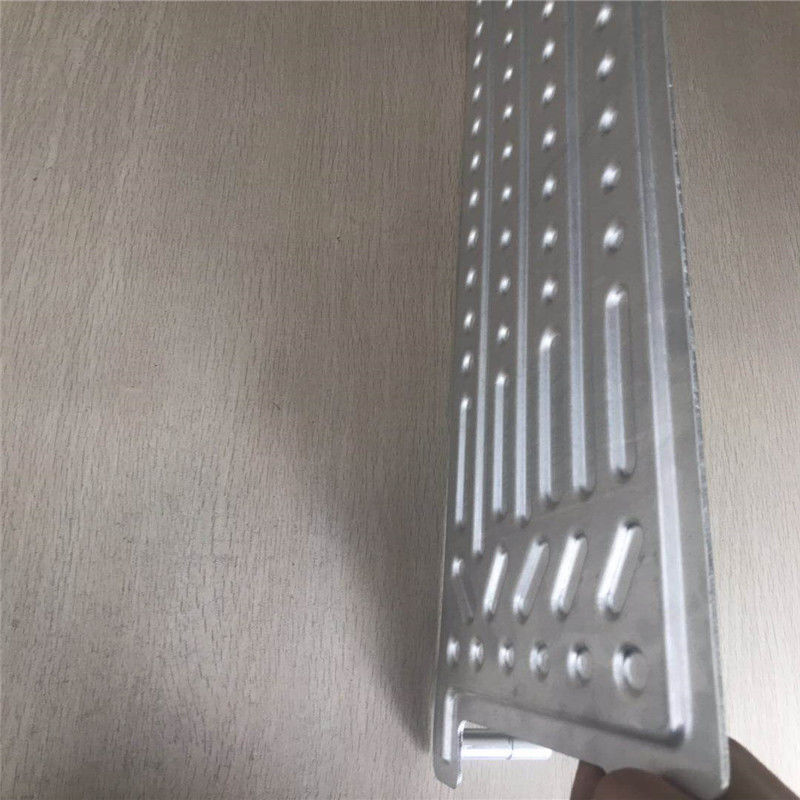

Electrical Vehicle heat exxchange use Brazing Aluminum Water cooling plate

MOQ:	10pcs
Price:	USD 10-100/pc
Standard Packaging:	Standard export packaging like carton/ wooden box
Delivery Period:	15-30 working days after received your advance payment
Payment Method:	T/T, L/C, Western Union
Supply Capacity:	500,000 mt per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

TS16949 , ISO14001 and OHSAS 18001

Model Number

TR-J010

Surface Color:

Silver Color

Surface Treatment:

Mill Finish

Use Purpose:

Liquid Cooling, Battery Cooling Etc

Technical:

Brazed

Thickness:

1-4mm, Others Need Negotiate

Dimention:

According To Needs

Material:

3003, 4343 Etc

Product Description

Electrical Vehicle heat exxchange use Brazing Aluminum Water cooling plate

We offer R&D recommendation,tooling design service, design develop together with sample supply for prototype manufacturing. We have combined our supply chain with brazing technolody, extrusion technology,CNC processing, coating, welding etc, which can give our clients one stop sourcing service for short sample delivery time and mass production cost efficiency.
1. Description of our production
(1) Brazing Process:Cold stamping - cleaning - spray flux - fixture clamp the product into the brazing furnace - brazing furnace after more than a dozen (2)procedures (automatic heating/insulation/cooling/welding, etc.) - do full inspection of air tightness test - cleaning (mainly for welding cleaning, polishing, drying) a total of more than 20 procedures.
(3)Note: Brazing technical is better than blown technology. flux is powder, the official name is flux. Flux spraying is a process of pre-spraying and pre-heating. Flux is sprayed on both sides, and the flow channel is covered by flux
1) Cladding Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
3003	0.6	0.7	0.05-0.20	1.0-1.5	－	0.1	0.05	0.03	1
3003+1%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	0.5-1.50	0.05	0.05	2
3003+1.5%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	1.0-2.0	0.05	0.05	3
3003+1.5%Zn+Zr	0.5-1.0	0.7	0.05-0.20	1.0-1.6	－	1.0-2.0	0.05-0.2	-	4
3003+0.5%Cu	0.6	0.7	0.30-0.70	1.0-1.5	－	0.10	0.05	0.1	5
3005	0.6	0.7	0.20-0.40	1.0-1.5	0.20-0.60	0.25	－	0.01	6

Core Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
4343	6.8-8.2	0.8	0.25	0.1	－	0.2	－	0.05	1
4343+1%Zn	6.8-8.2	0.8	0.25	0.1	－	0.5-1.5	－	0.05	2
4045	9.0-11.0	0.8	0.3	0.05	－	0.2	－	0.2	3
4045+1%Zn	9.0-11.0	0.8	0.3	0.05	－	0.5-1.5	－	0.2	4
4004	9.0-10.5	0.8	0.25	0.1	1.0-2.0	0.2	－	0.2	5

2) Main mechanical of aluminum alloy for welding heat exchanger system

Alloy Code	temper	Tensile Strength Rm(MPa)	Yield Strength Rp_0.2(Mpa)	Extend Ratio A₅₀(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3.0
	H16	185-225	≥160	≥1.0
	H18	≥185	-	≥0.5
TR-166 Etc.tube material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.tube material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.tube material	H24	140-185	≥125	≥8

2.Our advantage of 3003 Brazed water cooling plate for heat sink of electrical vehicle:
1. Since 2006, we have rich experience in this aluminum heat exchange industry in China;
2. Good reputation in aluminum heat exchanger areas;
3. Design develop: We have design team to achieve your idea or give you suggestion
4. Price advantage.
5. Good experience and cooperation with big clients in the world;
6. With Certificate ISO9001-2008;
7. Sample order is acceptable
8. High performance cost ratio;
9. Fast delivery time and fast resolve problem attitude.
3.Terms and conditions:
1, Trade term: CIF / CFR / FOB/ EXW
2, Payment term: 30% before production+70% before shipment; or 100% Irrevocable L/C at sight
Or we can further communicate with each other about this part.
3, Shipment time: Normally 15-35 days.
