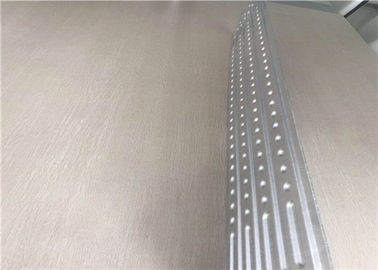

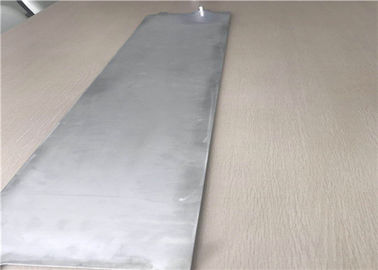

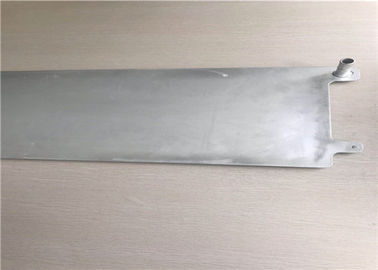

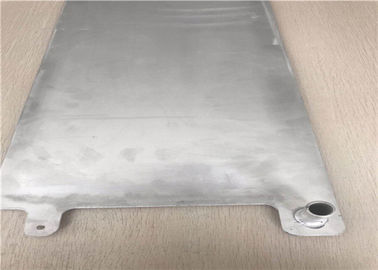

3003 Aluminum 1186x685mm Water Cooling Plate For Heat Exchanger

MOQ:	2pcs
Price:	USD 10-100/pc
Standard Packaging:	Standard export packaging like carton/ wooden box
Delivery Period:	15-30 working days after received your advance payment
Payment Method:	T/T, L/C, Western Union
Supply Capacity:	1000,000 pcs per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

TS16949 , ISO14001 and OHSAS 18001

Model Number

TR-J011

Color:

Silver Or Other Color

Surface:

Mill Finishing

Use Area:

Water Cooling, Battery Cooling Etc

Temper:

O,H Etc

Thickness:

1-5mm

Dimention:

1186x685mm,970x362mm

Material:

Aluminum Alloy

Code:

Highlight:

3003 Aluminum plate

3003 Aluminum Sheet

Product Description

3003 Aluminum Water Cooling Plate For Heat Exchanger Design Develop

1. Description
Application: Use for heat sink of new energy car, battery cooling
Technology: Brazing, CNC, Welding etc
Main production machine:Fully automatic tunnel brazing wire, machining center, oil press,
Water nozzle brazing machine, argon arc welding machine,
Ultrasonic cleaning equipment, Prespraying equipment etc
Main tesing equipment: Gas inspection equipment (water inspection),
Gas inspection equipment (dry inspection),
Press tester, Flow resistance tester, Salt spray tester
Material tension testing machine
Corrosion tester in runner, Helium leak detection equipment
1) Cladding Materials

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
3003	0.6	0.7	0.05-0.20	1.0-1.5	－	0.1	0.05	0.03	1
3003+1%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	0.5-1.50	0.05	0.05	2
3003+1.5%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	1.0-2.0	0.05	0.05	3
3003+1.5%Zn+Zr	0.5-1.0	0.7	0.05-0.20	1.0-1.6	－	1.0-2.0	0.05-0.2	-	4
3003+0.5%Cu	0.6	0.7	0.30-0.70	1.0-1.5	－	0.10	0.05	0.1	5
3005	0.6	0.7	0.20-0.40	1.0-1.5	0.20-0.60	0.25	－	0.01	6

Core Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
4343	6.8-8.2	0.8	0.25	0.1	－	0.2	－	0.05	1
4343+1%Zn	6.8-8.2	0.8	0.25	0.1	－	0.5-1.5	－	0.05	2
4045	9.0-11.0	0.8	0.3	0.05	－	0.2	－	0.2	3
4045+1%Zn	9.0-11.0	0.8	0.3	0.05	－	0.5-1.5	－	0.2	4
4004	9.0-10.5	0.8	0.25	0.1	1.0-2.0	0.2	－	0.2	5

2) Main mechanical of aluminum alloy for welding heat exchanger system

Alloy Code	temper	Tensile Strength Rm(MPa)	Yield Strength Rp_0.2(Mpa)	Extend Ratio A₅₀(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3.0
	H16	185-225	≥160	≥1.0
	H18	≥185	-	≥0.5
TR-166 Etc.tube material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.tube material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.tube material	H24	140-185	≥125	≥8

2.Our advantage of Brazing Aluminum Water Cooling Plate:
1. Since 2006, we have rich experience in this aluminum heat exchanger industry in China;
2. Good reputation at aluminum material areas;
3. Design develop: We have design team to let your idea be real product, or give you suggestion
4. Price advantage.
5. Good experience and cooperation with big clients in the world;
6. With Certificate ISO9001-2008;
7. Sample acceptable
8. High performance cost ratio;
9. Fast delivery time；10-25 days.
3.Terms and conditions:
1, Trade term: CIF / CFR / FOB/ EXW
2, Payment term: TT 30% before production+70% before shipment;
or 100% Irrevocable L/C at sight
or we can further communicate with each other about this part.
3, Shipment time: Normally it is about 15-35 days.
