6mm Thickness 3003 Brazing Aluminum Cooling Plate

Products

Aluminum Air Battery

sales4@trumony.com

+86 18018119117

Contact Now

6mm Thickness 3003 Brazing Aluminum Cooling Plate

MOQ:	10pcs
Standard Packaging:	Standard export packaging like carton/ wooden box
Delivery Period:	15-30 working days after received your advance payment
Payment Method:	T/T, L/C, Western Union
Supply Capacity:	600,000 mt per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

TS16949 , ISO14001

Model Number

TR-J011

Colour:

Silver

Surface Coating:

Mill Finish Or Anodize

Application:

Water Cooling, Vehicle Battery Cooling

Thickness:

1-6mm

Length:

Customized

Technology:

Extrusion Or Brazed

Width:

Customized

Highlight:

3003 Brazing Aluminum Cooling Plate

6mm Aluminum Cooling Plate

Anodized Aluminum Cooling Plate

Product Description

3003 Brazing New design aluminum ev cooling plate for battery cold design develop

1. Description of our production

Production Process:Cold stamping - cleaning - spray flux - fixture clamp the product into the brazing furnace - brazing furnace after more than a dozen procedures (like automatic heating/ insulation/ cooling/ welding etc.) - do full inspection of air tightness test - cleaning (mainly for welding cleaning, polishing, drying) etc, which total more than 20 procedures

1) Cladding Material of aluminum alloy

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
3003	0.6	0.7	0.05-0.20	1.0-1.5	－	0.1	0.05	0.03	1
3003+1%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	0.5-1.50	0.05	0.05	2
3003+1.5%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	1.0-2.0	0.05	0.05	3
3003+1.5%Zn+Zr	0.5-1.0	0.7	0.05-0.20	1.0-1.6	－	1.0-2.0	0.05-0.2	-	4
3003+0.5%Cu	0.6	0.7	0.30-0.70	1.0-1.5	－	0.10	0.05	0.1	5
3005	0.6	0.7	0.20-0.40	1.0-1.5	0.20-0.60	0.25	－	0.01	6

Core Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
4343	6.8-8.2	0.8	0.25	0.1	－	0.2	－	0.05	1
4343+1%Zn	6.8-8.2	0.8	0.25	0.1	－	0.5-1.5	－	0.05	2
4045	9.0-11.0	0.8	0.3	0.05	－	0.2	－	0.2	3
4045+1%Zn	9.0-11.0	0.8	0.3	0.05	－	0.5-1.5	－	0.2	4
4004	9.0-10.5	0.8	0.25	0.1	1.0-2.0	0.2	－	0.2	5

2) Main mechanical of aluminum for welding heat exchanger system

Alloy Code	temper	Tensile Strength Rm(MPa)	Yield Strength Rp_0.2(Mpa)	Extend Ratio A₅₀(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3.0
	H16	185-225	≥160	≥1.0
	H18	≥185	-	≥0.5
TR-166 Etc.plate material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.plate material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.plate material	H24	140-185	≥125	≥8

2.Our advantage of 3003 Brazing New design aluminum ev cooling plate for battery cold:
1. From 2006, we have rich experience in this aluminum heat exchange area in China;
2. Good reputation in aluminum industry;
3. We have design teams to achieve your design idea and can give you some suggestion
4. Good price for bulk order.
5. Good experience cooperation with big clients in the world;
6. With Certificate like ISO9001-2008;
7. Sample order can accept.
8. High performance cost ratio;
9. Fast delivery time and resolve problem attitude.

3.Terms and conditions:
1, Trade terms: CIF / CFR / FOB/ EXW
2, Payment : TT 30% before production+70% before shipment or against copy of BL;
or 100% Irrevocable L/C at sight etc.
3, Production time: Normally it is about 10-30 days.

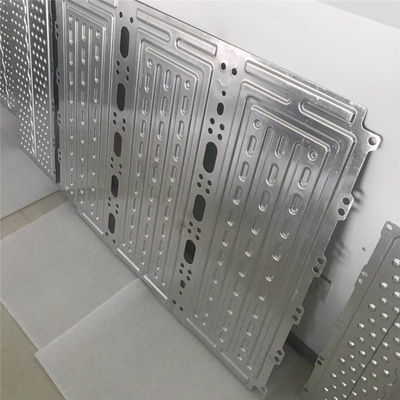

6mm Thickness 3003 Brazing Aluminum Cooling Plate 0

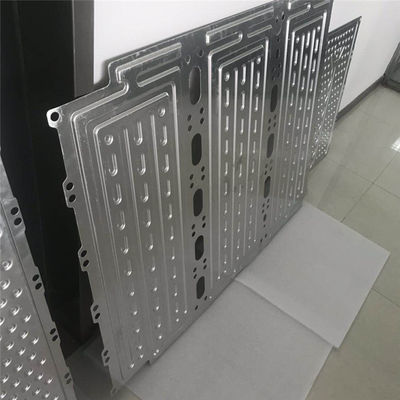

6mm Thickness 3003 Brazing Aluminum Cooling Plate 1

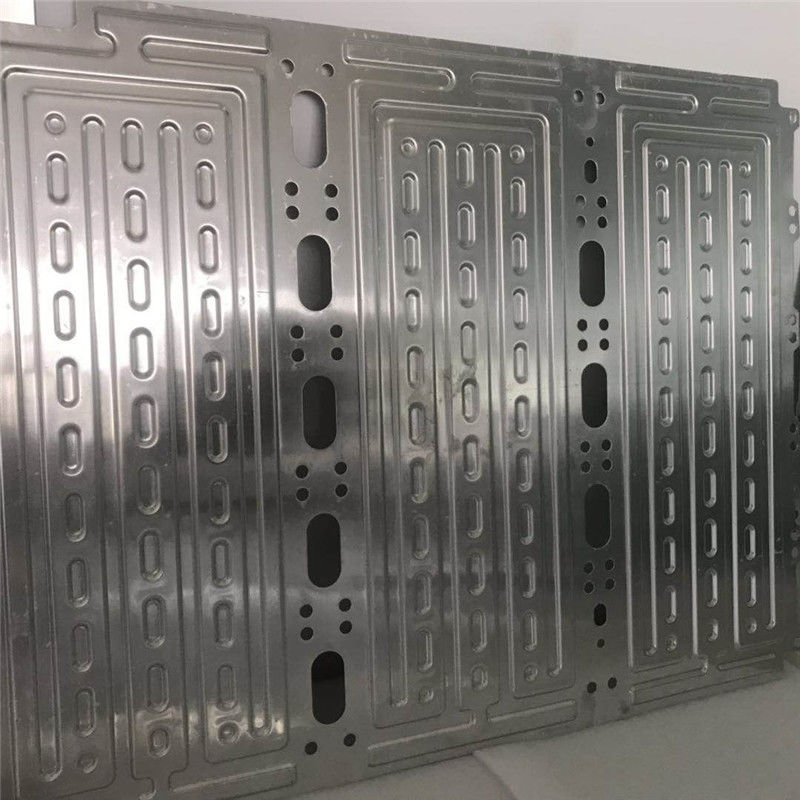

6mm Thickness 3003 Brazing Aluminum Cooling Plate 2
