Product Details:
|
| Alloy: | 3003,3102,1100,1050 | Temper: | O,F,H111,H112 |
|---|---|---|---|
| Shape: | Serpentine/Bent | Surface: | Coating/Insulation |
| Thickness: | 1-10mm | Width: | 8-200mm |
| Length: | According To Customers' Requirement | Applications: | Electrical Vehicle Battery Cooling |
| Process: | Bending/Coating/Welding/Stamping | ||
| High Light: | Serpentine Aluminum Cooling Plate,SGS Aluminum Cooling Plate,3003 aluminium cold plate |
||
3003 Serpentine Aluminum Cooling Plate For Electrical Vehicle Battery Cooling
1. Product Introduction:

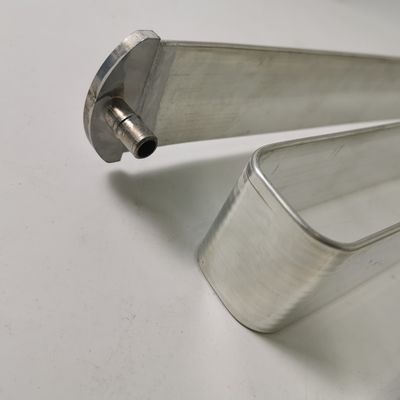

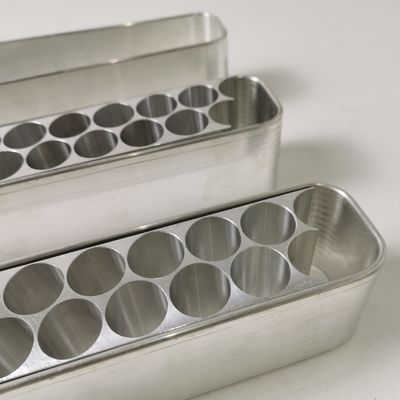

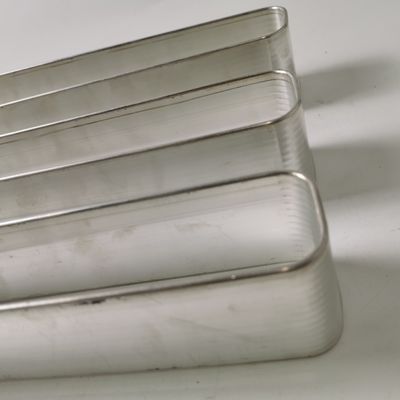

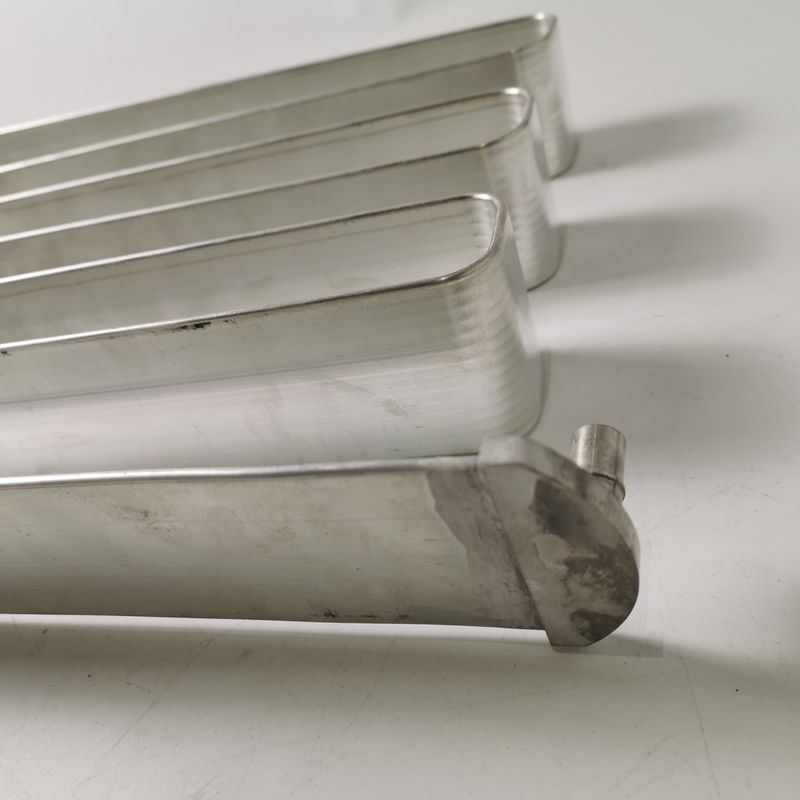

Our Serpentine Aluminum Cooling Plate is made of Multiport Aluminium Extruded tubes,also called micro-channel aluminum tubes,are unique tubes developed with highly refined manufacturing quality.The tube port can be customized according to customers' requirement.
Besides,we can make further processing on the Multiport Aluminium Extruded tubes,including stamping,coating,bending and making inlet/outlet connections on each tube end,which can increase the touching area with the batteries in order to increase the heat transfer efficiency.
We can achieve more efficient heat transfer by making the large internal surface area and hence are widely used in highly effective heat exchangers.
In recent years,new energy vehicles are becoming more and more popular in our life,it is environment protection.In the meantime,battery cooling used in the area is becoming a very promising subjet.Under such background,we developed a series of Serpentine Multiport Aluminum Tube Extrusion used for the batttery pack cooling in the new energy vehicles.Based on the recent few years' supplying experience,we could offer R&D recommendation,tooling design service together with the sample supply for prototype manufacturing. We have combined our supply chain with brazing technology,extrusion technology,CNC processing,painting,welding etc thus ensured our clients with one stop sourcing for short sample delivery time and mass production cost efficiency.
Relying on our strong design team and project management team,as well as the production support with many customers in China and oversea countries,we have accumulated first-hand experience,which will surely make your project fall into the ground most quickly and reliably.It has always been our mission that using materials to make technology come true.
2. The Aluminium Multi Port Extrusion (MPE) or microchannel tube is unique tube developed with the highest manufacturing quality and is characterized by the following properties:
1) Light weight
2) Excellent conductor of heat and electricity
3) High corrosion resistance,the surface can be coated
4) High recycling value
5) High surface quality
6) High pressure resistance
7)High heat transfer and high touching area with battery to increase the heat exchange
3. Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
4. Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
5. Products specification:
1. Specification: we can do various sizes as per customer's requirements
2. Alloy Code: 3003/6061/6063 or other series aluminum alloy
3. Surface treatment: anodizing ,polishing, turning ,coating, mill finish etc
4. Design: OEM, ODM, or we ourselves can also provide design service
5. Equipment: CNC, extruding machine, cold drawn machine, heating oven, straightening machine,cutting machine
6. Team Support: Professional design team, technology team and sales team
6. FAQ:
Q: Are you a trading company or manufacturer?
A:Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.
Q:OEM/ODM available?
A:Yes,we can!
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
