Product Details:
|
| Alloy: | 3003,3102,1100,1050 | Temper: | O,F,H111,H112 |
|---|---|---|---|
| Shape: | Serpentine/Bent | Surface: | Coating/Insulation |
| Specification: | Various Size As Customer's Requirements | Length: | According To Customers' Requirement |
| Application: | Electrical Vehicle 18650 Battery Pack | Process: | Bending/Coating/Welding/Stamping/Extrusion |
| High Light: | Multiport Aluminum Cooling Plate,1100 Aluminum Cooling Plate,o temper aluminium cooling plate |
||

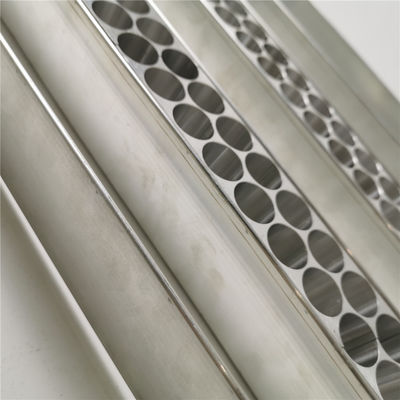

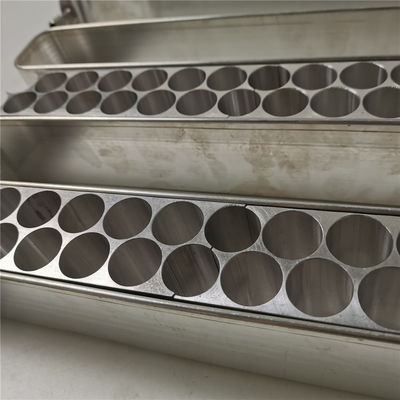

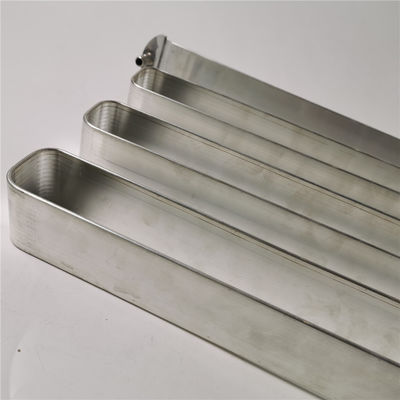

Customized Multiport Aluminum Cooling Plate For Battery Pack Thermal Management
1. Product Introduction:
Our Multiport Aluminum Cooling Plate is actually made of Micro-channel Extruded Aluminium Tubes,which we also called multiport aluminum tubes or aluminum tube extrusions,which are unique tubes developed with highly refined manufacturing quality.The tube structure can be customized according to customers' requirement and the tube size can be controlled strictly by our precise toolings,we are having rich experience in the tooling calibration.With our extrusion production line improved,we are now able to produce the tube with more than 100mm width and the flat surface.
We have professional R&D team providing the customized solution and helpful recommendation according to customers' specific requirement.
Besides,we could also provide tooling design service together with sample supply for prototype manufacturing.Here you can find one stop sourcing for short sample delivery time and mass production cost efficiency,because we could combine our supply chain with brazing technology,extrusion technology,CNC processing,painting,stamping,welding etc.
2. Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Both 3003 and 3102 are the alloys with anti-corrosion property,so they are widely used for heat exchange.
3. Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
4. Our advantages
Since 2004, we have rich experience in this industry in China;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
We have our own development department for new material research;
All parts of ladder is self manufacturing, we have price advantage.
Good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Sample order is acceptable
High performance cost ratio;
Fast delivery time;
Good communication skills, and good service and understandings for customers
5. Products for your reference:
Cylindrical Battery Thermal Management
Square Battery Thermal Management
Electric Thermal Management
All Aluminum Liquid Cooling Tray
Soft Packing Battery Thermal Management
Motor Thermal Management
