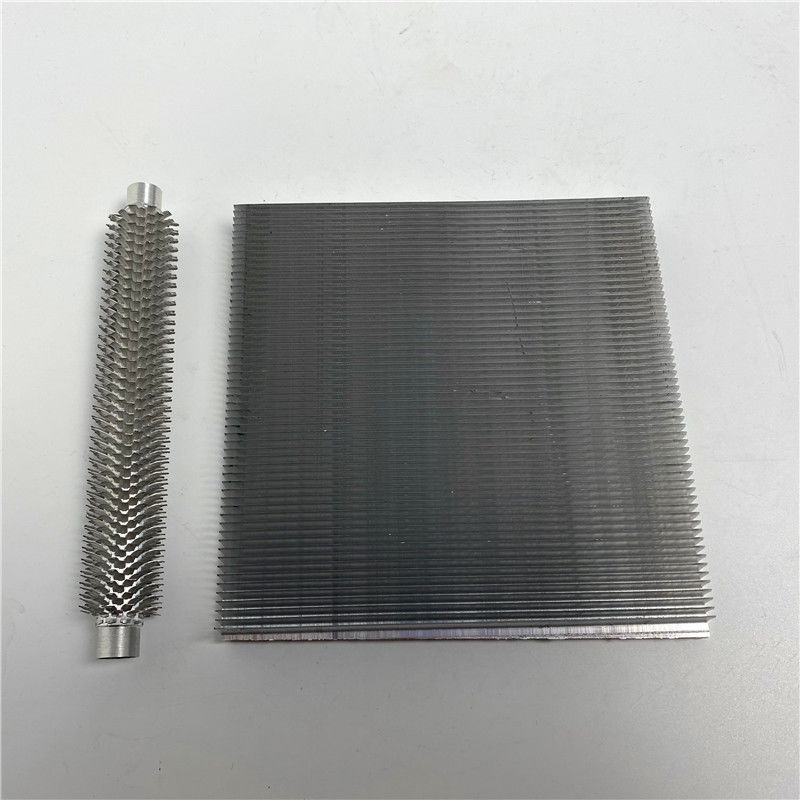

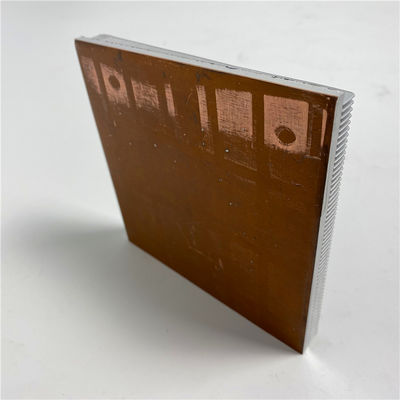

Extrusion Aluminum Skiving Heatsink For High Power Inverter

Extrusion Skiving Heatsink Aluminum Spare Parts For High Power Inverter

Products introduction:

Our traditional heatsink are including Aluminum heatsink,Metal stamping parts,Copper heatsink.Besides,we are also having new heatsink,including Riveted Insert Fin Heatsink,Extrusion Skiving Heatsink,Friction Welding Heatsink,Copper Aluminum Embedded Heatsink,Co-Al welding heatsink,Heat pipe heatsink,Module Heatsink.

1) HD Skiving (High-power Inverter)
Spec:

Fin Height: 140 mm;

Fin Length: 400mm;

Fin Space: 3mm;

Fin Thickness: 1mm;

Section width: 590mm

2) Double Row Skiving (High-power Inverter)
Spec: Double row of fins

Fin Height: 83 mm;

Fin Length: 505mm;

Fin Space: 3mm;

Fin Thickness: 0.8mm;

Section width: 336mm

3) Technical Spec(Significant improvement vs hydraulic skiving machine)
Fin Height:140 mm;

Fin Length: 450mm;

Fin Space: 0.5-15mm;

Fin Thickness Range:0.5-2.5mm;

Technical Development Trend: Increase fin height and length.

Application field: High-power Inverter, High-power Solar Inverter

We are supplying the heatsink and hardware solution for following industrial:
1) Communication Electronic (LCD, ADSL)
2) Power Electronic (UPS, Variable Frequency)
3) Green Energy (Wind & Solar)
4) Electric Automobile

Our production equipment list:
1) Fully automatic teething machine
2) Friction mixing welding machine
3) Automatic cutting machine
4) CNC processing center
5) High-precision pneumatic punch
6) Ultrasonic cleaning machine and a large number of professional processing machines

Our testing equipment list:
1) Common test capability is used to monitor out-going quality
2) CMM
3) Water cooled plate PressureTester
4) Thermal performance test equipment

Product specifications:


Product development direction:

With the maturity of 5G and the trend of consumer behavior, electronic devices have become integrated, thin and light, and high- frequency and high-speed has become a development trend: １,the introduction and development of ultra-thin heat pipe products; ２,the introduction and development of the even temperature plate; 3,more research and development of liquid water and cold plate.
