2mm 6061 Aluminum Cold Plate For New Energy Vehicle

MOQ: Sample trial can be arranged
Price: Negotiable
Standard Packaging: Standard export packaging like carton/ wooden box
Delivery Period: 15-30 working days after received your advance payment
Payment Method: T/T, L/C
Supply Capacity: 100000 tons yearly
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
TS16949 , ISO14001 and OHSAS 18001
Color:
Silver
Surface:
Mill Finish
Use Place:
Heat Exchange, Heat Sink For Water Cooling, Battery Cooling
Temper:
O, H Etc
Packing:
Carton Or Wooden Box
Thickness:
1-4mm
Size:
Customerized
Technical:
Brazing
Product Name:
Battery Storage New Energy Vehicle 6061 Aluminum Cooling Plate
Highlight:

6061 Aluminum Cold Plate

,

2mm Aluminum Cold Plate

,

new energy vehicle 6061 aluminum plate

Product Description


Battery Storage New Energy Vehicle 6061 Aluminum Cooling Plate


1. Description of products:
Cold stamping - cleaning - spray flux - fixture clamp the product into the brazing furnace - brazing furnace after more than a dozen procedures (automatic heating/insulation/cooling/welding, etc.) - do full inspection of air tightness test - cleaning (mainly for welding cleaning, polishing, drying), a total of more than 20 steps of process.


Plate thickness: our company can achieve a single plate thickness of 0.8-1.5mm: 0.8,1.0 and 1.2mm, the minimum plate thickness can be achieved plate + channel plate 0.8mm+0.8mm, currently 1.0mm + 1.0mm has been produced, 0.8mm+0.8mm is not batch, it needs to be verified, and 0.8mm+0.8mm pressure resistance is relatively bad, done plate 1.2mm, channel plate 1.0mm


1) Cladding Material:

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 － 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 － 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 － 0.10 0.05 0.1 5
3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 － 0.01 6


2) Core Material

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
4343 6.8-8.2 0.8 0.25 0.1 － 0.2 － 0.05 1
4343+1%Zn 6.8-8.2 0.8 0.25 0.1 － 0.5-1.5 － 0.05 2
4045 9.0-11.0 0.8 0.3 0.05 － 0.2 － 0.2 3
4045+1%Zn 9.0-11.0 0.8 0.3 0.05 － 0.5-1.5 － 0.2 4
4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 － 0.2 5





2. Advantages of Battery Storage New Energy Vehicle 6061 Aluminum Cooling Plate:


1. Rich experience: We have rich experience in this aluminum heat exchange industry in China since 2006, and have participated in many battery storage new energy develop program, can reduce your developing time;

2. Good reputation: We have very good reputation in household and industrial aluminum spare parts areas;
3. Design ability: We have design team to achieve your ideas or give you suggestions
4. Price advantage.
5. Good experience and cooperation with big clients in the world;
6. With Certificate ISO9001-2008;
7. Sample order is acceptable;
8. Fast delivery time and fast resolve problem attitude.


3.Terms and conditions:
1. Trade term: CIF / CFR / FOB / EXW
2. Payment term: 30% before production + 70% before shipment; 100% Irrevocable L/C at sight;

Or we can further cummunicate with each other about this part.
3. Shipment: Normally it is about 15-30 days.

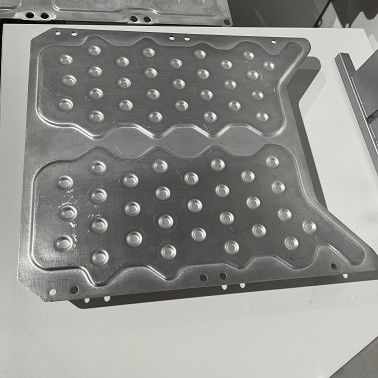

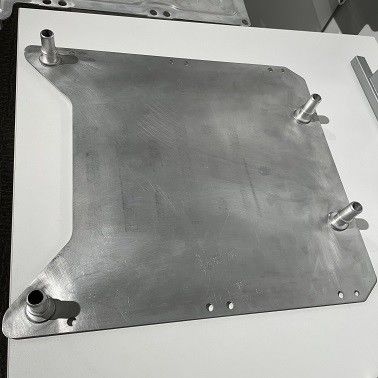

2mm 6061 Aluminum Cold Plate For New Energy Vehicle 0
2mm 6061 Aluminum Cold Plate For New Energy Vehicle 1
2mm 6061 Aluminum Cold Plate For New Energy Vehicle 2
