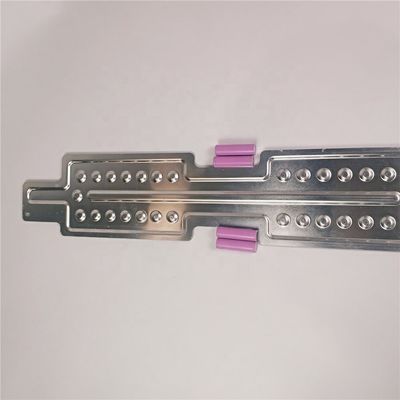

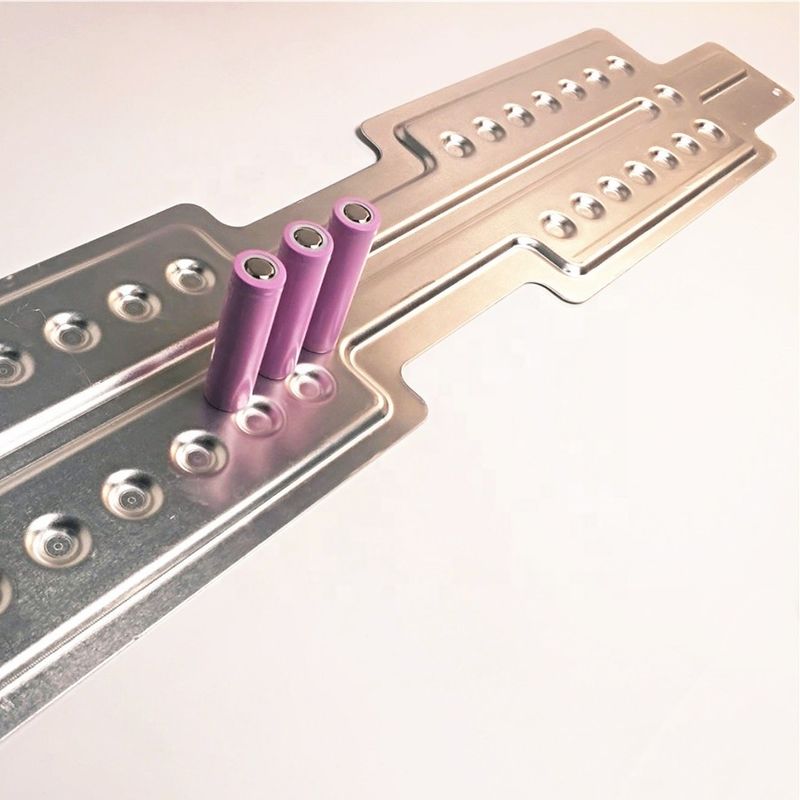

Large Image :  Microbus Thickness 3mm Aluminum Cooling Plate TS16949

Product Details:
Place of Origin: China
Brand Name: Trumony
Certification: TS16949 , ISO14001 and OHSAS 18001
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negiotiate
Packaging Details: Standard export packaging like carton/ wooden box
Delivery Time: 15-30 working days after received your advance payment
Payment Terms: T/T, L/C
Supply Ability: 100,000 mt per year

Microbus Thickness 3mm Aluminum Cooling Plate TS16949

Description
Color: Silver, Gold, Blue Etc Surface: Mill Finish
Use Area: Water Cooling, Battery Cooling Etc Temper: O,H Etc
Thickness: 1-4mm Dimention: Customerized
Product Name: Microbus Air Coolant Motor Water Liquid Cold Aluminum Cooling Plate
High Light:

3mm Aluminum Cooling Plate

,

Aluminum Cooling Plate TS16949

,

Microbus Aluminium Cold Plate



Microbus Air Coolant Motor Water liquid Cold Aluminum Cooling Plate


1. Description of our products

Processing precedures: Cold stamping - cleaning - spray flux - fixture clamp the product into the brazing furnace - brazing furnace after more than a dozen procedures (automatic heating/insulation/cooling/welding, etc.) - do full inspection of air tightness test - cleaning (mainly for welding cleaning, polishing, drying) a total of more than 20 steps of procedures.



Main mechanical property of aluminum alloy for welding heat exchanger system:

Alloy Code temper Tensile Strength
Rm(MPa)
Yield Strength Rp0.2(Mpa) Extend Ratio
A50(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3.0
H16 185-225 ≥160 ≥1.0
H18 ≥185 - ≥0.5
TR-166 Etc.tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube
material
H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8



2. Main applications of our Aluminum Cooling Plate:

Different ranges of heat exchange or collection, such as new energy automobile/vehicles, solar panel, solar energy collector, photovoltaic power generation collector, collector, superconducting plate, soaking plate,temperature uniforming plate and many other applications.


3.Our advantages of Microbus Air Coolant Motor Water liquid Cold Aluminum Cooling Plate:
1. Since 2006, we have rich experience in this aluminum heat exchange industry in China;
2. Good reputation in household and industrial aluminum spare parts areas;
3. Design develop ability: We have design team to achieve your idea or give you suggestion
4. Price advantage.
5. Good experience and cooperation with big clients in the world;
6. With Certificate ISO9001-2008;
7. Sample order is acceptable
8. High performance cost ratio;
9. Fast delivery time and fast resolve problem attitude.


4.Terms and conditions:
1. Trade term: CIF / CFR / FOB/ EXW
2. Payment term: 30% before production + 70% before shipment;
Or 100% Irrevocable L/C at sight;
Or we can further communicate with each other about this part.
3. Shipment time: Normally it is about 15-35 days.
