Product Details:
|
| Colour: | Silver | Surface Coating: | Mill Finish Or Anodize |
|---|---|---|---|
| Application: | Water Cooling, Vehicle Battery Cooling | Thickness: | 1-6mm |
| Length: | Customized | Technology: | Extrusion Or Brazed |
| Width: | Customized | Product Name: | New Energy Vehicle Battery Cooling Aluminum Cooling Plate |
| MOQ: | 1pc | ||
| High Light: | 6mm Aluminum Cold Plate,Brazed Aluminum Cold Plate,Brazed Aluminum Cooling Plate |
||

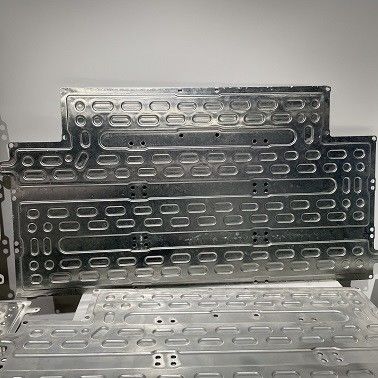

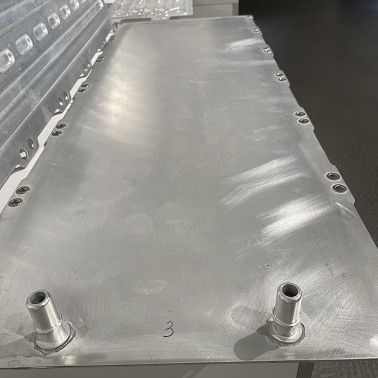

New Energy Vehicle Battery Cooling Aluminum Cooling Plate
1. Description of Aluminum Cooling Plate
Production Process: Cold stamping - cleaning - spray flux - fixture clamp the product into the brazing furnace - brazing furnace after more than a dozen procedures (like automatic heating/ insulation/ cooling/ welding etc.) - do full inspection of air tightness test - cleaning (mainly for welding cleaning, polishing, drying) etc, which is total more than 20 steps procedures.
1) Cladding Material of aluminum alloy
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.1 | 0.05 | 0.03 | 1 |
| 3003+1%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.5-1.50 | 0.05 | 0.05 | 2 |
| 3003+1.5%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 1.0-2.0 | 0.05 | 0.05 | 3 |
| 3003+1.5%Zn+Zr | 0.5-1.0 | 0.7 | 0.05-0.20 | 1.0-1.6 | － | 1.0-2.0 | 0.05-0.2 | - | 4 |
| 3003+0.5%Cu | 0.6 | 0.7 | 0.30-0.70 | 1.0-1.5 | － | 0.10 | 0.05 | 0.1 | 5 |
| 3005 | 0.6 | 0.7 | 0.20-0.40 | 1.0-1.5 | 0.20-0.60 | 0.25 | － | 0.01 | 6 |
2) Core Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.2 | － | 0.05 | 1 |
| 4343+1%Zn | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.5-1.5 | － | 0.05 | 2 |
| 4045 | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.2 | － | 0.2 | 3 |
| 4045+1%Zn | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.5-1.5 | － | 0.2 | 4 |
| 4004 | 9.0-10.5 | 0.8 | 0.25 | 0.1 | 1.0-2.0 | 0.2 | － | 0.2 | 5 |
3) Main mechanical of aluminum for welding heat exchanger system
| Alloy Code | temper | Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) | Extend Ratio A50(%) |
| TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3.0 | |
| H16 | 185-225 | ≥160 | ≥1.0 | |
| H18 | ≥185 | - | ≥0.5 | |
| TR-166 Etc.plate material | H24 | 185-235 | ≥150 | ≥8 |
| TR-116,TR-316 Etc.plate material |
H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 |
2.Our advantages of 3003 Brazing New design aluminum ev cooling plate for battery cold:
1). From 2006, we have rich experience in this aluminum heat exchange area in China;
2). Good reputation in aluminum industry;
3). We have design teams to achieve your design idea and can give you professional suggestions;
4). Good price for bulk order;
5). Good experience cooperation with big clients in the world;
6). With Certificate like ISO9001-2008;
7). Sample order can accept;
8). High performance cost ratio;
9). Fast delivery time and resolve problem attitude.
3. Terms and conditions:
1), Trade terms: CIF / CFR / FOB/ EXW
2), Payment: TT 30% before production + 70% before shipment or against copy of BL;
or 100% Irrevocable L/C at sight etc.
3), Production time: Normally it is about 10-30 days.
4. FAQ:
Q: Are you a trading company or manufacturer?
A:Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.
Q:OEM/ODM available?
A:Yes,we can!
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
