Product Details:
|
| Alloy: | 3003, 3102, 1100, 1050 | Temper: | O,F,H111,H112 |
|---|---|---|---|
| Shape: | Serpentine/Bent | Surface: | Coating/Insulation |
| Thickness: | 1-10mm | Width: | 8-200mm |
| Length: | According To Customers' Requirement | Applications: | Electrical Vehicle 18650 Battery Pack |
| Process: | Bending/Coating/Welding/Stamping/Extrusion | Product Name: | Power Battery Heat Transfer 8mm Thickness Aluminum Cooling Plate |
| High Light: | 8mm Aluminum Cooling Plate,18650 Battery Pack Aluminum Cooling Plate,3003 Aluminum Cold Plate |
||

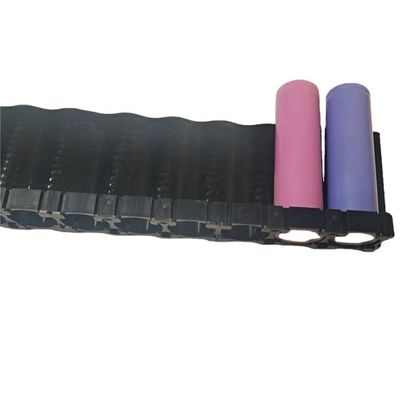

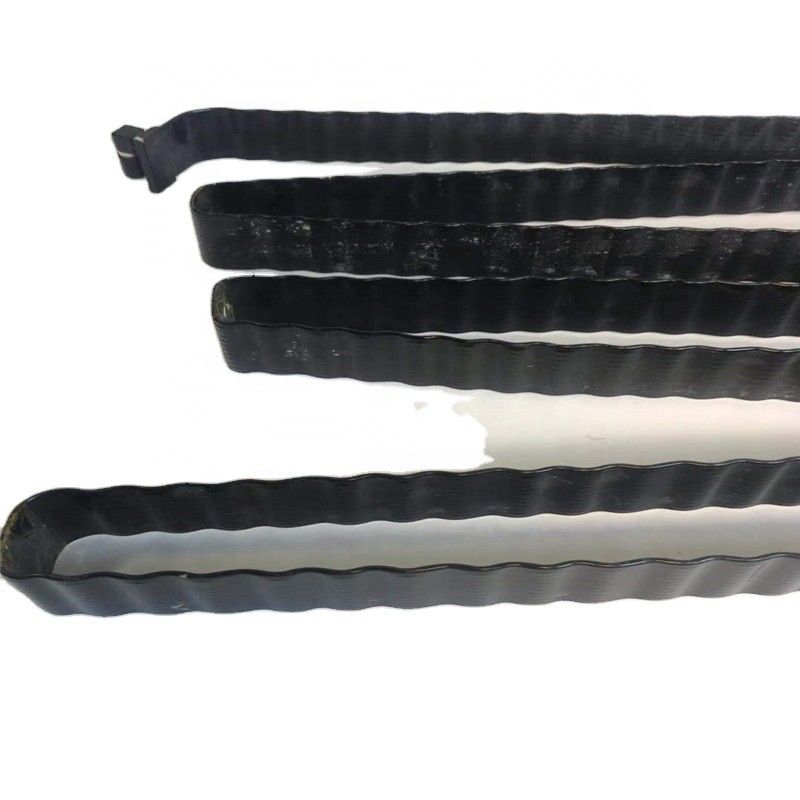

Heat Transfer 8mm 3003 Aluminum Cooling Plate For 18650 Battery Pack
1. Description of aluminum cooling plate
Processing steps: Cold stamping - cleaning - spray flux - fixture clamp the product into the brazing furnace - brazing furnace after more than a dozen procedures (automatic heating/insulation/cooling/welding, etc.) - do full inspection of air tightness test - cleaning (mainly for welding cleaning, polishing, drying) a total of more than 20 steps procedures.
2. We are supplying the aluminum cooling plate for the following batteries:
1). Cylindrical Battery
2). Soft Packing Battery
3). Square Battery
4). New energy enterprise Battery Package Liquid Cooling Project
3. Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Both 3003 and 3102 are the alloys with anti-corrosion property,so they are widely used for heat exchange.
4. Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
5. Our advantages
1) Since 2004, we have rich experience in this industry in China;
2) Good reputation in household foil areas;
3) We start our productions from aluminum ingot,so we can control the quality as well;
4) We have our own development department for new material research;
5) All parts of ladder is self manufacturing, we have price advantage;
6) Good experience and cooperation with big client in the world;
7) With Certificate ISO9001-2008;
8) Sample order is acceptable
9) High performance cost ratio;
10) Fast delivery time;
11) Good communication skills, and good service and understandings for customers.
6. FAQ:
Q: Are you a trading company or manufacturer?
A:Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5 kgs);
after confirmation, 25-30 days for mass production.
Q:OEM/ODM available?
A:Yes, we're available to accept OEM/ODM.
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
