Product Details:
|
| Product Name: | Serpentine Aluminum Tube | Alloy: | 3003,3102,1100,1050 |
|---|---|---|---|
| Application: | Electrical Vehicle 18650 Battery Pack | Temper: | O,F,H111,H112 |
| Shape: | Serpentine/Bent/Snake Shape | Surface: | Coating/Insulation/Film |
| Specification: | Various Size As Customer's Requirements | Length: | According To Customers' Requirement |
| Process: | Bending/Coating/Welding/Stamping/Extrusion | Packing: | Ply-wood Box Specialized For Export |
| High Light: | Battery Thermal Management 3003 Aluminum Plate,Serpentine 3003 Aluminum Cooling Plate |
||

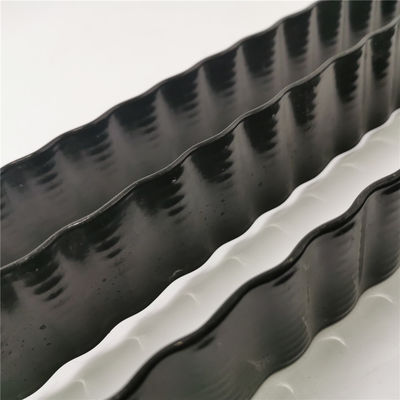

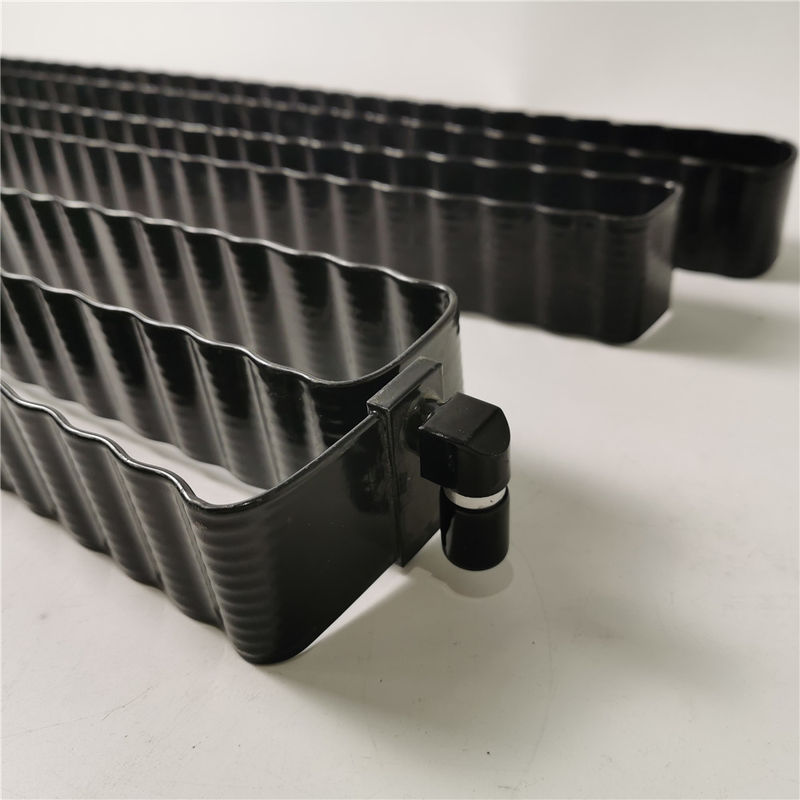

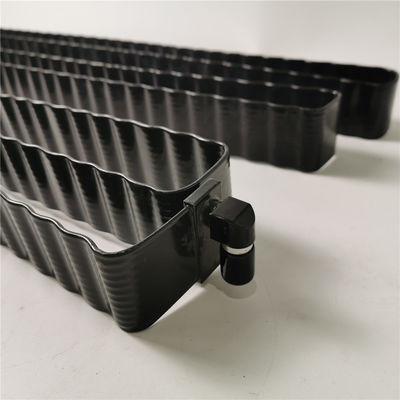

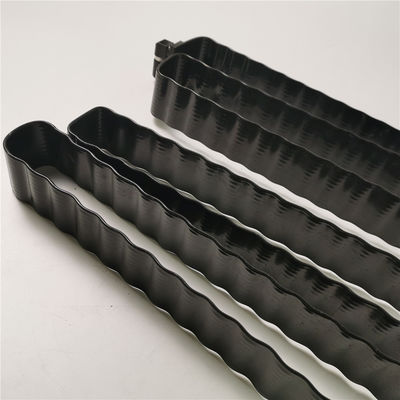

3003 Serpentine Battery Pack Thermal Management Aluminum Cooling Plate
1. Product Introduction:
We are supplying the aluminum cooling plate which is widely used for Electrical Vehicle 18650/21700 Battery Pack coolinng,for example,the serpentine aluminum tube,which is actually made of multiport extruded aluminium tubes,we also call it micro-channel aluminum tube extrusions or aluminum tube extrusions,we are having our own tooling center for the tube extrusions,and have rich experience for the tooling making and adjust,so we can control the tube size very precisely.The tubes developed are with highly refined manufacturing quality.The tube structure can be customized according to customers' requirement and the tube size can be controlled strictly by our precise toolings.With our extrusion production line improved,we are now able to produce the tube with more than 100mm width and the flat surface.
We are not only manufacturer, but also design and development company, better heat exchanger solutions are our specialty.
We have done lots of project for heat cooling, electrical vehicle, also called new energy car battery cooling, solar usage cooling, 5G parts cooling, unmanned aerial vehicle cooling and almost all industrial cooling application.
2. Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Both 3003 and 3102 are the alloys with anti-corrosion property,so they are widely used for heat exchange.
3. Supply state and mechanical properties:
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
4. Our advantages:
Since 2004, we have rich experience in this industry in China;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
We have our own development department for new material research;
All parts of ladder is self manufacturing, we have price advantage.
Good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Sample order is acceptable
High performance cost ratio;
Fast delivery time;
Good communication skills, and good service and understandings for customers
5. Products for your reference:
Cylindrical Battery Thermal Management
Square Battery Thermal Management
Electric Thermal Management
All Aluminum Liquid Cooling Tray
Soft Packing Battery Thermal Management
Motor Thermal Management
6. FAQ:
Q: Are you a trading company or manufacturer?
A: we are a manufacturer with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
