Product Details:
|
| Product Name: | 3003 Serpentine Aluminum Battery Cooling Tube | Alloy: | 3003,3102,1100,1050,6061 |
|---|---|---|---|
| Application: | New Energy Vehicle Battery Cooling | Shape: | Serpentine/Bent/Snake Shape |
| Temper: | O,F,H111,H112 | Surface: | Coating/Insulation/Film |
| Specification: | Various Size As Customer's Requirements | Length: | According To Customers' Requirement |
| Process: | Bending/Coating/Welding/Stamping/Extrusion | Packing: | Ply-wood Box Specialized For Export |
| High Light: | Serpentine 3003 Aluminum Plate,Vehicle Battery Cooling 3003 Aluminum Plate,H112 Aluminum Cooling Plate |
||

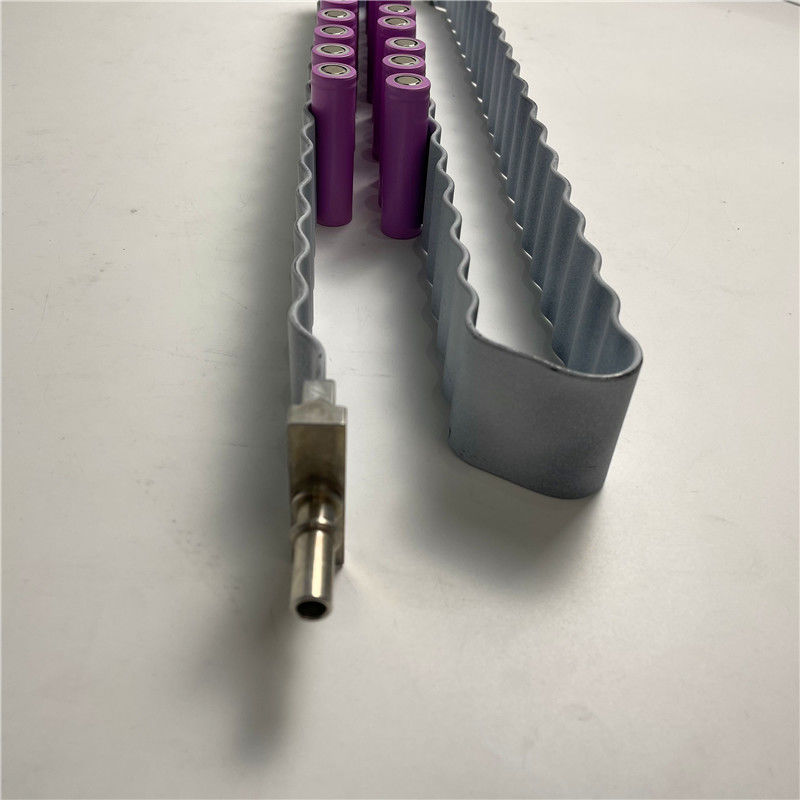

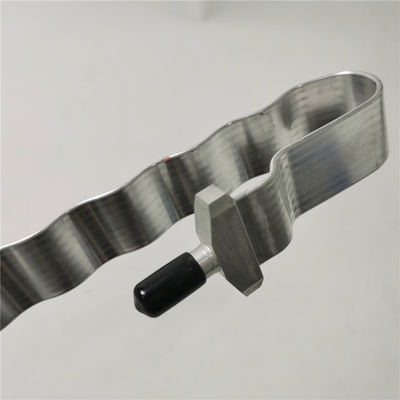

3003 Serpentine Aluminum Battery Cooling Tube
1. Product Introduction:
We are supplying the aluminum cooling plate which is widely used for Electrical Vehicle 18650/21700 Battery Pack coolinng,for example,the serpentine aluminum tube,which is actually made of multiport extruded aluminium tubes,we also call it micro-channel aluminum tube extrusions or aluminum tube extrusions,we are having our own tooling center for the tube extrusions,and have rich experience for the tooling making and adjust,so we can control the tube size very precisely.The tubes developed are with highly refined manufacturing quality.The tube structure can be customized according to customers' requirement and the tube size can be controlled strictly by our precise toolings.With our extrusion production line improved,we are now able to produce the tube with more than 100mm width and the flat surface.
Besides, we have our own CNC center, so we can make inlet and outlet connector or bulk head fitting per customers’ request.
With our strong technical team and experienced sales representatives, we can give quick response for your project and make your project fall into the ground most quickly and reliably.It has always been our mission that using materials to make technology come true.
2. Product specification:
1. Specification: we can do various sizes for the aluminum cooling plate as per customer's requirements
2. Alloy Code: 3003/6061/6063 or other series aluminum alloy
3. Surface treatment: anodizing ,polishing, turning ,coating, mill finish etc
4. Design: OEM, ODM, or we ourselves can also provide design service
5. Equipment: CNC, extruding machine, cold drawn machine, heating oven, straightening machine,cutting machine
6. Team Support: Professional design team, technology team and sales team
3. Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Both 3003 and 3102 are the alloys with very good anti-corrosion property,so they are widely used for heat exchange.
4. Supply state and mechanical properties:
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
5. Application:
Different range of heat exchanger or collection, such as new energy automobile/vehicles(Cylindrical battery, prismatic battery, soft packing battery), solar panel, solar energy collector, photovoltaic power generation collector, collector, superconducting plate, soaking plate,temperature uniforming plate,below some application for your reference.
6. Products for your reference:
Cylindrical Battery Thermal Management
Square Battery Thermal Management
Electric Thermal Management
All Aluminum Liquid Cooling Tray
Soft Packing Battery Thermal Management
Motor Thermal Management
7. FAQ:
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with more than 10 years history in the heat exchange area.Aluminum cooling plate is our strong product used for the battery heat exchange management in the new energy vehicles.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment,other payment terms can also be discussed.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
