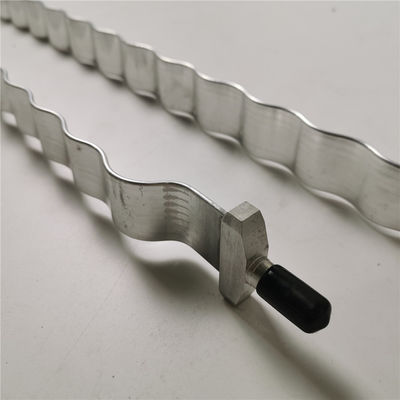

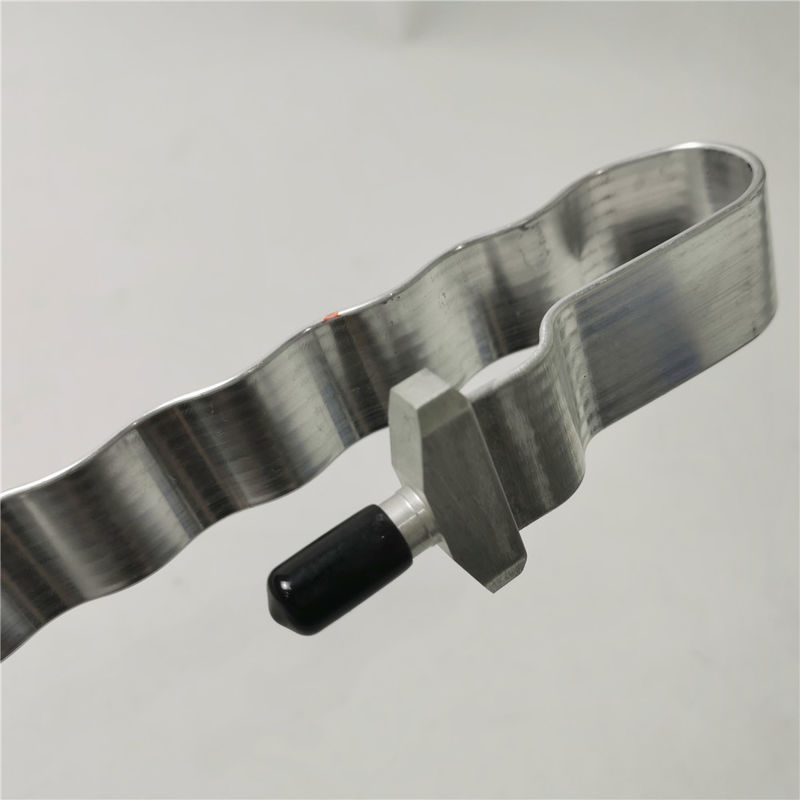

Serpentine Aluminium Cooling Plate For 18650 Battery

Serpentine 18650 Aluminum Battery Cooling Tube

1. Product Introduction:

We are supplying the aluminum cooling plate which is widely used for New energy vehicle 18650/21700 Battery Pack cooling,the aluminum cooling plate can be produdced by extrusions and brazing technology,depending on which kind of battery used for the electrical vehichles.For example,the extruded serpentine aluminum tube,actually it is made of multiport extruded aluminium tubes,we also call it micro-channel aluminum tube extrusions or aluminum tube extrusions,after the extrusion,we will do the further process on it,such as stamping,brazing,bending etc.and we can also prpduce the inlet and outlet by ourselves.We are having our own tooling center for the tube extrusions,and have rich experience for the tooling making and adjust,so we can control the tube size very precisely.The tubes developed are with highly refined manufacturing quality.The tube structure can be customized according to customers' requirement and the tube size can be controlled strictly by our precise toolings.With our extrusion production line improved,we are now having extrusion machine like 500 ton,650ton,1000ton,and we are able to produce the extra wide tubes,such as the tube width more than 100mm width and in thr meantime keep glat on the tube surface.

We are not only manufacturer, but also design and development company, better heat exchanger solutions are our specialty.

We have done lots of project for heat cooling, electrical vehicle, also called new energy car battery cooling, solar usage cooling, 5G parts cooling, unmanned aerial vehicle cooling and almost all industrial cooling application.

2. Product specification:

1. Specification: we can do various sizes for the aluminum cooling plate as per customer's requirements

2. Alloy Code: 3003/6061/6063 or other series aluminum alloy as per customer's requirement

3. Surface treatment: anodizing ,polishing, turning ,coating, mill finish etc

4. Design: OEM, ODM, or we ourselves can also provide design service

5. Equipment: CNC, extruding machine, cold drawn machine, heating oven, straightening machine,cutting machine

6. Team Support: Professional design team, technology team and sales team

3. Commonly used material chemical composition:

Both 3003 and 3102 are the alloys with very good anti-corrosion property,so they are widely used for heat exchange.

4. Supply state and mechanical properties:

5. Application:

Different range of heat exchanger or collection, such as new energy automobile/vehicles(Cylindrical battery, prismatic battery, soft packing battery), solar panel, solar energy collector, photovoltaic power generation collector, collector, superconducting plate, soaking plate,temperature uniforming plate,below some application for your reference.

6. Products for your reference:

Cylindrical Battery Thermal Management
Square Battery Thermal Management
Electric Thermal Management
All Aluminum Liquid Cooling Tray
Soft Packing Battery Thermal Management
Motor Thermal Management

7. Our advantages:

Since 2004, we have rich experience in this industry in China;
Good reputation in household foil areas;
We start our productions from aluminum ingot,so we can control the quality as well;
We have our own development department for new material research;
All parts of ladder is self manufacturing, we have price advantage.
Good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;
Sample order is acceptable
High performance cost ratio;
Fast delivery time;
Good communication skills, and good service and understandings for customers
