Product Details:
|
| Product Name: | 21700 Battery Pack Thermal Management Aluminum Liquid Cold Plate | Alloy: | 3003,3102,1100,1050,6061 |
|---|---|---|---|
| Application: | New Energy Vehicle Battery Cooling | Shape: | Serpentine/Bent/Snake Shape |
| Temper: | O,F,H111,H112 | Surface: | Coating/Insulation/Film |
| Specification: | Various Size As Customer's Requirements | Length: | According To Customers' Requirement |
| Process: | Bending/Brazing/Coating/Welding/Stamping/Extrusion | Packing: | Ply-wood Box Specialized For Export |
| High Light: | 3102 Aluminum Liquid Cold Plate,21700 Battery Pack Liquid Cold Plate,3102 aluminum water cooling plate |
||

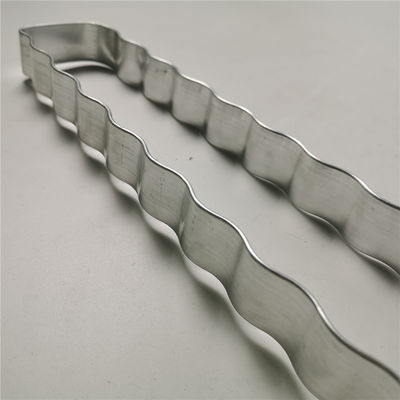

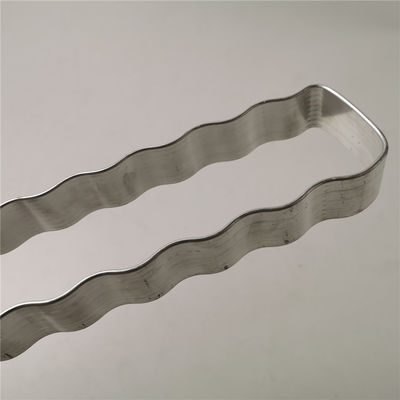

21700 Battery Pack 3102 Aluminum Liquid Cold Plate
1. Product Introduction:
Our aluminum cooling plate is widely used for 18650/21700 Li Battery thermal management in new energy vehicles.In order to meet different requirements of battery cooling,we can design and provide different aluminum cooling plate for the battery thermal management,such as brazing type aluminum water cooling plate with one side flat used for placing the battery,the other side with flow channel for cooling,it can be used for square battery cooling.Besides,we are also supplying the extruded type aluminum cooling plate,we also call it serpentine aluminum extruded tube,which can be used for Cylindrical Battery such as 21700/18650 batter cooling.After it is extruded,it will be further processed,like bending,stamping,coating and so on.
we can supply the Serpentine Extruded Aluminum liquid cold Plate in different alloys,including 1 series,3 series,6 series and so on,it can be customized as per customers' requirement.Each alloy has its own advantge.For 3 series alloy,it has good anti-corrosion property,For 6 series alloy,it has good strength.
2. Product specification:
1. Specification: we can design and produce various sizes for the Aluminum liquid cold plate as per customer's requirements
2. Alloy Code: 3003/6061/6063 or other series aluminum alloy
3. Surface treatment: anodizing ,polishing, turning ,coating, mill finish etc
4. Design: OEM, ODM, or we ourselves can also provide design service
5. Equipment: CNC, extruding machine, cold drawn machine, heating oven, straightening machine,cutting machine
6. Team Support: Professional design team, technology team and sales team
3. Producing Ability
| Extruded | Yes | own mold center |
| CNC | Yes | Own CNC center |
| Stamping | Yes | max 1.8x2.0meters |
| Brazing | Yes | auto brazing line |
4. Test Ability
| Voltage Test | Yes |
| Under Water Test | Yes, check the leakage for welding |
| Chemical Composition Test | Yes |
| Physical Test & Optics Test | Yes |
| Roughness Test & Hardness Test | Yes |
| Salt Spray Test | Yes, inside & outside corrosion test |
| Burst Test | Yes |
| Nitrogen & Helium Test | Yes |
| Flow Resistance Test | Yes |
5. Application:
Aluminum serpentine heat tube is widely used in different range of heat exchange or collection, such as new energy automobile/vehicles, solar panel, solar energy collector, photovoltaic power generation collector, collector, superconducting plate, soaking plate, temperature uniforming plate.
6. Our advantages

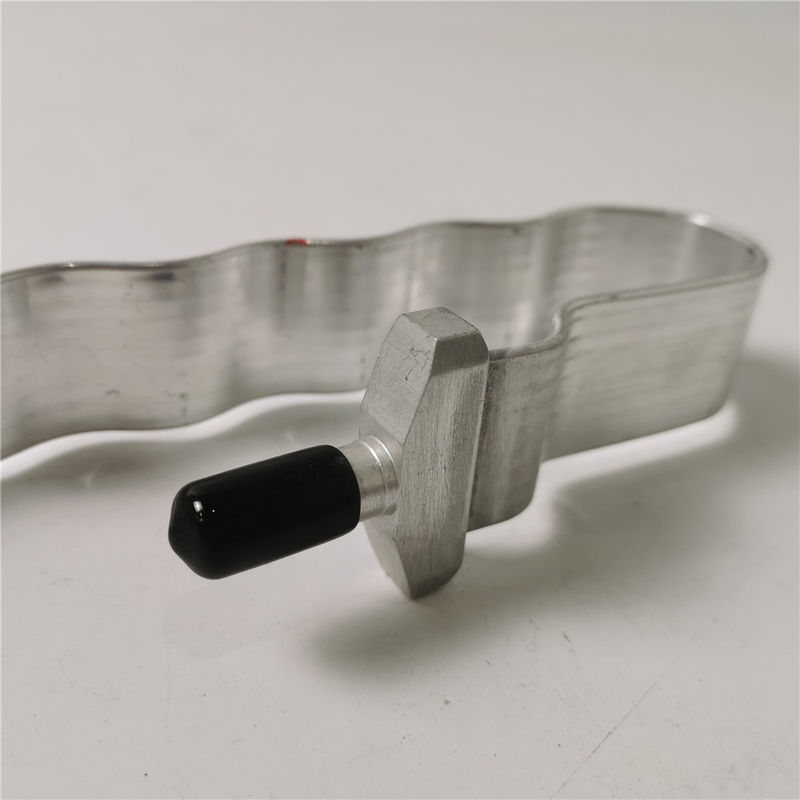

If required,we can also provide the related components, such as insulation spray, silicon pad, inlet/outlet connector together with the tube. With our automatic machine manufacturing,our bending is best fit for your designed cell. Every tube is strictly tested for leakage before dispatch.
