Product Details:
|
| Color: | Silver Or Other Color | Surface: | Mill Finishing |
|---|---|---|---|
| Use Area: | Battery Cooling, Heat Exchange Etc | Temper: | O,H Etc |
| Thickness: | 1-5mm | Dimention: | 1186x685mm, 970x362mm Etc |
| Material: | Aluminum Alloy | Code: | 3003/4343/7072 |
| High Light: | 7072 Aluminum Water Cooling Plate,Water Cooling Plate 1186x685mm,Water Cold Plate 970x362mm |
||

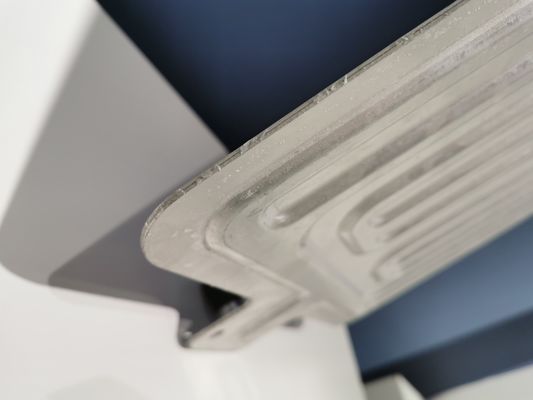

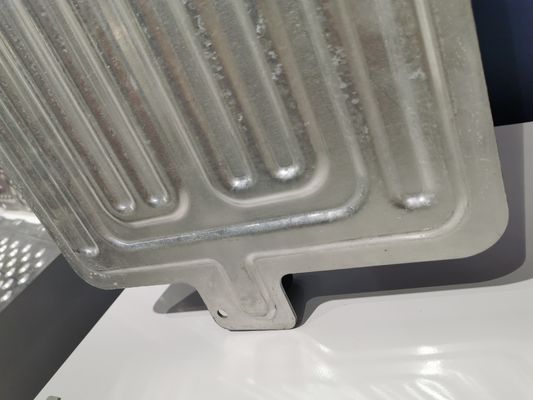

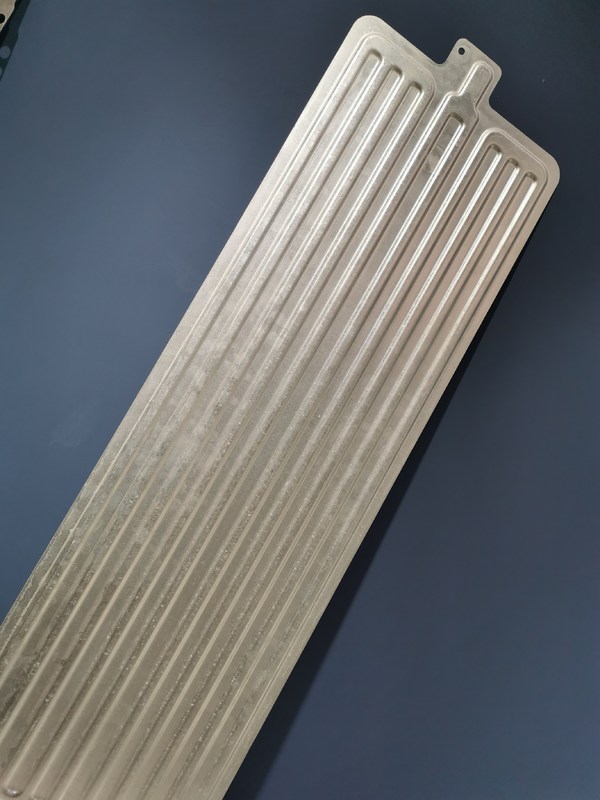

Aluminum Water Cooling Plate For Electrical Mobility Renewable Energy
Water cooing plates,liquid cold plates are widely used for heat exchange in the electrical mobility industry.
1. Descriptions of Aluminum Cooling Plate
1). Applications: widely used in new energy cars, battery cooling ststems, thermal management solutions
2). Technology: Brazing technique, CNC maching, Welding etc
3). Main production machine: Fully automatic tunnel brazing wire, machining center, oil press,
Water nozzle brazing machine, argon arc welding machine,
Ultrasonic cleaning equipment, Prespraying equipment etc
4). Main tesing equipment: Gas inspection equipment (water inspection),
Gas inspection equipment (dry inspection),
Press tester, Flow resistance tester, Salt spray tester
Material tension testing machine
Corrosion tester in runner, Vacumn Helium leak detection equipment
1) Cladding Materials
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.1 | 0.05 | 0.03 | 1 |
| 3003+1%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.5-1.50 | 0.05 | 0.05 | 2 |
| 3003+1.5%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 1.0-2.0 | 0.05 | 0.05 | 3 |
| 3003+1.5%Zn+Zr | 0.5-1.0 | 0.7 | 0.05-0.20 | 1.0-1.6 | － | 1.0-2.0 | 0.05-0.2 | - | 4 |
| 3003+0.5%Cu | 0.6 | 0.7 | 0.30-0.70 | 1.0-1.5 | － | 0.10 | 0.05 | 0.1 | 5 |
| 3005 | 0.6 | 0.7 | 0.20-0.40 | 1.0-1.5 | 0.20-0.60 | 0.25 | － | 0.01 | 6 |
2) Core Materials
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.2 | － | 0.05 | 1 |
| 4343+1%Zn | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.5-1.5 | － | 0.05 | 2 |
| 4045 | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.2 | － | 0.2 | 3 |
| 4045+1%Zn | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.5-1.5 | － | 0.2 | 4 |
| 4004 | 9.0-10.5 | 0.8 | 0.25 | 0.1 | 1.0-2.0 | 0.2 | － | 0.2 | 5 |
2. Our advantage of Aluminum Cooling Plate:
1). Since 2006, we have rich experience in this aluminum heat exchanger industry in China;
2). Good reputation in aluminum material field;
3). Design develop: We have professional designing team to turn your idea into real product, or provide you suggestions
4). Price advantage;
5). Good experience and cooperation with big clients worldwide;
6). With Certificate ISO9001-2008;
7). Sample acceptable;
8). High performance cost ratio;
9). Fast delivery time: 10-25 days.
3. Terms and conditions:
1, Trade term: CIF / CFR / FOB/ EXW
2, Payment term: TT 30% before production+70% before shipment;
or 100% Irrevocable L/C at sight
or we can further communicate with each other about this part.
3, Shipment time: Normally it is about 15-35 days.
4. FAQ:
Q: Are you a trading company or manufacturer?
A: Yes, we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5 kgs);
after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes, surely we can accept OEM/ODM for aluminum cooling plate.
Q: Could you provide sample?
A: Yes, samples can be provided based on customers' specific requirements.
Q: What is the lead time of sample?
A: There are several different situations:
Immediately when you need it if we have it in stock;
1~2days if no stocked sample and the sample structure is not complex;
3~5days if no stocked sample and the sample is with complex structure.
