Product Details:
|
| Color: | Silver Or Other Color | Surface: | Mill Finishing |
|---|---|---|---|
| Use Area: | Water Cooling, Battery Cooling Etc | Temper: | O,H Etc |
| Thickness: | 1-5mm | Material: | Aluminum Alloy |
| Product Name: | Aluminum Cooling Plate For Heat Exchange | ||
| High Light: | Mill Finishing Aluminum Cooling Plate,Heat Exchange Aluminum Cooling Plate,5mm Thickness Aluminum Cooling Plate |
||

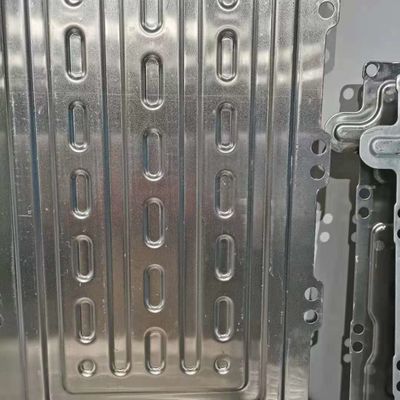

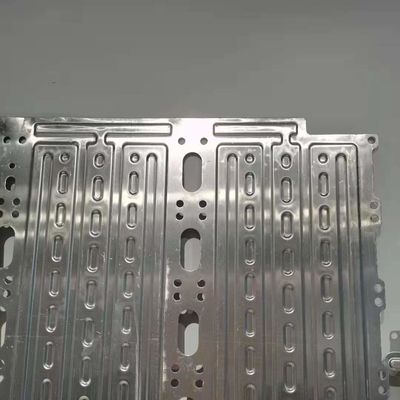

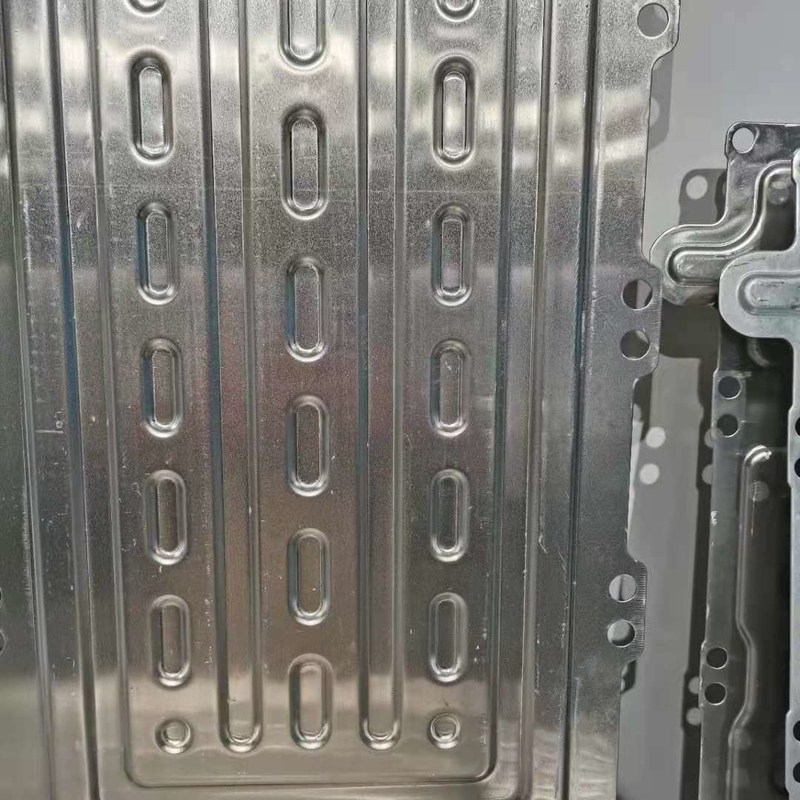

Aluminum Cooling Plate For Heat Exchange
Cold plate coolers are usually the best method of cooling an object when the object can be attached directly to the cold plate. The direct contact allows the heat to be efficiently conducted to the thermoelectric (Peltier) modules. This keeps the system operating as efficiently as possible and improves the stability and accuracy of temperature control.
1. Descriptions of Aluminum Cooling Plate
1). Applications: Use for heat sink of new energy car, battery cooling and other heat dissipation areas.
2). Technology: Brazing, CNC, Welding etc
1) Cladding Materials
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.1 | 0.05 | 0.03 | 1 |
| 3003+1%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.5-1.50 | 0.05 | 0.05 | 2 |
| 3003+1.5%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 1.0-2.0 | 0.05 | 0.05 | 3 |
| 3003+1.5%Zn+Zr | 0.5-1.0 | 0.7 | 0.05-0.20 | 1.0-1.6 | － | 1.0-2.0 | 0.05-0.2 | - | 4 |
| 3003+0.5%Cu | 0.6 | 0.7 | 0.30-0.70 | 1.0-1.5 | － | 0.10 | 0.05 | 0.1 | 5 |
| 3005 | 0.6 | 0.7 | 0.20-0.40 | 1.0-1.5 | 0.20-0.60 | 0.25 | － | 0.01 | 6 |
2) Core Materials
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.2 | － | 0.05 | 1 |
| 4343+1%Zn | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.5-1.5 | － | 0.05 | 2 |
| 4045 | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.2 | － | 0.2 | 3 |
| 4045+1%Zn | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.5-1.5 | － | 0.2 | 4 |
| 4004 | 9.0-10.5 | 0.8 | 0.25 | 0.1 | 1.0-2.0 | 0.2 | － | 0.2 | 5 |
2.Our advantage of Aluminum Cooling Plate:
1). Since 2006, we have rich experience in this aluminum heat exchanger industry in China;
2). Good reputation at aluminum material areas;
3). Design develop: We have design team to let your idea be real product, or give you suggestions
4). Price advantage;
5). Good experience and cooperation with big clients in the world;
6). With Certificate ISO9001-2008;
7). Sample acceptable;
8). High performance cost ratio;
9). Fast delivery time: 10-25 days.
3.Terms and conditions:
1, Trade term: CIF / CFR / FOB/ EXW
2, Payment term: TT 30% before production+70% before shipment;
or 100% Irrevocable L/C at sight
or we can further communicate with each other about this part.
3, Shipment time: Normally it is about 15-35 days.
4. FAQ:
Q: Are you a trading company or manufacturer?
A:Yes, we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5 kgs);
after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes, surely we can accept OEM/ODM for aluminum cooling plate.
Q: Could you provide sample?
A: Yes, we are honored to offer you samples for quality check.
Q: What is the lead time of sample?
A: There are several different situations:
Immediately when you need it if we have it in stock;
1~2days if no stocked sample and the sample structure is not complex;
3~5days if no stocked sample and the sample is with complex structure.
