Product Details:
|
Application: | Heatsink And Hardware Solution | Process: | Extruding |
---|---|---|---|
Specification: | As Requests | Materials: | Aluminum Copper |
Color: | Silver | Packing: | As Requests |
High Light: | Silver Aluminium Extrusion Heatsink,Power Electronics Aluminium Extrusion Heatsink,Heatsink Aluminium Extruded Profiles |

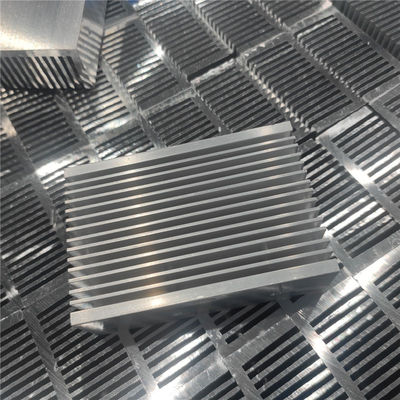

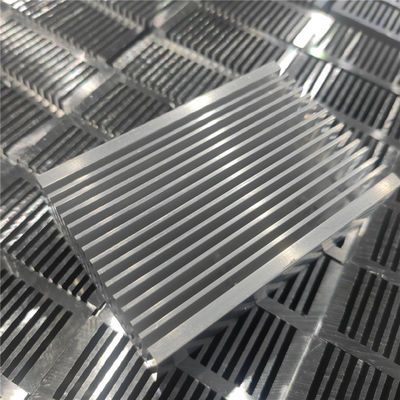

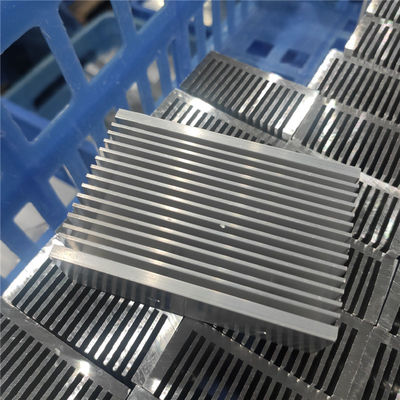

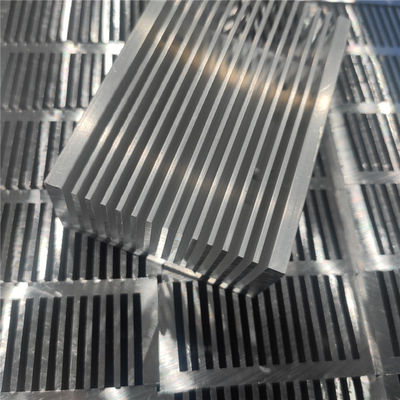

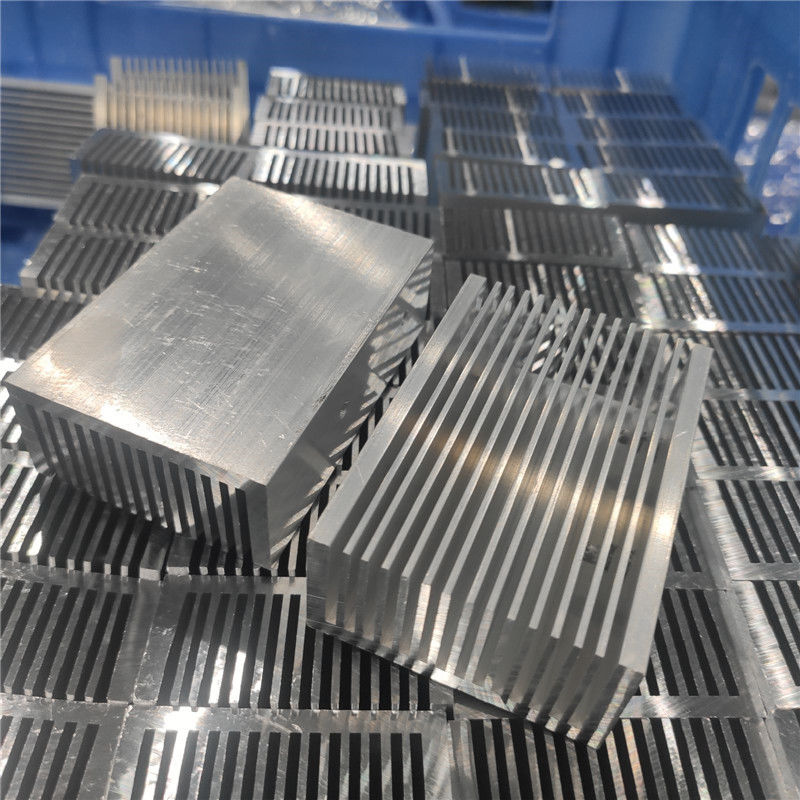

Aluminium Extrusion Heatsink For Power Electronics Heatsink And Hardware Solution
Our heat sink are widely used for heatsink and hardware solution,
Such as following industrial:Communication Electronic (LCD, ADSL),Power Electronic (UPS, Variable Frequency),Green Energy (Wind & Solar),Electric Automobile, more details: High-power Inverter, High-power Solar Inverter, High Power New Energy, Linear welding, heatsink splicing for high-power inverters and solar inverters, Water cooled cover plate to replace vacuum brazing, wind inverter demands quick heat dissipation.
1. Products:
2. Products’ type:
1)Riveted Insert Fin Heatsink
2)Extrusion Skiving Heatsink
3)Friction Welding Heatsink
4)Copper Aluminum Embedded Heatsink
5)Cu-Al welding heatsink
6)Heat pipe heatsink
7)Module Heatsink
8)Water Cooling-Deep Hole Drill Water Cool Plate
3. Technical information:
1)Riveted Insert Fin Heatsink
No. | Name | Data |
1 | Height | 130mm |
2 | Length | 700mm |
3 | Width | 300mm |
4)Cu-Al welding heatsink
No. | Type | Advantages | Application |
1 | Cu Base+Al Fins Soldering |
1.More heat sink 2.Relatively small volume 3.less weight 4.better thermal conductivity |
wind inverter demands quick heat dissipation etc. |
2 | Solder Length |
5)Heat pipe heatsink
No. | Name | Data |
1 | Solder Width | 708mm |
2 | Solder Length | 320mm |
3 | Heat Pipe length | 610 mm |
4 | Heat Pipe Qty | 14 pcs |
