Seamless 3003 Condenser Aluminum Extruded Micro Channel Parallel Flow Aluminium Flat Tube

MOQ:	500KG for mass quantity,sample quantity can also be arranged
Price:	negotiable
Standard Packaging:	Ply-wood box specialized for export
Delivery Period:	30days including tooling time
Payment Method:	T/T, L/C, Western Union
Supply Capacity:	100000 tons yearly

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001

Model Number

TR-CY001

Type:

Parallel Flow Aluminium Flat Tube

Size:

Customized

Material:

Aluminium

Alloy:

3003,6061

Temper:

O,F,H111,H112

Shape:

Surface:

Zn Spraying / Without Zn Spraying

Width:

8-200mm

Application:

Radiators,Condensers,Evaporators

Wall Thickness:

0.15mm-0.6mm

Highlight:

Micro Channel Aluminum Extruded Tube

Aluminum Alloy Condenser Tube

Condenser Aluminum Extruded Tube

Product Description

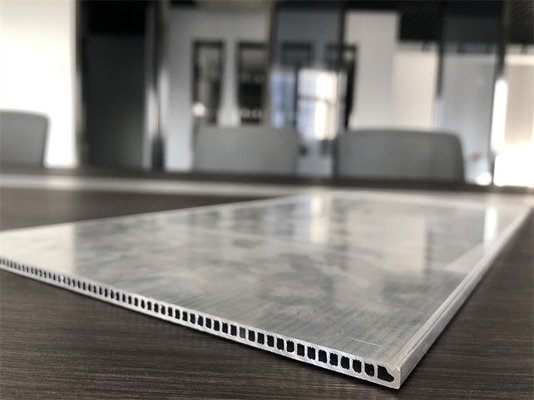

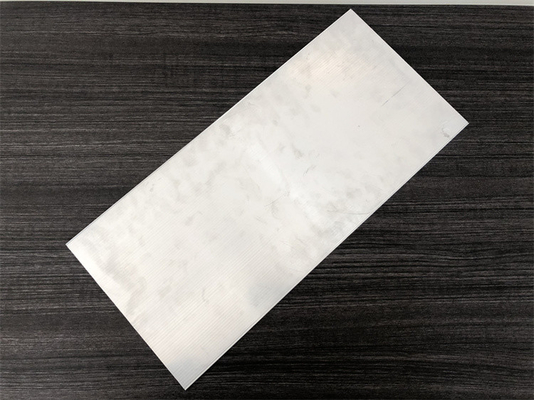

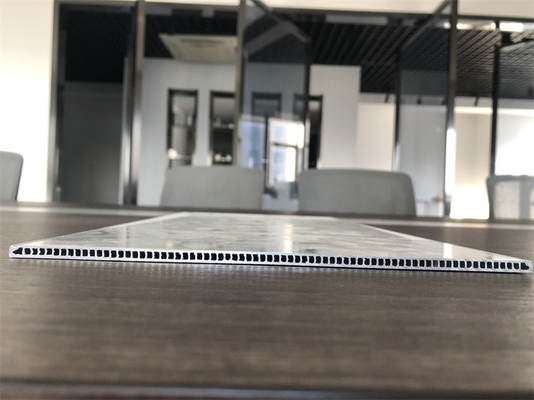

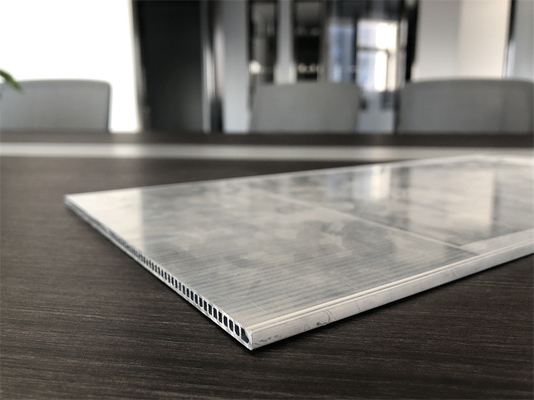

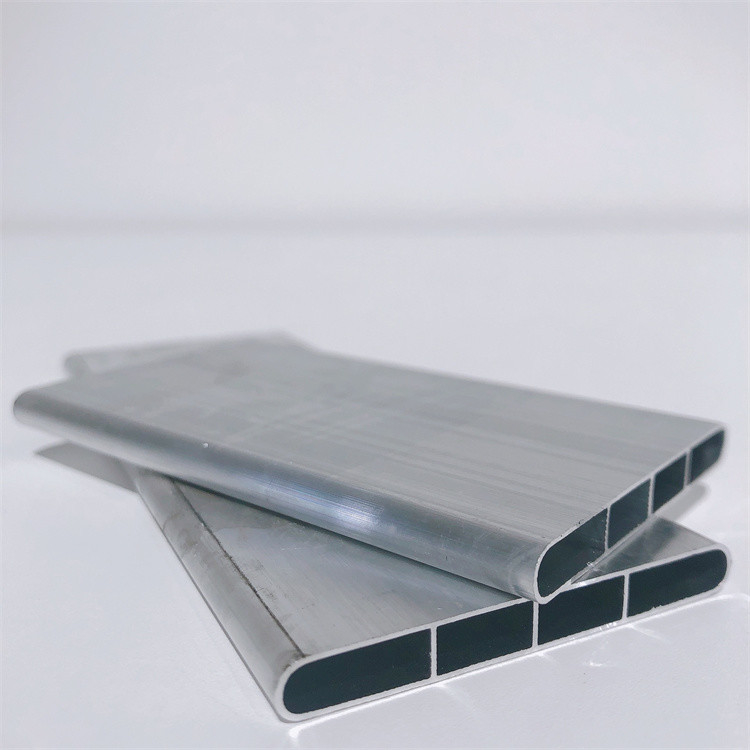

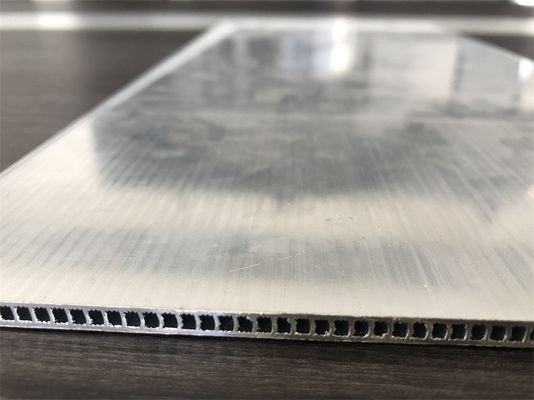

Parallel Flow Aluminium Flat Tube

1. Aluminium Micro-channel Tube is a kind of high precision extruded aluminium tube, also called multi-port extrusion tube (MPE tube) and aluminium micro multi-channel tube. This flat and rectangular extruded tube is made of several channels that increase the heat transfer through a higher surface per volume ratio.

2. Aluminium Micro-channel Tubes are available in various sizes and aluminium alloys, ensuring the best performance for the purpose required and can be delivered with zinc or flux coating, ready for assembly and oven brazing.

Specifications

1. 3003 and other series aluminum alloy
2. anodizing, polishing, turning, power coating, mill finish etc
3. OEM, ODM, or design by ourselves
4. CNC ,extruding machine, cold drawn machine, heating oven, straightening machine, cutting machine

Features of our aluminum tube

1. Bright, no corrosion, no oxidation.
2. Straight, no deformation.
3. Strong, tough, have a perfect corner bending at 90 degree.
4. Neat and smooth cutting section, no burr.
5. High frequency welded, precise in specifications, easy to install.
6. Radiator tubes can be custom-made to meet your special requirements.

Chemical composition:
ALLOY NO.	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHER	AL
1050	0.25	0.4	0.05	0.05	0.05		0.05	0.03	0.03	≥99.5
1060	0.25	0.35	0,05	0.03	0.03		0.05	0.03	0.03	≥99.6
1070	0.2	0.25	0.04	0.03	0.03		0.04	0.03	0.02	≥99.7
1100	0.95(Si+Fe)		0.05-0.20	0.05			0.1		0.05	≥99

3003	0.6	0.7	0.05-0.2	1.0-1.5			0.1		0.05	Remainder
3004	0.3	0.7	0.25	1.0-1.5	0.8-1.3		0.25		0.05	Remainder
3005	0.6	0.7	0.3	1.0-1.5	0.2-0.6	0.1	0.25	0.1	0.05	Remainder
3104	0.6	0.8	0.05-0.25	0.8-1.4	0.8-1.3		0.25	0.1	0.05	Remainder

4047	11.0-13.0	0.8	0.3	0.15	0.1		0.2			Remainder

5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1			Remainder
5252	0.08	0.1	0.1	0.1	2.2-2.8		0.05			Remainder
5754	0.4	0.4	0.1	0.5	2.6-3.6	0.3	0.2	0.15		Remainder
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	0.25	0.15		Remainder
5182

6061	0.4-0,8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15		Remainder
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1		Remainder
6082	0.7-1.3	0.5	0.1	0.4-1.0	0.6-1.2	0.25	0.2	0.15		Remainder

7075	0.4	0.5	1.2-2.0	0.3	2.1-2.9	0.18-0.28	5.1-6.1	0.2		Remainder

Trumony is an excellent supplier in producing a multi-channel aluminium tube, so it can provide various multi-channel aluminium tubes with different sizes, shapes, aluminium alloy. The following products are available for inquiring:

● Aluminium Micro-channel Tube
● Aluminium Multi-Port Tube
● Parallel Flow Aluminium Flat Tube
● Zinc-coated Aluminium Tube
● Pre-Flux Coated Aluminium Tube
● Si Flux Coated Aluminium Tube
● Large Multi-channel Tube(width range 50-200mm)
● Double Row Joint Multi-channel Flat Tube

Seamless 3003 Condenser Aluminum Extruded Micro Channel Parallel Flow Aluminium Flat Tube 0

Seamless 3003 Condenser Aluminum Extruded Micro Channel Parallel Flow Aluminium Flat Tube 1

FAQ:

Q: Are you a trading company or manufacturer?

A: Yes,we are a factory produce Zinc-coated Aluminum Tube with more than 10 years history in this industry.

Q: What is your terms of payment ?

A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?

A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?

A: Yes,we can do the customized aluminum extrusion tube .

Q: Could you provide sample?

A: Yes, We are honored to offer you our existing aluminum multi-port tube samples for quality check.

Q: Is sample order accepted?

A: Yes,we accept sample order and we can provide aluminum tube design service!
