3003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles

MOQ: 500KG
Price: Negotiation
Standard Packaging: Export Standard Packing
Delivery Period: 35days including tooling time
Payment Method: L/C, T/T
Supply Capacity: 100000ton/Every Year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO9001
Model Number
TR-CY006
Shape:
Square
Alloy:
Alloy
Thickness:
Customized
Component:
Cooling Fan
Highlight:

3102 Aluminum Microchannel Tube

,

New Energy Vehicles Aluminum Extruded Tube

,

Mill Finish Aluminum Microchannel Tube

Product Description

Aluminum 3003 3102 6063 Microchannel Tube For New Energy Vehicles

Hot selling China Supplier aluminum flat tube Micro-channel tubes multi port tube aluminium extrusion



NO. DESCRIPTION CONTENT
1 Material AA1070,3003,6061,6063 are typical
2 Temper F,T112,T3-T6,etc.
3 Length Up to 6000mm
4 Width/Diameter Up to 200mm
5 Height/Diameter Up to 200mm
6 Wall thickness 0.25 to 10mm
7 Dimension tolerance Follow up GB or ISO or custom
8 Shape Round,oval,square,hex,rectangle,etc.
9 Surface finish Mill finish,painting,powder coating,oxidation,etc.
10 Packing way To be packed in wood crate or case
11 Application Heat transfer,industrial,building fields



The Aluminium Microchannel Flat tubes,also called Aluminium Multi Port Extruded tubes,are unique tubes developed with highly refined manufacturing quality. With their large internal surface area, they can achieve more efficient heat transfer and hence are widely used in highly effective heat exchangers.
The Aluminium Microchannel Flat tubes,or Aluminium Multi Port Extruded tubes are unique tubes developed with the highest manufacturing quality and is characterized by the following properties:

1. Low energy costs
2. High performance
3. Low space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution
7. Low refrigerant fill

Commonly used material chemical composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05

Supply state and mechanical properties
Alloy Temper Tensile Strength Yield Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%

The corrosion resistance performance
Salt spray test ≥750hours

The pressure resistance performance
Automobile Condensers Household Condensers Evaporators
≥9MPa ≥13.5 MPa ≥3.5 MPa

Applications:
Our aluminium tubes are found mainly in applications such as condensers and evaporators for air conditioning systems as well as liquid lines for air conditioning, heater cores and radiators for engine cooling systems, charge air coolers and other cooling systems.

The Multi Port Extruded profiles are available in various sizes and alloys, ensuring the best properties for the purpose required.
MPE Width 7-120mm
Height 1-10mm
Wall thickness 0.2-0.5mm
Other non-standard dimensions are available upon request.

Package: In coil or Straight with fixed length.
Surface Treatment : With Zinc spraying or without Zinc spraying.

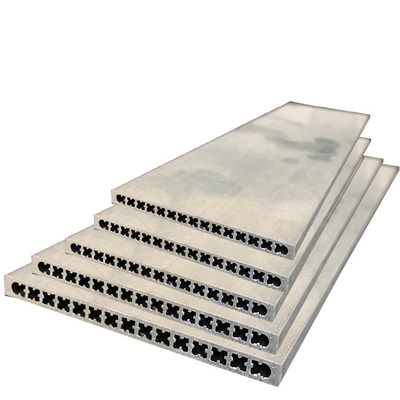

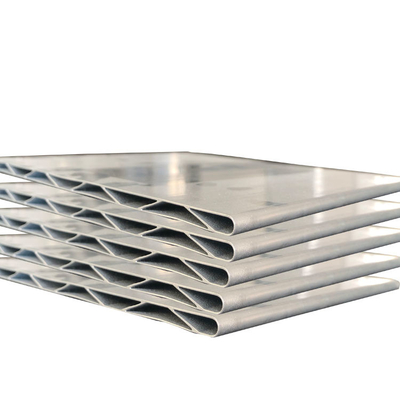

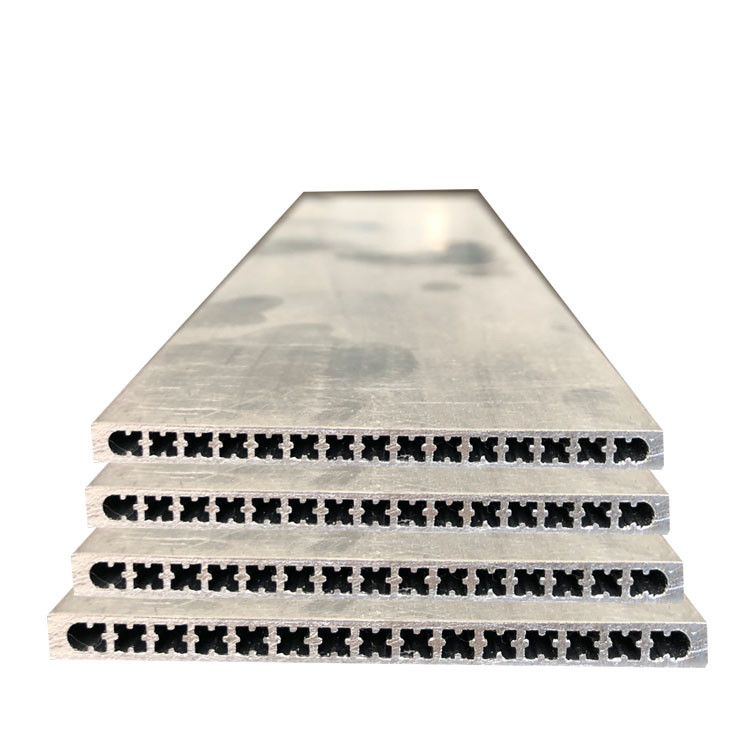

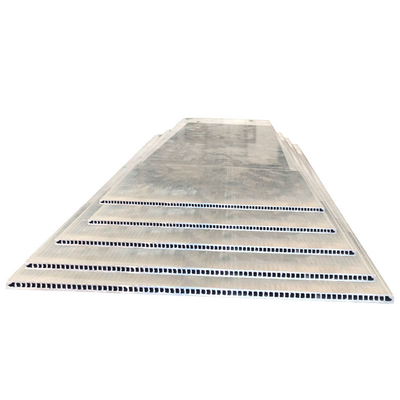

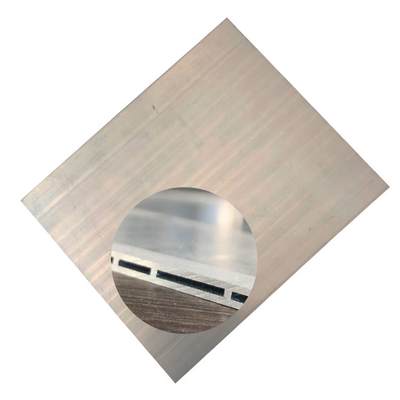

3003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles 03003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles 13003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles 23003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles 33003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles 4

Tags:

round aluminum tubing,

aluminium alloy tube,

oval aluminum tubing

Recommended Products
4343 40x20 Extrusion Dimple Hour Glass Pipe Aluminum Spare Parts

4343 40x20 Extrusion Dimple Hour Glass Pipe Aluminum Spare Parts

Contact Now
High Frequency Welding HFW Aluminum Radiator Tube For Heat Exchanger / Automotive

High Frequency Welding HFW Aluminum Radiator Tube For Heat Exchanger / Automotive

Contact Now
Extruded Aluminum Spare Parts Micro Multi Channel Aluminium Tube

Extruded Aluminum Spare Parts Micro Multi Channel Aluminium Tube

Contact Now
Parallel Flow Brazing Aluminum Tube For Automobile Radiator / Air Conditioner

Parallel Flow Brazing Aluminum Tube For Automobile Radiator / Air Conditioner

Contact Now
Electric Light Truck Liquid Based Battery Ribbon For BEV

Electric Light Truck Liquid Based Battery Ribbon For BEV

Contact Now
3003 Alloy Aluminum Liquid Cooling Tube For Hybrid Electric Aircraft

3003 Alloy Aluminum Liquid Cooling Tube For Hybrid Electric Aircraft

Contact Now
Cylindrical Battery Water Cooling Plate For Household Energy Storage

Cylindrical Battery Water Cooling Plate For Household Energy Storage

Contact Now
Products
PRODUCTS DETAILS
Products

Aluminium Foil Roll

Liquid Cold Plate

Battery Tray

Aluminum Microchannel Tube

Thermal Interface Material

Custom Aluminum Extrusions

Aluminum Alloy Sheet

Aluminum Air Battery
Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
3003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles
MOQ: 500KG
Price: Negotiation
Standard Packaging: Export Standard Packing
Delivery Period: 35days including tooling time
Payment Method: L/C, T/T
Supply Capacity: 100000ton/Every Year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO9001
Model Number
TR-CY006
Shape:
Square
Alloy:
Alloy
Thickness:
Customized
Component:
Cooling Fan
Minimum Order Quantity:
500KG
Price:
Negotiation
Packaging Details:
Export Standard Packing
Delivery Time:
35days including tooling time
Payment Terms:
L/C, T/T
Supply Ability:
100000ton/Every Year
Highlight

3102 Aluminum Microchannel Tube

,

New Energy Vehicles Aluminum Extruded Tube

,

Mill Finish Aluminum Microchannel Tube

Product Description

Aluminum 3003 3102 6063 Microchannel Tube For New Energy Vehicles

Hot selling China Supplier aluminum flat tube Micro-channel tubes multi port tube aluminium extrusion



NO. DESCRIPTION CONTENT
1 Material AA1070,3003,6061,6063 are typical
2 Temper F,T112,T3-T6,etc.
3 Length Up to 6000mm
4 Width/Diameter Up to 200mm
5 Height/Diameter Up to 200mm
6 Wall thickness 0.25 to 10mm
7 Dimension tolerance Follow up GB or ISO or custom
8 Shape Round,oval,square,hex,rectangle,etc.
9 Surface finish Mill finish,painting,powder coating,oxidation,etc.
10 Packing way To be packed in wood crate or case
11 Application Heat transfer,industrial,building fields



The Aluminium Microchannel Flat tubes,also called Aluminium Multi Port Extruded tubes,are unique tubes developed with highly refined manufacturing quality. With their large internal surface area, they can achieve more efficient heat transfer and hence are widely used in highly effective heat exchangers.
The Aluminium Microchannel Flat tubes,or Aluminium Multi Port Extruded tubes are unique tubes developed with the highest manufacturing quality and is characterized by the following properties:

1. Low energy costs
2. High performance
3. Low space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution
7. Low refrigerant fill

Commonly used material chemical composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05

Supply state and mechanical properties
Alloy Temper Tensile Strength Yield Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%

The corrosion resistance performance
Salt spray test ≥750hours

The pressure resistance performance
Automobile Condensers Household Condensers Evaporators
≥9MPa ≥13.5 MPa ≥3.5 MPa

Applications:
Our aluminium tubes are found mainly in applications such as condensers and evaporators for air conditioning systems as well as liquid lines for air conditioning, heater cores and radiators for engine cooling systems, charge air coolers and other cooling systems.

The Multi Port Extruded profiles are available in various sizes and alloys, ensuring the best properties for the purpose required.
MPE Width 7-120mm
Height 1-10mm
Wall thickness 0.2-0.5mm
Other non-standard dimensions are available upon request.

Package: In coil or Straight with fixed length.
Surface Treatment : With Zinc spraying or without Zinc spraying.

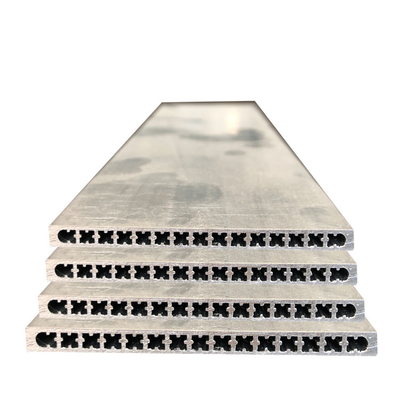

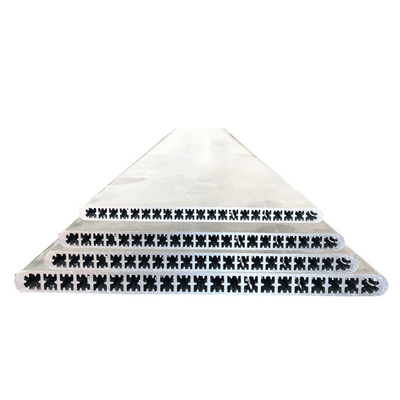

3003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles 03003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles 13003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles 23003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles 33003 3102 6063 Aluminum Microchannel Tube For New Energy Vehicles 4
