Structural Extruded Parallel Flow Aluminum Flat Tube 3102 Alloy

MOQ:	500KG
Price:	Negotiation
Standard Packaging:	Export Standard Packing
Delivery Period:	35days including tooling time
Payment Method:	L/C, T/T
Supply Capacity:	100000ton/Every Year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO14001

Model Number

TR-CY007

Type:

Window & Door Aluminium Profile, Heat Sink Aluminium Profile, Glass Wall Aluminium Profile, Transport Aluminium Profile, Industrial Aluminium Profile

Shape:

Round,Square,Rectangle,etc Or Customized

Grade:

1000,3000,6000 Series Are Typical

Alloy:

Alloy

Highlight:

Parallel Flow Aluminum Extruded Tube

3102 Aluminum Extruded Tube

Parallel Flow Aluminum Flat Tube

Product Description

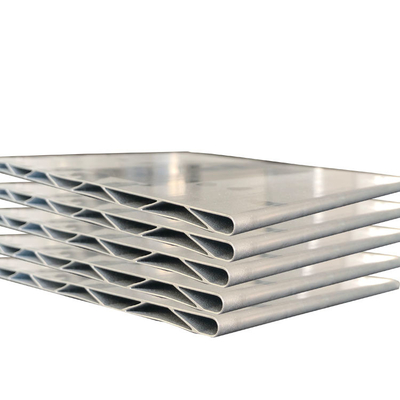

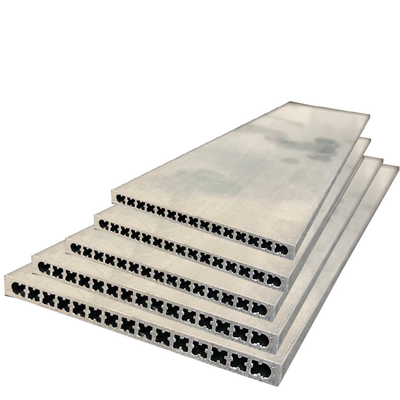

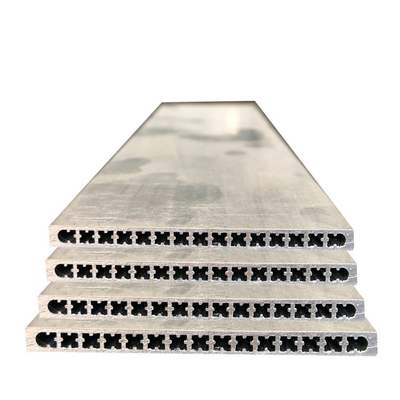

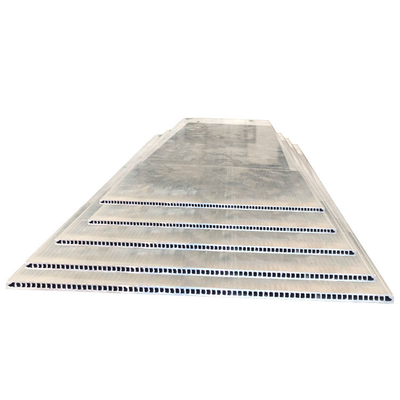

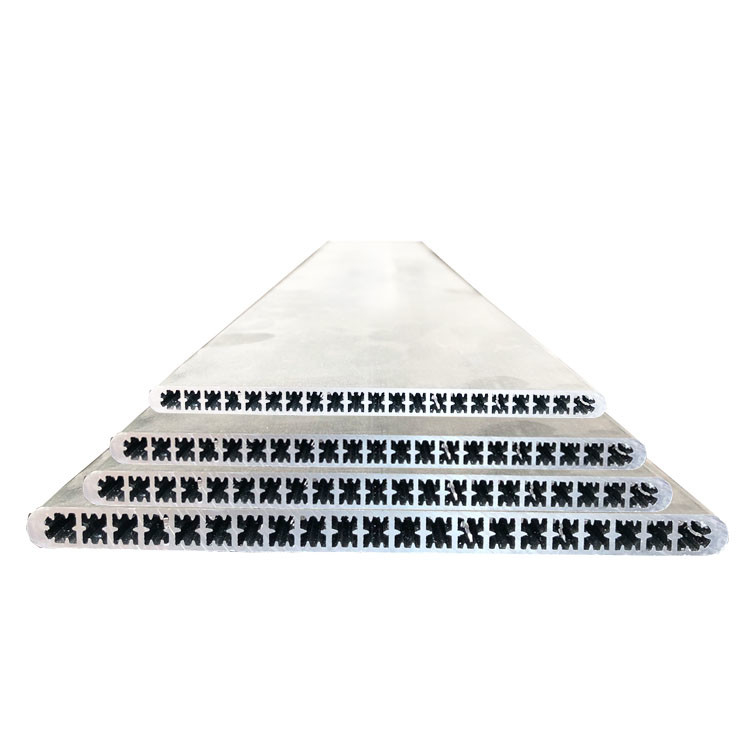

Structural Extruded Aluminum Tube Parallel flow aluminum flat tube

The product has strong Promotion potential. Micro-channel heat exchanger technology has the potential to be promoted to air-energy water heaters in the field of air-conditioning manufacturing, which can greatly enhance the competitiveness of products and the ability of sustainable development of enterprises.Compared with conventional heat exchangers, micro-channel heat exchangers are not only small in size, large in heat transfer coefficient, high in heat exchange efficiency, which can meet higher energy efficiency standards, but also have excellent pressure resistance. CO2 can be used as a working fluid for refrigeration. Environmental protection requirements have attracted widespread attention from academic and industrial circles at home and abroad. At present, the key technology of microchannel heat exchanger-the production method of microchannel parallel flow tube has gradually matured in China, which makes the large-scale use of microchannel heat exchanger possible. We provide Aluminum Embossed Sheet, Aluminum Extrusion Sheet, Aluminum Micro channel Tube, Aluminum High Frequency Welding Pipe, Aluminum heat Pipe and so on.

Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, core material and other aluminum products like Aluminum Coil, Aluminum Foil, Aluminum Strip, aluminum radiator tube for vehicle, Aluminum Pipe, Aluminum Tube , flat aluminum micro channel tube etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, Hot rolling , cold rolling, finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.

1. Application:

1) Car, air conditioner, water cooling for heat sink

2) In the field of commercial:

such as household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler

2. Alloy States:

1) 1000 series:1050, 1100, 1197

2) 3000 series:3102, 3003

3) 4000 series: 4043 etc

3. Temper: O/F/H111/H112 etc

4. Mechanical Properties of flat aluminum micro channel tube

No.	Alloy	Temper	Tensile Strength(Mpa)	Yield Strength(Mpa)	Elogation(%)
1	1050	O/F/H111/H112	≥ 65	≥ 20	≥ 25
2	1100	O/F/H111/H112	≥ 75	≥ 20	≥ 25
3	1197	O/F/H111/H112	≥ 80	≥ 25	≥ 20
4	3102	O/F/H111/H112	≥ 75	≥ 20	≥ 25
5	3R03	O/F/H111/H112	≥ 80	≥ 25	≥ 20

5. Chemical Composition

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤ 0.25	≤ 0.40	≤ 0.05	≤ 0.05	≤ 0.05	-	≤ 0.05	≤ 0.05	≤ 0.03
2	1100	≤ 0.95(Fe+Si)		0.05-0.20	≤ 0.05	-	-	≤ 0.10	-	-
3	1197	≤ 0.15	≤ 0.20	0.40-0.55	0.10-0.20	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
4	3102	≤ 0.40	≤ 0.70	≤ 0.10	0.05-0.40	-	-	≤ 0.30	-	≤ 0.10
5	3R03	≤ 0.15	≤ 0.15	≤ 0.01	0.90-1.10	≤ 0.03	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05

6. Size Tolerance

Width	Thickness	Wall Thickness	Length	Lateral Curvature	Frontal Curvature	Twsiting Dgree
± 0.05mm	± 0.03mm	± 0.05mm	± 0.03mm	≤ L× 0.2%	≤ L× 0.25%	≤ L× 0.15%

7. Our products will be tested in strict standard before delivery, some data for your reference.

No	Products' Testing Name	Contents and requests
1	Corrosion Resistance	Salt spray test: ≥ 750 hours
2	Zn Coating Standards	6/8/10/13± 2g/square meter
3	Flux Cotaing Standards	10-15± 2g/square meter

8. Commercial terms

Minimum Order Quantity:	100pcs, less quantity can negotiate
Price:	negotiation
Payment Terms:	T/T or LC
Supply Ability:	1000,000 pcs per year
Delivery Time:	15-30 working days after received your down payment
Packaging Details:	Standard export packaging
