3003 Vacuum Brazing Aluminum Stamped Liquid Water Coolant Cooling Cold Plate For Automotive Lithium-Ion Batteries

MOQ: Sample trial can be arranged
Price: Negotiation
Standard Packaging: Ply-wood box specialized for export
Delivery Period: 30days including tooling time
Payment Method: T/T
Supply Capacity: 100000 tons yearly
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO9001,ISO14969
Model Number
TR-CY014
Product Name:
Aluminum Cold Plate For Automotive Lithium-ion Batteries
Type:
Aluminum Cold Plate
Alloy:
4343/3003
Temper:
O-H112
Process:
Stamping
Application:
New Energy Vehicle Battery Cooling
Cell Type:
Prismatic Cells
Sample:
Available
Highlight:

3003 Alloy Aluminum Cold Plate

,

Brazing Aluminum Cold Plate

,

Aluminum Cooling Plate Brazing

Product Description

Vacuum Brazing Aluminum Liquid Cold Plate For EV Battery Module



Description

The liquid cooling plate for EV is very popular for prismatic batteries module. Trumony design, make aluminum cooling cold plate for more than 10 years with rich experience . We can provide design package service of cold plate to you .The aluminum battery cooling cold plate heat exchanger is suitable for passegar cars, electric vehicle, heavy duty trucks and commercial cars. In addition, we also can supply aluminum micro channel snake cooling tube for 18650,21700 and 4680 cylindrical cells like Tesla.





1). Applications: widely used in new energy cars, battery cooling ststems, thermal management solutions
2). Technology: Brazing technique, CNC maching, Welding etc
3). Main production machine: Fully automatic tunnel brazing wire, machining center, oil press,Water nozzle brazing machine, argon arc welding machine,Ultrasonic cleaning equipment, Prespraying equipment etc
4). Main tesing equipment: Gas inspection equipment (water inspection),Gas inspection equipment (dry inspection),Press tester, Flow resistance tester, Salt spray tester Material tension testing machine Corrosion tester in runner, Vacumn Helium leak detection equipment





Cladding Materials



Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 － 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 － 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 － 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 － 0.10 0.05 0.1 5
3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 － 0.01 6




Application of cooling plate



The cold plate’s large internal surface area combined with its low pressure drop makes it ideal for use with viscous and low heat capacity fluids.

Micro-channel liquid cold plates are ideal for cooling small, high heat density components such as thermoelectric modules. The low-profile nature of these cold plates works well in applications with limited space that also require high performance cooling.

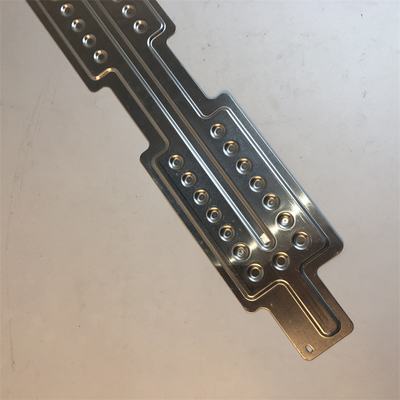

Liquid cooling plate for EV

3003 Vacuum Brazing Aluminum Stamped Liquid Water Coolant Cooling Cold Plate For Automotive Lithium-Ion Batteries 0

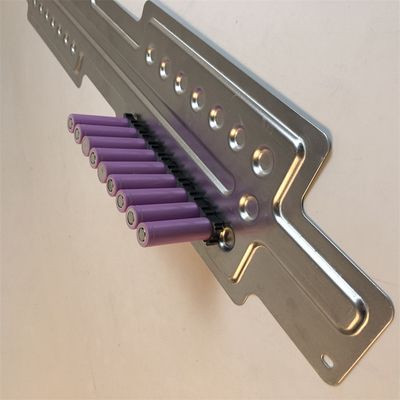

Aluminum micro channel cooling plate

3003 Vacuum Brazing Aluminum Stamped Liquid Water Coolant Cooling Cold Plate For Automotive Lithium-Ion Batteries 1

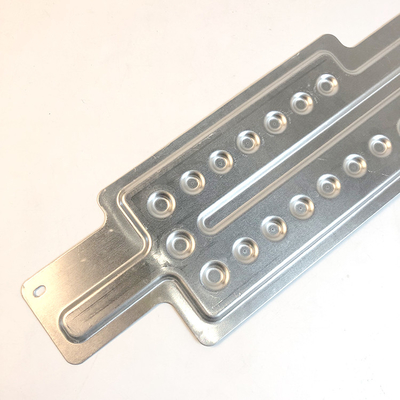

Cylindrical cell cooling tube / snake tube / cooling ribbon

3003 Vacuum Brazing Aluminum Stamped Liquid Water Coolant Cooling Cold Plate For Automotive Lithium-Ion Batteries 2
