Prismatic Cell Battery Aluminum Cooling Plate Serpentine Shape Customized

Products

Aluminum Air Battery

sales4@trumony.com

+86 18018119117

Contact Now

Prismatic Cell Battery Aluminum Cooling Plate Serpentine Shape Customized

MOQ:	Sample trial can be arranged
Price:	Negotiation
Standard Packaging:	Ply-wood box specialized for export
Delivery Period:	30days including tooling time
Payment Method:	T/T
Supply Capacity:	100000 tons yearly

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001,ISO14969

Model Number

TR-CY021

Product Name:

Customized Prismatic Cell Battery Cooling System In Electric Vehicles

Keyword:

Aluminum Cooling System

Shape:

Plate

Grade:

3000 Series

Color:

Silver

Surface:

Coating/Insulation/Film

Temper:

O,F,H111,H112

Application:

New Energy Vehicle Battery Cooling

Material:

Alloy

Alloy:

3003,3102,1100,1050,6061

Pack:

Cartons

Highlight:

Serpentine Shape Aluminum Cooling Plate

Prismatic Cell Battery Aluminum Cooling Plate

Brazing Alloy Aluminum Cooling Plate

Product Description

Customized Prismatic Cell Battery Aluminum Cooling System In Electric Vehicles

Brazing Liquid Cooling Plates is a manufacturing process for connecting components to achieve higher thermal performance and lighter solutions. Vacuum brazed cold plates refers to a kind of water cold plate which are created by machining two metal plates with internal channels and fin structures which are then carefully sealed together inside a vacuum chamber for heating.

1. No flux process can be used to clean parts

2. Highly repeatable and controllable batch processing

3. Uniform material characteristics during and after brazing

4. Internal joints can be produced even in complex structures to improve the overall strength of components

Battery cold plate Specifications

Item	Customized Prismatic Cell Battery Aluminum Cooling System In Electric Vehicles
Application	electrical vehicles, battery cooling systems, thermal management solutions etc
Cell Type	prismatic cell and pouch cell
Shape	Serpentine cooling tube, brazing alloy cooling plate
Alloy	3003 or customized
Temper	O.H14,H16 etc.

Cladding Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
3003	0.6	0.7	0.05-0.20	1.0-1.5	－	0.1	0.05	0.03	1
3003+1%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	0.5-1.50	0.05	0.05	2
3003+1.5%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	1.0-2.0	0.05	0.05	3
3003+1.5%Zn+Zr	0.5-1.0	0.7	0.05-0.20	1.0-1.6	－	1.0-2.0	0.05-0.2	-	4
3003+0.5%Cu	0.6	0.7	0.30-0.70	1.0-1.5	－	0.10	0.05	0.1	5
3005	0.6	0.7	0.20-0.40	1.0-1.5	0.20-0.60	0.25	－	0.01	6

Brazed cold plate has unparalleled flexibility in design, as it is not limited by the bending radius limitations of pressure tube cold plate. Heat pipes can also be embedded in the plate to improve heat dissipation. Internal fin structures can be inserted inside the vacuum brazed cold plate channels to increase the surface area in contact with the working fluid, providing greater and better heat transfer.

As a result of this, vacuum brazed cold plates are the liquid cooling thermal module of choice for power generation, electric car batteries, fuel cell components, and various military, medical and avionics applications. Vacuum brazing has higher cost, but also very high reliability and and the joints are very clean. Large Numbers of cold plates can also be batched processing.

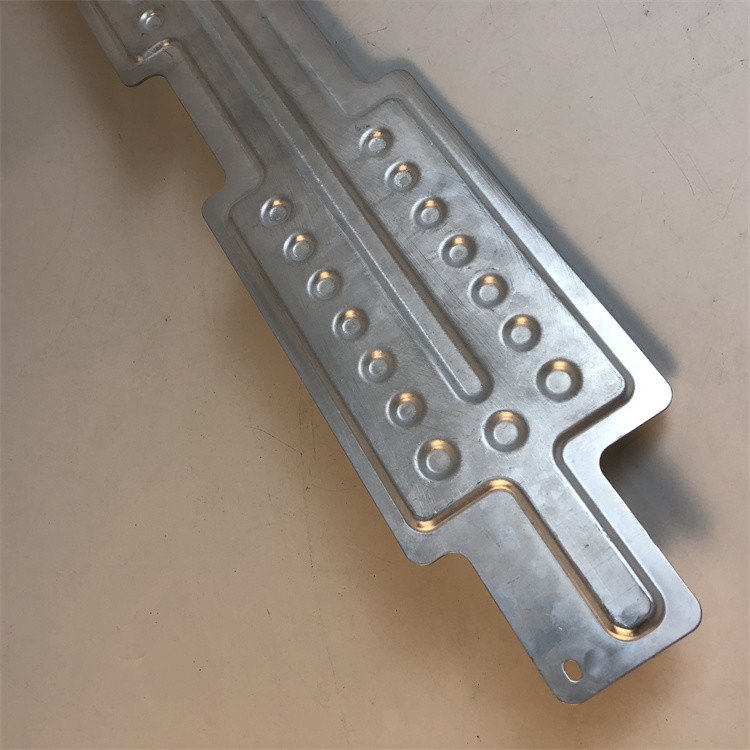

Prismatic Cell Battery Aluminum Cooling Plate Serpentine Shape Customized 0

Tags:

Products

MOQ:	Sample trial can be arranged
Price:	Negotiation
Standard Packaging:	Ply-wood box specialized for export
Delivery Period:	30days including tooling time
Payment Method:	T/T
Supply Capacity:	100000 tons yearly

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001,ISO14969

Model Number

TR-CY021

Product Name:

Customized Prismatic Cell Battery Cooling System In Electric Vehicles

Keyword:

Aluminum Cooling System

Shape:

Plate

Grade:

3000 Series

Color:

Silver

Surface:

Coating/Insulation/Film

Temper:

O,F,H111,H112

Application:

New Energy Vehicle Battery Cooling

Material:

Alloy

Alloy:

3003,3102,1100,1050,6061

Pack:

Cartons

Minimum Order Quantity:

Sample trial can be arranged

Price:

Negotiation

Packaging Details:

Ply-wood box specialized for export

Delivery Time:

30days including tooling time

Payment Terms:

T/T

Supply Ability:

100000 tons yearly

Highlight

Serpentine Shape Aluminum Cooling Plate

Prismatic Cell Battery Aluminum Cooling Plate

Brazing Alloy Aluminum Cooling Plate

Product Description

Customized Prismatic Cell Battery Aluminum Cooling System In Electric Vehicles

1. No flux process can be used to clean parts

2. Highly repeatable and controllable batch processing

3. Uniform material characteristics during and after brazing

4. Internal joints can be produced even in complex structures to improve the overall strength of components

Battery cold plate Specifications

Item	Customized Prismatic Cell Battery Aluminum Cooling System In Electric Vehicles
Application	electrical vehicles, battery cooling systems, thermal management solutions etc
Cell Type	prismatic cell and pouch cell
Shape	Serpentine cooling tube, brazing alloy cooling plate
Alloy	3003 or customized
Temper	O.H14,H16 etc.

Cladding Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
3003	0.6	0.7	0.05-0.20	1.0-1.5	－	0.1	0.05	0.03	1
3003+1%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	0.5-1.50	0.05	0.05	2
3003+1.5%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	1.0-2.0	0.05	0.05	3
3003+1.5%Zn+Zr	0.5-1.0	0.7	0.05-0.20	1.0-1.6	－	1.0-2.0	0.05-0.2	-	4
3003+0.5%Cu	0.6	0.7	0.30-0.70	1.0-1.5	－	0.10	0.05	0.1	5
3005	0.6	0.7	0.20-0.40	1.0-1.5	0.20-0.60	0.25	－	0.01	6

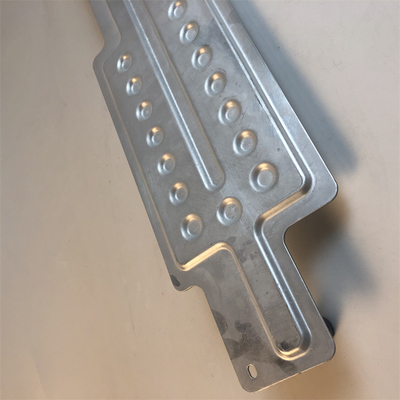

Prismatic Cell Battery Aluminum Cooling Plate Serpentine Shape Customized 0
