Roll Bonded Liquid Cold Plates For Cooling Electronics

MOQ: Sample trial can be arranged
Price: Negotiation
Standard Packaging: Ply-wood box specialized for export
Delivery Period: 30days including tooling time
Payment Method: T/T
Supply Capacity: 100000 tons yearly
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO9001,ISO14969
Model Number
TR-CY025
Product Name:
Roll Bonded Liquid Cold Plates For Cooling Electronics
Keyword:
Roll Bonded Liquid Cold Plates
Shape:
Plate
Grade:
3000 Series
Color:
Silver
Surface:
Coating/Insulation/Film
Temper:
O,F,H111,H112
Application:
New Energy Vehicle Battery Cooling
Material:
Alloy
Alloy:
3003,3102,1100,1050,6061
Pack:
Cartons
Highlight:

Roll Bonded Liquid Cold Plates

,

Roll Bonded Aluminum Cooling Plate

,

Insulation Liquid Cold Plates

Product Description

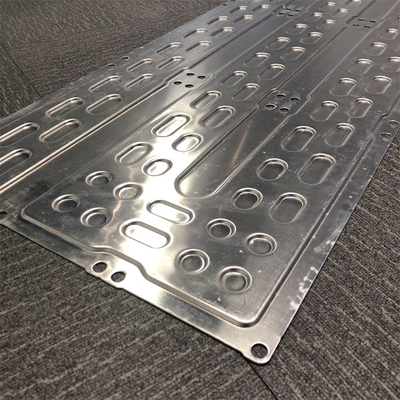

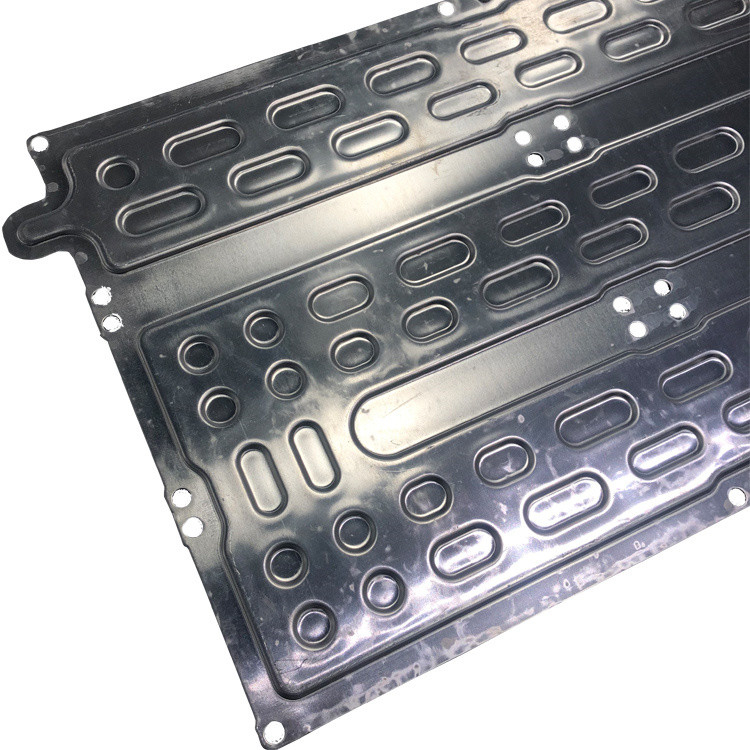

Roll Bonded Liquid Cold Plates For Cooling Electronics



Roll Bonded liquid cold plates are generally made of two spaced thin sheets, (laser) welded to each other. The space between the plates is pressurized to deform one or both plates in order to provide a space in which a cooling medium can circulate.



Once the two thin sheets are laser welded together - (by welding a custom circle pattern) - spot welds are then created to form channels. Additional welding paths are often added to allow adjustments and to control direction and velocity which optimizes the cold plate.

They are a highly versatile which allows them to be welded, formed, or fitted for your application. It can be applied in irregular shapes, at high pressures, high temperatures, or in corrosive environments. Eliminating any machining process make this dimple, effective and and greatly lowering manufacturing costs.

The plate is created by fully automatic laser welding and forming process. Its unique pillow structure makes fluid into optimum turbulence state to achieve highly efficient heat exchange. It also boasts various advantages such as dust proof, high temperature and high-pressure resistance and easy cleaning.





1). Applications: widely used in new energy cars, electrical vehicles, battery cooling systems, thermal management solutions etc

2). Technology: Brazing technique, CNC maching, Welding and so don

3). Main Equipments: Fully automatic tunnel brazing wire, CNC machining center, oil pressing,Water nozzle brazing machine, argon arc welding machine,Ultrasonic cleaning equipment, Prespraying equipment etc

4). Main tesing equipment: Gas inspection equipment (water inspection),Gas inspection equipment (dry inspection),Press tester, Flow resistance tester, Salt spray tester Material tension testing machine Corrosion tester in runner, Vacumn Helium leak detection equipment

Battery cold plate Specifications

Item  Roll Bonded Liquid Cold Plates For Cooling Electronics
Application electrical vehicles, battery cooling systems, thermal management solutions etc
Cell Type prismatic cell , pouch cell
Shape   brazing alloy cooling plate
Alloy 3003 or customized
Temper O.H14,H16 etc.














Roll Bonded Liquid Cold Plates For Cooling Electronics 0
