Product Details:
|
| Product Name: | 500W Aluminum Air Battert Stack | Material: | Aluminum Plates, Graphene |
|---|---|---|---|
| Function: | Self-generating Device | Size: | 519*236*327 Mm |
| Weight: | 20 Kg | Storage Capacity: | 18 Kwh |
| Current: | ＜45 A | Aluminum Plates: | 18 Pcs |
| High Light: | 18 Kwh Aluminum Air Battery,Aluminum Air Battery 500W,18pcs Plates Aluminum Air Battery |
||

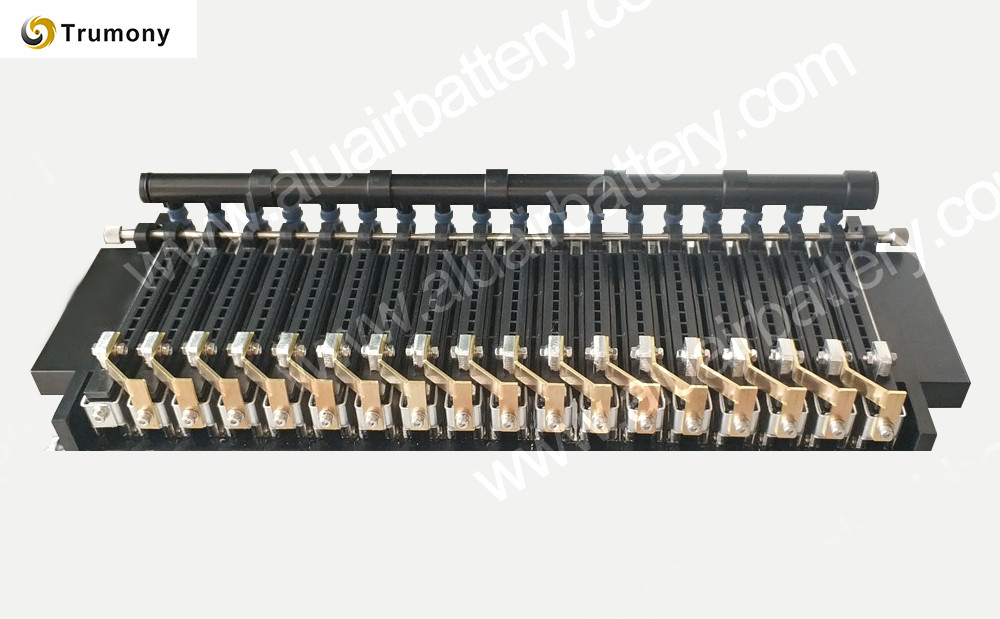

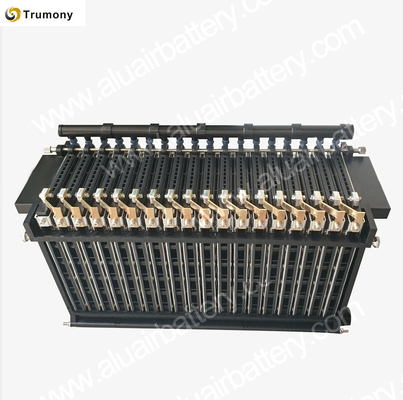

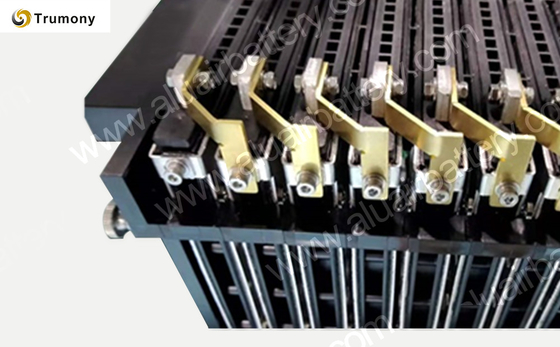

500W Aluminum Air Battery Enengy Generator Emergency Battery
1. Descriptions
This 500 W aluminum air battery is a self-genetating device that consists of 18 aluminum plates. The working priciple of this devide is that uses aluminum sheets as anode and graphene as cathode to produce electricity. The aluminum sheets could be replaced for mechanical cycle. The air electrodes could work up to 500 hours.
This battery stack is very suitable for emergency use when the power is off. It could be used for loading off grid device or as a backup power in remote mountain areas, hospital emergency power, industrial emergency power, mining industrial power etc. Aluminum air battery is a modular product and could be connnected in series.
2. Specifications
| Number of aluminum plates | 18 pcs |
|
Voltage(OCV) |
＜36 V |
|
Working voltage |
18-23V (4-6mol/L KOH,@10-40℃) |
|
Maximum current |
45A |
|
Size |
519*236*327mm |
|
Storage capacity |
Approxiately 18kWh |
|
Module weight |
16 kg |
|
Electrolyte |
4-6mol/L KOH |
|
Working mode of electrolyte |
Cycle |
3. Advantages
(1) Long storage time
This Aluminum air battery could be stored more than 10 years when we keep it dry. What's more, there is no energy lose during the storage time.
(2) Maintance free
The device is free of maintance and the aluminum plates could be replaced for machenical cycle.
(3) Customized
The voltage and the current could be adapted to meet your need. This 18 pcs aluminum air battery stack is standard, we could increase and decrease the aluminum plates to change the output power or storage capacity.
4. Company descriptions
1. Manufacturing and exporting aluminum products since 2006.
2. Our products meet the highest industry standards and our company is ISO certified.
3. We helped clients in more than 54 countries being succeed in their fields using our knowledge and expertise in aluminum manufacturing
4. With our computer controlled automatic machine and experienced engineers,we can provide our product with consistent quality and traceability.Custom manufacturing and development is also possible with our R&D capability.
So far, Trumony has been exported to more than 55 countries and regions around the world, and the product performance fully meets customer procurement needs.
No matter what you need,we have the right solution.
