Product Details:
|
| Product Name: | 500W Aluminum Air Battert Stack | Material: | Aluminum Plates, Graphene |
|---|---|---|---|
| Function: | Self-generating Device | Size: | 519*236*327 Mm |
| Weight: | 20 Kg | Storage Capacity: | 18 Kwh |
| Current: | ＜45 A | Aluminum Plates: | 18 Pcs |
| High Light: | 500W Metal Air Battery,500W Aluminum Air Batteries,Metal Air Battery Single Cell Stack |
||

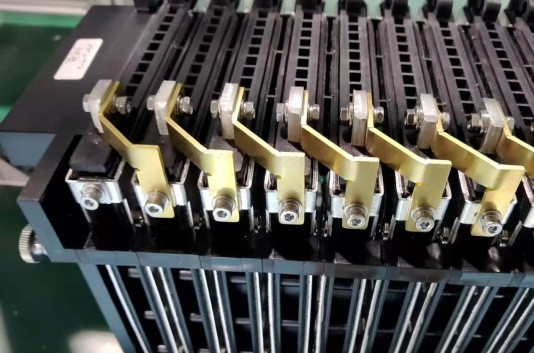

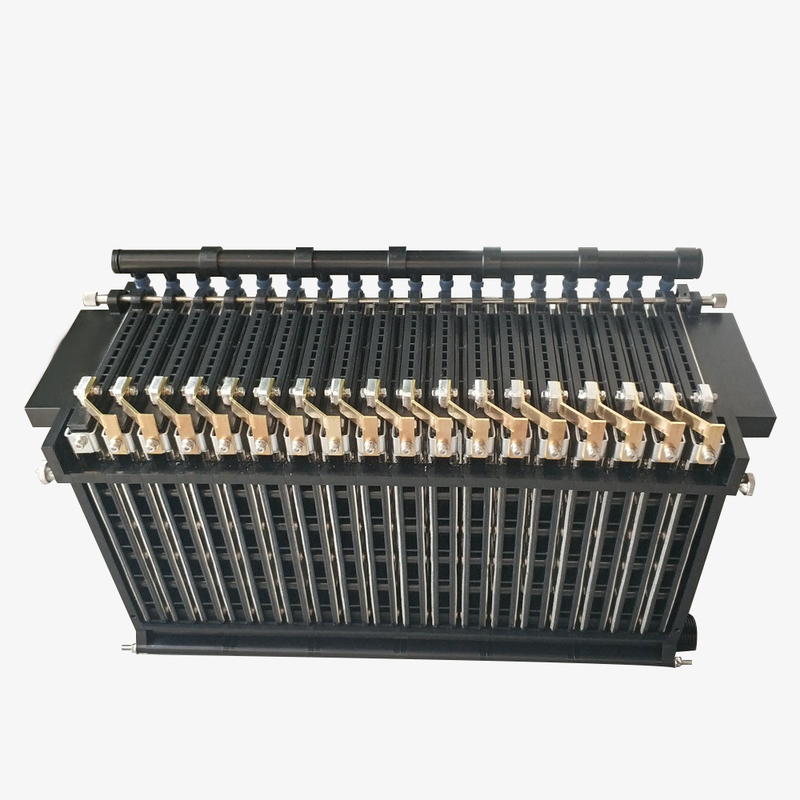

500W Metal Air Battery Single Cell Stack Emergency Power Generator
1. Descriptions
Aluminum air batteries generate electricity from the reaction of oxygen in the air and aluminum. Their energy density has one of the highest energy densities in all batteries, but they are not widely used because of the high anode cost and the problem of removing by-products when using traditional electrolytes, which also limits their uses. Military applications. However, aluminum batteries for electric vehicles have the potential for up to eight times the mileage range of lithium-ion batteries and a significantly lower total weight.
2. Specifications
| Number of aluminum plates | 18 pcs |
|
Voltage(OCV) |
＜36 V |
|
Working voltage |
18-23V (4-6mol/L KOH,@10-40℃) |
|
Maximum current |
45A |
|
Size |
519*236*327mm |
|
Storage capacity |
Approxiately 18kWh |
|
Module weight |
16 kg |
|
Electrolyte |
4-6mol/L KOH |
|
Working mode of electrolyte |
Cycle |
| Cut off voltage | 18V |
| Maximum current | 45A |
| Nominal voltage | 21.6V |
| Nominal current | 30A |
| Nominal power | 650W |
| Maximum power | 800W |
| Electrolyte | 6M KOH solution |
3. Advantages
1. Low noise
The noice of startup operation is below 50dB, and it can be used quietly in the community all day long to avoid disturbing people.
2. Big capacity
The current power product can store power of 50-100kwh, which can supply the base station with uninterrupted power supply for 25h, reducing the manual handling cost of diesel generator.
3. Power adjustable
Modular design of power supply, according to the base station electricity data, can allocate the power of aluminum fuel power, save cost.
4. Maintenance free
The storage time of Power Generator is long, and the maintenance and replacement of equipment are not needed for ten years, which saves the maintenance cost.
5. Remote control
All base station aluminum fuel power supply can be remote monitoring power consumption and maintenance, real-time feedback, digital, unmanned management.
6. Safe and reliable
Aluminum fuel power mainly consists of water medium and aluminum plate for power generation, which is not flammable and explosive, and safe for storage and transportation.
