Flat Condenser Mill Finish Aluminum Extruded Tube Multi Port

Products

Aluminum Air Battery

sales4@trumony.com

+86 18018119117

Contact Now

Flat Condenser Mill Finish Aluminum Extruded Tube Multi Port

MOQ:	500KG
Price:	Negotiation
Standard Packaging:	Export Standard Packing
Delivery Period:	35days including tooling time
Payment Method:	L/C, T/T
Supply Capacity:	100000ton/Every Year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001

Model Number

TR-CY040

Type:

Extruded Multi- Port Aluminum Flat Condenser Tube

Keyword:

Aluminium Flat Condenser Tube

Technical:

Extruded

Alloy:

1000,3000,

Temper:

O, H14/H16

Tube Size:

Customized

Wall Thickness:

0.25mm, 0.28mm Or Customized

Shape:

Surface:

Mill Finished

Highlight:

Flat Condenser Aluminum Extruded Tube

Mill Finish Aluminum Extruded Tube

Aluminum Extruded Tube Multi Port

Product Description

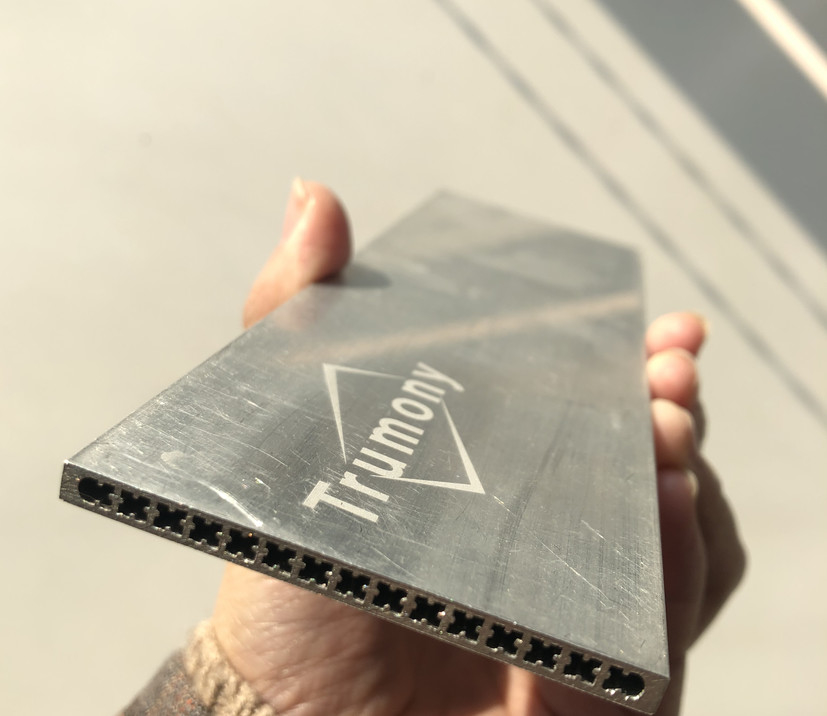

Extruded Multi- port Aluminum Flat Condenser Tube

Aluminium micro channel tube is an important spare part for auto condenser and evaporator.

Benefit from our own tooling center, lots of ready molds are with us.

Based on good channel flow design, coolant can run inside the tube and ensure high cooling efficiency, You can also design your own tube and send us the drawing through our sales representatives, we can do the custom manufacturing based on your drawing.

Specification

Item	Extruded Multi- port Aluminum Flat Condenser Tube
Size	Customized or choose our existing stock size
Alloy	1050,1100,3003,3102
Temper	O, H14/H16/H24
Feature	Low energy cost, high performance and pressure reisistance
Application	Radiator, condenser, evaporator, oil cooler, heater coil

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1050	≤0.25	≤0.4	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.1	---	---
3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05

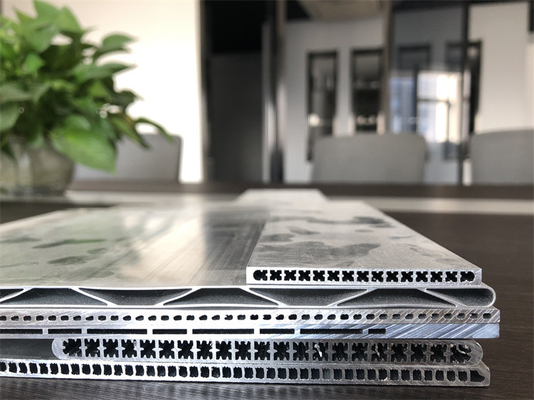

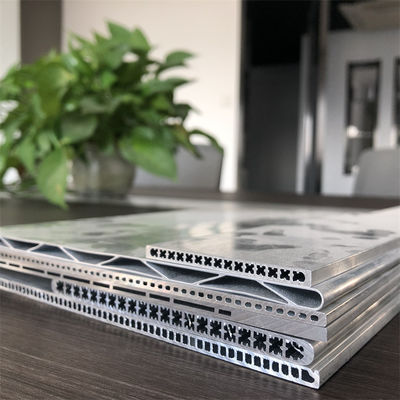

Multiport extruded aluminium tube(MPE)-which has large internal space which gives better efficiency for heat transfer. With the improvement of the tooling, we can make the mpe very precisely,also due to improvement of the aluminium extrusion technology ,an all-aluminium brazed heat exchangers using MPE will also be lighter in weight while still have the good heat exchange performance as the cooper and other heavy and expensive metal, now we can find MPEs are primarily used for the following application.
