Aluminum Micro Channel Tube For Household Air Conditioning

MOQ: 500KG
Price: Negotiation
Standard Packaging: Export Standard Packing
Delivery Period: 35days including tooling time
Payment Method: L/C, T/T
Supply Capacity: 100000ton/Every Year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO9001
Model Number
TR-CY041
Type:
Household Air Conditioning Aluminum Micro Channel Tube
Keyword:
Aluminum Micro Channel Tube
Technical:
Extruded
Alloy:
1000,3000,
Temper:
O, H14/H16
Tube Size:
Customized
Wall Thickness:
0.25mm, 0.28mm Or Customized
Shape:
Oval
Surface:
Mill Finished
Highlight:

Mill Finished Micro Channel Tube

,

Aluminum Micro Channel Tube

,

Air Conditioning Aluminum Extruded Tube

Product Description

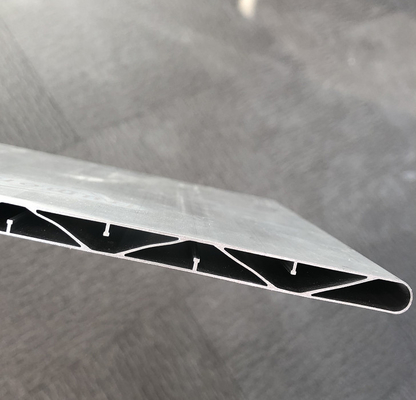

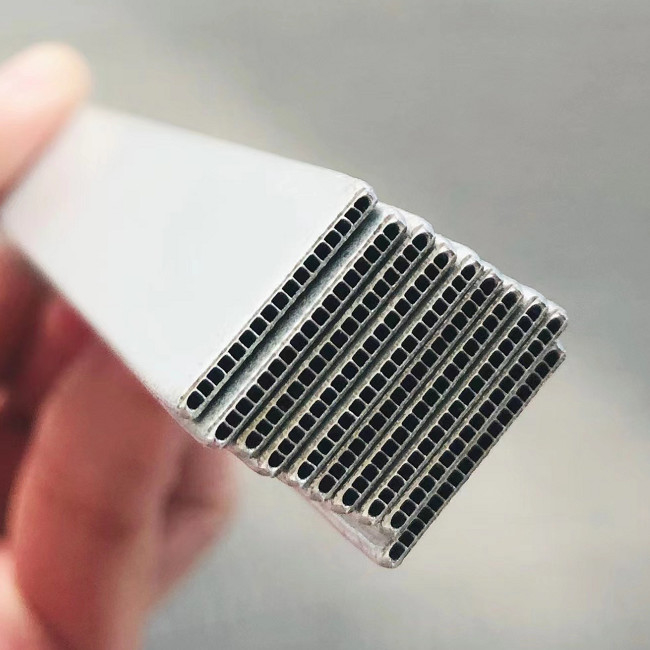

Household Air Conditioning Aluminum Micro Channel Tube



Also called multi-port extrusion, this flat and rectangular extruded tube is made of several channels that increase the heat transfer through a higher surface per volume ratio.

Micro-channel tubes are available in various sizes and alloys, ensuring the best properties for the purpose required, and can be delivered with a coating, ready for assembly and oven brazing.

Specification
Item Household Air Conditioning Aluminum Micro Channel Tube
Size Customized
Alloy 1050,1100,3003,3102
Temper O, H14/H16/H24
Feature Low energy cost, high performance and pressure reisistance
Application  Radiator, condenser, evaporator, oil cooler, heater coil















Features



1-Aluminium Micro-channel Tube is a kind of high precision extruded aluminium tube, also called multi-port extrusion tube (MPE tube) and aluminium micro multi-channel tube. This flat and rectangular extruded tube is made of several channels that increase the heat transfer through a higher surface per volume ratio.



2-Aluminium Micro-channel Tubes are available in various sizes and aluminium alloys, ensuring the best performance for the purpose required and can be delivered with zinc or flux coating, ready for assembly and oven brazing.



More micro channel tube for choosing :



● Aluminium Micro-channel Tube

● Parallel Flow Aluminium Flat Tube

● Zinc-coated Aluminium Tube

● Pre-Flux Coated Aluminium Tube

● Si Flux Coated Aluminium Tube

● Large Multi-channel Tube(width range 50-200mm)

● Double Row Joint Multi-channel Flat Tube




Aluminum Micro Channel Tube For Household Air Conditioning 0
