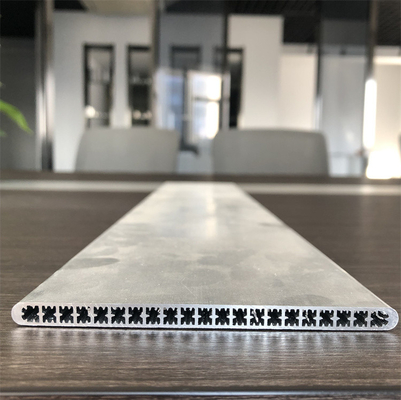

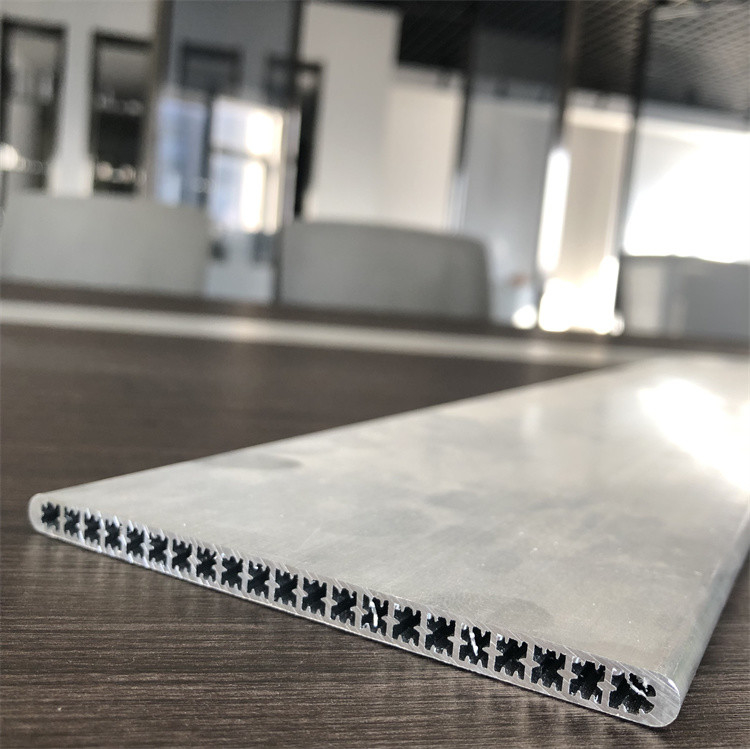

Aluminum Extruded Tube Micro Channel For Automotive Radiator

MOQ: 500KG
Price: Negotiation
Standard Packaging: Export Standard Packing
Delivery Period: 35days including tooling time
Payment Method: L/C, T/T
Supply Capacity: 100000ton/Every Year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO9001
Model Number
TR-CY043
Type:
Extruded Aluminum Micro-channel Tube For Automotive Radiator
Keyword:
Tube For Automotive Radiator
Technical:
Extruded
Alloy:
1000,3000,
Temper:
O, H14/H16
Tube Size:
Customized
Wall Thickness:
0.25mm, 0.28mm Or Customized
Shape:
Oval, Round,
Surface:
Mill Finished
Highlight:

Micro Channel Extruded Aluminum Tubing

,

Automotive Radiator Aluminum Extruded Tube

,

Aluminum Extruded Tube Micro Channel

Product Description

Extruded Aluminum Micro-channel Tube For Automotive Radiator



Aluminium multi-channel tube, also called multi-port extrusion, is an excellent candidate for most heat transfer applications. This flat and rectangular extruded tube is made of several channels that increase the heat transfer through a higher surface per volume ratio. It’s lightweight, corrosion-resistant, and an excellent choice wherever strength is required.

Our factory in producing a multi-channel aluminium tube, so it can provide various multi-channel aluminium tubes with different sizes, shapes, aluminium alloy. Trumony Aluminium is a professional supplier of Aluminium Alloy Tube with high quality, the aluminium tube price is reasonable. Our products have excellent economic performance as well as excellent mechanical performance and safety.


Specification

Item Extruded Aluminum Micro-channel Tube For Automotive Radiator
Size Customized
Alloy 1050,1100,3003,3102
Temper O, H14/H16/H24
Feature Low energy cost, high performance and pressure reisistance
Application  car Radiator, condenser, evaporator, oil cooler, heater coil















Chemical Composition

No Alloy Grades Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) --- 0.05~0.20 ≤0.05 --- --- ≤0.10 --- ---
3 1197 ≤0.15 ≤0.20 0.40~0.55 0.10~0.20 ≤0.03 ≤0.05 ≤0.05 ≤0.05 ≤0.05
4 3102 ≤0.40 ≤0.70 ≤0.10 0.05~0.40 --- --- ≤0.30 --- ≤0.10
5 3R03 ≤0.15 ≤0.15 ≤0.01 0.90~1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05



Aluminium multi-channel tube is also called aluminium multi-port tube. It's for the auto air-conditioning industry.



Aluminium multi-channel tube contains a common aluminum pipe sharp corner pipe, internal tooth pipe, zinc spraying pipe, conjoined pipe, intercooler flat pipe and other special pipes. mainly be used on the automotive air conditioner, public air conditioner, heat exchanger, condenser, evaporator.



The big or small multi-channel tubes are available in various sizes and alloys, ensuring the best properties for the purpose required.



Characteristics



● Lightweight

● Corrosion-resistant

● Excellent heat transfer performance

● Tighter tolerances

● Reduced assembly time

● High level of surface quality

● Big and wide aluminum extrusions for diverse applications




Aluminum Extruded Tube Micro Channel For Automotive Radiator 0
