High Frequency Welded Heatsink Tube Round For Condenser

MOQ:	500KG
Price:	Negotiation
Standard Packaging:	Export Standard Packing
Delivery Period:	35days including tooling time
Payment Method:	L/C, T/T
Supply Capacity:	100000ton/Every Year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001

Model Number

TR-CY051

Type:

High Frequency Welded Round Pipe For Condenser

Keyword:

Round Pipe

Technical:

High Frequency

Alloy:

3003/4343/7072

Temper:

O, H14/H16

Tube Size:

Customized

Wall Thickness:

0.25mm, 0.28mm Or Customized

Surface:

Mill Finished

Highlight:

High Frequency Heatsink Tube

Aluminum Radiator Tube Welded

Condenser Heatsink Tube

Product Description

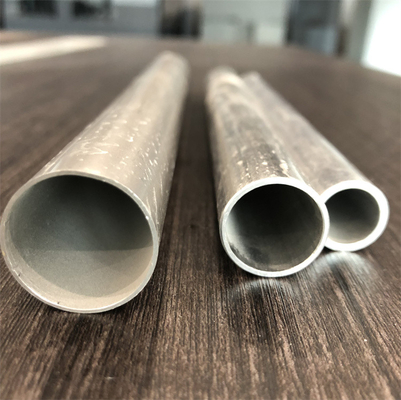

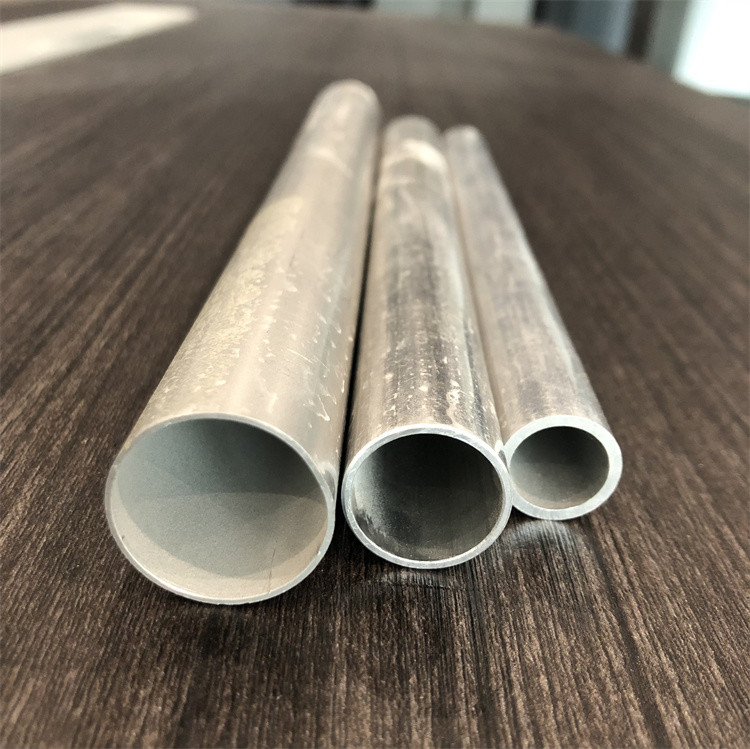

High Frequency Welded Heatsink Round Tube For Condenser

High Frequency Welded Round Pipe For Condenser

High Frequency (HF) welded techincal rely on the properties of high frequency electricity and thermal conductive, which decide the distribution of heat in the workpieces. High frequency contact welding and high-frequency induction welding are used to weld products made from coil, flat, or tubular stock with a constant joint symmetry throughout the length of the weld.

Our frequency welding aluminum tubing are widely applied for automobile heat exchangers. it including lots of tube types(flat oval aluminum tubes), dimple flat aluminum tubes, high frequency B-type tube,dimple hourglass tube, folded B-tube, oil cooler tube, CAC tube etc.

Specification

Item	Aluminium round tubing
Size	as your request
Alloy	1050,1100,3003,3102
Temper	O, H14/H16/H24
Application	Radiator, condenser, evaporator, oil cooler, heater coil

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
3003	≤0.6	≤0.7	≤0.05-0.2	1.0-1.5	---	---	≤0.1	≤0.05	≤0.05
3005	≤0.6	≤0.7	≤0.3	1.0-1.5	0.2-0.6	0.1	≤0.25	≤0.1	≤0.05
4343	6.8-8.2	≤0.8	≤0.25	≤0.1	---	---	≤0.2	---	≤0.05
7072	≤0.7	≤0.1	≤0.1	≤0.1	---	0.8-1.3	---	---

Trumony is an excellent supplier in producing a multi-channel aluminium tube, so it can provide various multi-channel aluminium tubes with different sizes, shapes, aluminium alloy. The following products are available for inquiring:

● Aluminium Micro-channel Tube
● Aluminium Multi-Port Tube
● Parallel Flow Aluminium Flat Tube
● Zinc-coated Aluminium Tube
● Pre-Flux Coated Aluminium Tube
● Si Flux Coated Aluminium Tube
● Large Multi-channel Tube(width range 50-200mm)
● Double Row Joint Multi-channel Flat Tube
