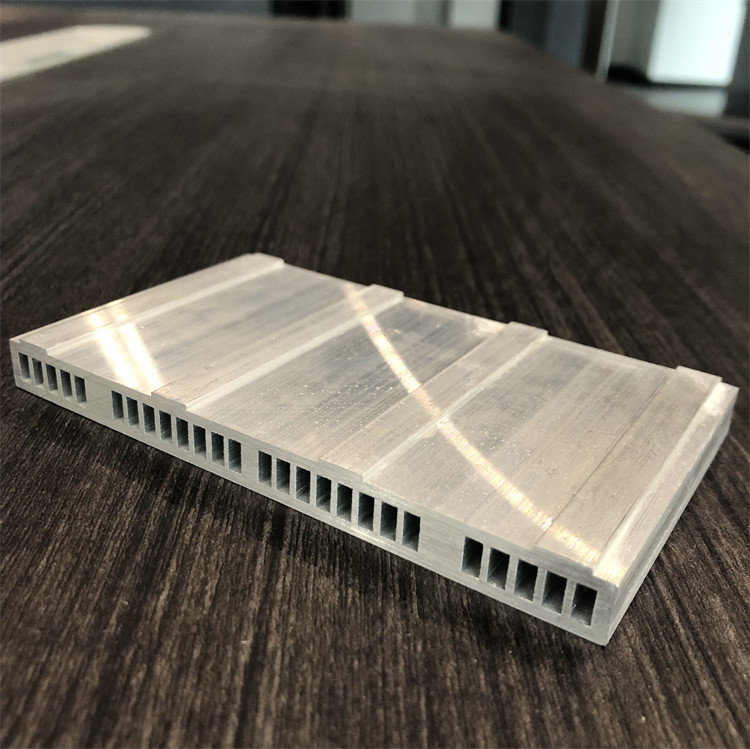

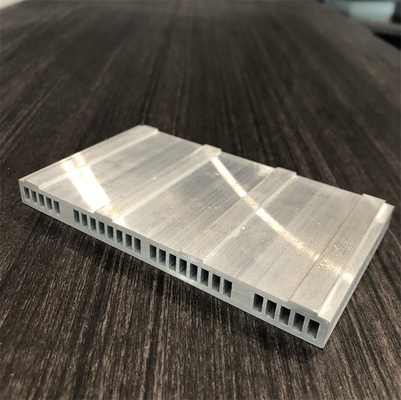

Multihole Flat Aluminum Extruded Tube For Radiator

MOQ:	500KG
Price:	Negotiation
Standard Packaging:	Export Standard Packing
Delivery Period:	35days including tooling time
Payment Method:	L/C, T/T
Supply Capacity:	100000ton/Every Year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001

Model Number

TR-CY056

Type:

Multihole Extruded Aluminum Flat Tube Pipe For Radiator

Keyword:

Pipe For Radiator

Technical:

Extruded

Alloy:

1000,3000,

Temper:

O, H14/H16

Tube Size:

Customized

Wall Thickness:

0.25mm, 0.28mm Or Customized

Shape:

Oval, Round,

Surface:

Mill Finished

Highlight:

Flat Aluminum Extruded Tube

Multihole Aluminum Extruded Tube

Radiator Aluminium Extruded Tube

Product Description

Multihole Extruded Aluminum Flat Tube Pipe For Radiator

Micro channel aluminum flat tube (also called "parallel flow aluminum flat tube") is a kind of is made of refined aluminum rods, by hot extrusion, after spraying zinc surface anti-corrosion treatment, porous sector thin-walled tubular material, mainly used in various kinds of cooling air conditioning system, as a carrier of new environmental protection refrigerant piping components, adopt new environmental protection system is a new generation of microchannel parallel flow the key materials of air conditioning heat exchanger.

Chemical Composition

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤ 0.25	≤ 0.40	≤ 0.05	≤ 0.05	≤ 0.05	-	≤ 0.05	≤ 0.05	≤ 0.03
2	1100	≤ 0.95(Fe+Si)		0.05-0.20	≤ 0.05	-	-	≤ 0.10	-	-
3	1197	≤ 0.15	≤ 0.20	0.40-0.55	0.10-0.20	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
4	3102	≤ 0.40	≤ 0.70	≤ 0.10	0.05-0.40	-	-	≤ 0.30	-	≤ 0.10
5	3R03	≤ 0.15	≤ 0.15	≤ 0.01	0.90-1.10	≤ 0.03	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05

Features:

Aluminum Micro Channel Tube(MPE)-which has large internal space which gives better efficiency for heat transfer. With the
improvement of the tooling, we can make the mpe very precisely,also due to improvement of the aluminium extrusion technology ,an
all-aluminium brazed heat exchangers using MPE will also be lighter in weight while still have the good heat exchange performance
as the cooper and other heavy and expensive metal, now we can find MPEs are primarily used for the following application: condenser, air conditioner, raidator, evaporator, automobile, electric car etc.

FAQ:

Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.

Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?
A: Yes,we can!

Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.

Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!

Multihole Flat Aluminum Extruded Tube For Radiator 0
