Aluminum Extruded Tube Micro Multiport For Auto Car Air Conditioning

MOQ:	500KG
Price:	Negotiation
Standard Packaging:	Export Standard Packing
Delivery Period:	35days including tooling time
Payment Method:	L/C, T/T
Supply Capacity:	100000ton/Every Year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001，ISO14001

Model Number

TR-CY070

Type:

Aluminum Extrusion Micro-multiport Tube For Auto Car Air Conditioning

Keyword:

Aluminum Extrusion Micro-multiport Tube For Auto Car Air Conditioning

Technical:

Extrusion

Alloy:

1050,3003

Temper:

O, H14/H16

Tube Size:

Customized As Your Request

Wall Thickness:

0.25mm, 0.28mm Or Customized

Shape:

Oval, Round, Flat,

Surface:

Milled

Highlight:

Air Conditioning Aluminum Extruded Tube

Aluminum Extruded Tube Multiport

Auto Car Aluminum Extruded Tube

Product Description

Aluminum Extrusion Micro-multiport Tube For Auto Car Air Conditioning

Aluminum Extrusion Micro-multiport Tube For Auto Car Air Conditioning is an important spare part for auto car air conditioning ,radiator , condenser and evaporator.

Benefit from our own tooling center, lots of ready molds are with us.

Based on good channel flow design, coolant can run inside the tube and ensure high cooling efficiency, You can also design your own micro channel tube shape ,size, and send us the drawing to us, we can do the custom manufacturing accordingly .

Item	Catagory	Range
1	Fixed Length	200-4000mm
2	Width	8mm-60mm
3	Thickness	1mm-4mm
4	Wall Thickness	0.15mm-0.6mm
5	Thickness of zinc spraying	5g/mm-15g/mm
6	Thickness of solder layer	8g/mm-25g/mm

1. Micro Channel Tube Application:

1) Auto car air conditioner, water tank, oil cooler, condenser and evaporator.

2) In the field of commercial: such as household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler

2. Alloy:

1) 1000 series:1050, 1060, 1100, 1197 etc

2) 3000 series:3102, 3003

3. Temper: O/F/H111/H112 etc

4. Chemical Composition

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤ 0.25	≤ 0.40	≤ 0.05	≤ 0.05	≤ 0.05	-	≤ 0.05	≤ 0.05	≤ 0.03
2	1100	≤ 0.95(Fe+Si)		0.05-0.20	≤ 0.05	-	-	≤ 0.10	-	-
3	1197	≤ 0.15	≤ 0.20	0.40-0.55	0.10-0.20	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
4	3102	≤ 0.40	≤ 0.70	≤ 0.10	0.05-0.40	-	-	≤ 0.30	-	≤ 0.10
5	3R03	≤ 0.15	≤ 0.15	≤ 0.01	0.90-1.10	≤ 0.03	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05

5. Company Inoformation:

We are Trumony Aluminium Limited, and professional ALUMINIUM PRODUCTS manufacturer for more than 10 years .Our main products are incluidng various such as Raw material : Aluminum foil/roll/plate/sheet/fin/coils/tubes, Automobile battery cooling plate and Aluminium extruded profile., Whatever the aluminium products of your demands, we can supply to you with competives prices.

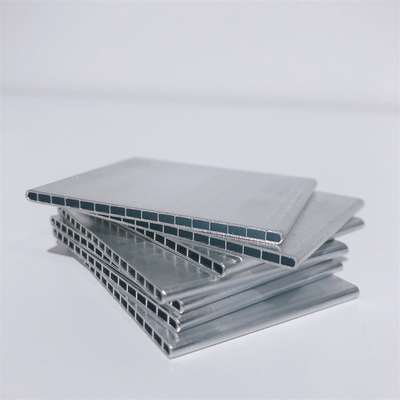

Aluminum Extruded Tube Micro Multiport For Auto Car Air Conditioning 0

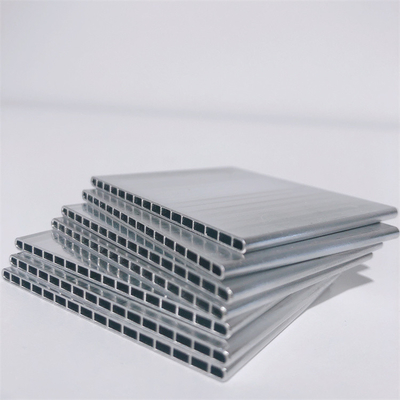

Aluminum Extruded Tube Micro Multiport For Auto Car Air Conditioning 1

Tags:

round aluminum tubing,

aluminium alloy tube,

oval aluminum tubing

4343 40x20 Extrusion Dimple Hour Glass Pipe Aluminum Spare Parts

Contact Now

High Frequency Welding HFW Aluminum Radiator Tube For Heat Exchanger / Automotive

Contact Now

Extruded Aluminum Spare Parts Micro Multi Channel Aluminium Tube

Contact Now

Parallel Flow Brazing Aluminum Tube For Automobile Radiator / Air Conditioner

Contact Now

Electric Light Truck Liquid Based Battery Ribbon For BEV

Contact Now

3003 Alloy Aluminum Liquid Cooling Tube For Hybrid Electric Aircraft

Contact Now

Cylindrical Battery Water Cooling Plate For Household Energy Storage

Contact Now
