Micro Channel Parallel Flow Aluminium Flat Sheets 1050 Alloy

MOQ:	500KG
Price:	Negotiation
Standard Packaging:	Export Standard Packing
Delivery Period:	35days including tooling time
Payment Method:	L/C, T/T
Supply Capacity:	100000ton/Every Year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001，ISO14001

Model Number

TR-CY071

Type:

1050 Micro Channel Parallel Flow Aluminium Flat Tubes

Keyword:

Aluminium Flat Tubes

Process:

Extrusion

Alloy:

1050,3003,1060,

Temper:

Tube Size:

Customized As Your Request

Wall Thickness:

0.25mm, 0.28mm Or Customized

Shape:

Oval, Round, Flat,

Surface:

Milled

Highlight:

1050 Alloy Aluminium Flat Sheets

Parallel Flow Aluminum Extrusion Tube

Flat Aluminum Extruded Tube

Product Description

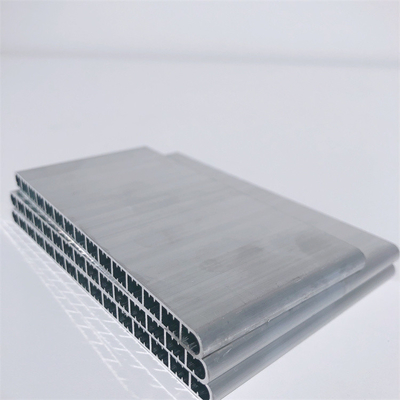

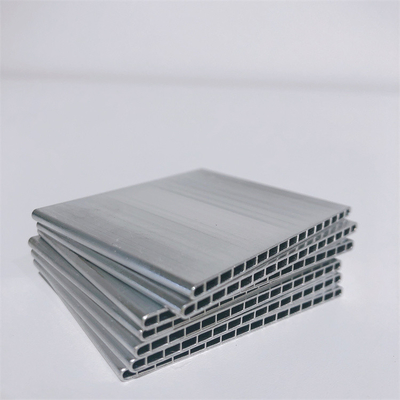

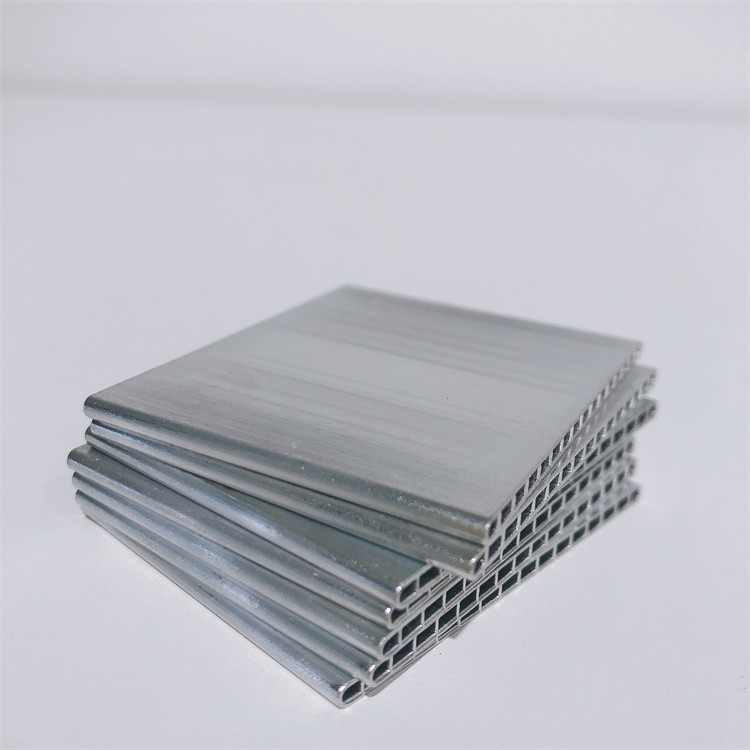

1050 Micro Channel Parallel Flow Aluminium Flat Tubes

1050 Micro Channel Parallel Flow Aluminium Flat Tubes also called multi-port extrusion, this flat and rectangular extruded tube is made of several channels that increase the heat transfer through a higher surface per volume ratio.

Micro-channel tubes are available in various sizes and alloys, ensuring the best properties for the purpose required, and can be delivered with a coating, ready for assembly and oven brazing.

Item	Catagory	Range
1	Fixed Length	200-4000mm
2	Width	8mm-60mm
3	Thickness	1mm-4mm
4	Wall Thickness	0.15mm-0.6mm
5	Thickness of zinc spraying	5g/mm-15g/mm
6	Thickness of solder layer	8g/mm-25g/mm

Micro Channel Tube Application:

1) Auto car air conditioner,condenser and evaporator.

2) In the field of commercial: such as household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler

Chemical Composition

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤ 0.25	≤ 0.40	≤ 0.05	≤ 0.05	≤ 0.05	-	≤ 0.05	≤ 0.05	≤ 0.03
2	1100	≤ 0.95(Fe+Si)		0.05-0.20	≤ 0.05	-	-	≤ 0.10	-	-
3	1197	≤ 0.15	≤ 0.20	0.40-0.55	0.10-0.20	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
4	3102	≤ 0.40	≤ 0.70	≤ 0.10	0.05-0.40	-	-	≤ 0.30	-	≤ 0.10
5	3R03	≤ 0.15	≤ 0.15	≤ 0.01	0.90-1.10	≤ 0.03	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05

What can we do for you ?

1-Micro-channel heat exchangers: If you are looking to maximize the competitive advantages of an all-aluminium heat exchanger, then brazed micro-channel heat exchangers are for you.

2-Precision tubes: With over 10 years of experience supplying the automotive and the HVAC&R industries, Trumony clear market leader in the field of providing aluminium solutions for heat transfer applications.

3-Aluminium for thermal management : You can now order coolers with long, thin fins. This is the base for a range of competitive cooling solutions that use aluminium.
