21700 EV Aluminium Cooling Plate Cylindrical Micro Channel Serpentine

Name: 21700 EV Aluminium Cooling Plate Cylindrical Micro Channel Serpentine
Brand: Trumony Aluminum Limited
SKU: TR-CY072
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Trumony

Certification: ISO9001,ISO14969

Model Number: TR-CY072

Trading Properties

Minimum Order Quantity: Sample available

Price: Negotiation

Payment Terms: T/T

Supply Ability: 100000 tons yearly

Cylindrical Aluminium Cooling Plate

Specifications

Product name:	21700 EV Cylindrical Battery Aluminium Micro Channel Serpentine Cooling Tube	Keyword:	Serpentine Cooling Tube
Shape:	Serpentine/Bent/Snake Shape	Grade:	1000,3000 Series
Color:	Black, Silver	Surface:	Bare/metallic/coating /stick Thermal Conductive Film
Temper:	O,F,H111,H112	Application:	Cylindrical Battery Cooling
Material:	Aluminium	Pack:	Cartons
High Light:	Cylindrical Aluminium Cooling Plate , Serpentine Aluminum Cold Plate , 21700 EV Aluminium Cooling Plate

Product Description

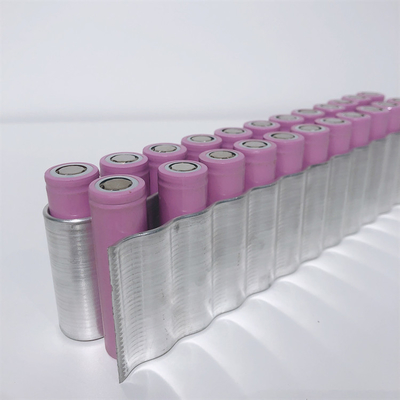

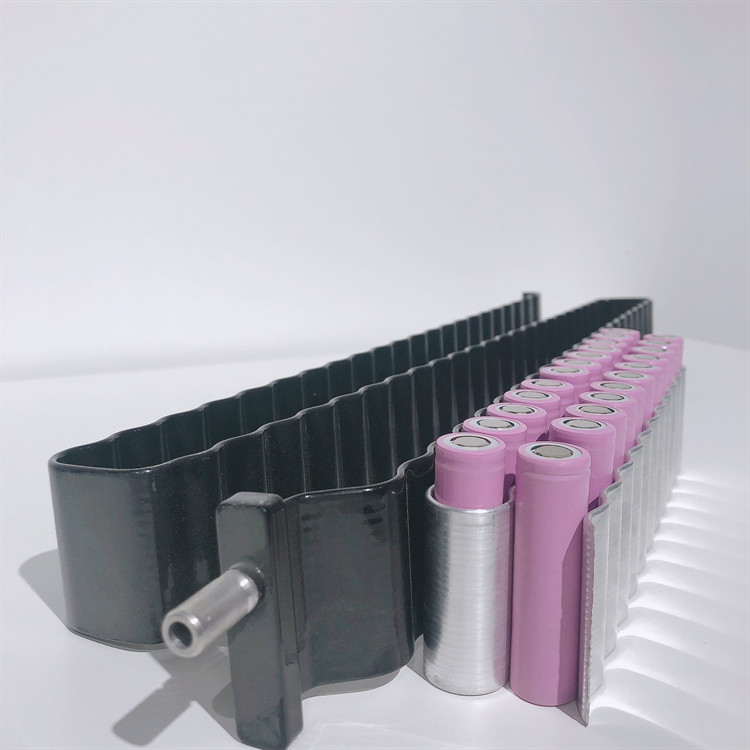

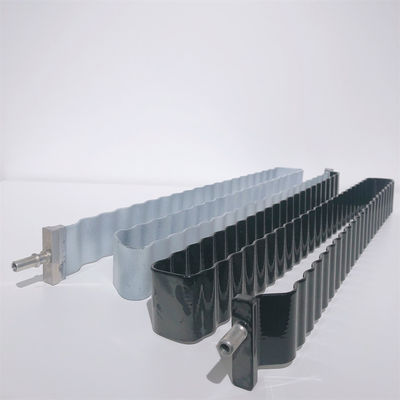

21700 EV Cylindrical Battery Aluminium Micro Channel Serpentine Cooling Tube

Description

21700 EV Cylindrical Battery Aluminium Micro Channel Serpentine Cooling Tube is actually made of Micro-channel Extruded Aluminium Tubes,we also call it multiport aluminum snake tubes or aluminum micro channel serpentine cooling cold pipes, which are unique tubes developed with highly refined manufacturing quality.

According to customers' different requirements of the tube design, we all can be customized the size tube and can be controlled strictly by our precise toolings. We are having very rich experience in the tooling making and calibration. With our extrusion production line improved,we are now able to produce the tube with more than 100mm width and the flat surface.

Specification

No.	Item	Data
1	Name	Aluminum snake cooling cold tube for EV Battery
2	Alloy	1000,3003
3	Temper	O-H
4	Application	For electric vehicle cylindrical batteries, such as 18650,21700 and 46800, we also supply aluminium cooling plate for prismatic batteries and pouch pack.

Commonly used material chemical composition:

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05

Advanteage

We are a professional battery pack heat exchanger manufacturer. Our company designs, makes and distributes heat exchangers for battery packs, which carrying cylindrical cells, prismatic cells or pouches.
We have full solutions about cooling the battery cells, for example snake tubes for cylindrical cells (18650,21700); water cooling plate for prismatic cells, and plate channel for pouches.

We do hope to utilize our expertise to have chance to establish long-term cooperation with you , as battery thermal management is very critical in an operation of EV. Here are a few things we are good at:

1. Tooling development — we do it in house, so we can make initial testing prompt and accurate.
2. Making all kinds of heat exchangers — we can do customized shape, to make the parts fit into different packs.
3. Assistance in parts design — we have experienced engineer team, they can provide professional suggestions regarding feasibility of carrying out new designs.
