Cylindrical Battery Aluminum Cooling Plate Extruded Snake Shaped
| Product name: | Micro-Channel Aluminum Extruded Liquid Cooling Snake Tube For Cylindrical Battery | Keyword: | Extruded Liquid Cooling Snake Tube |
| Shape: | Snake Tube | Color: | Silver & Black |
| Grade: | 3003,1060,1050, | Treatment: | Milled |
| Temper: | H16 | Application: | Snake Tube For Cylindrical Battery |
| Material: | Aluminium | Pack: | Cartons + Pallets |
| High Light: | Snake Shaped Aluminum Cooling Plate,Cylindrical Battery Aluminum Cooling Plate,3003 Aluminum Tube Extruded |
||

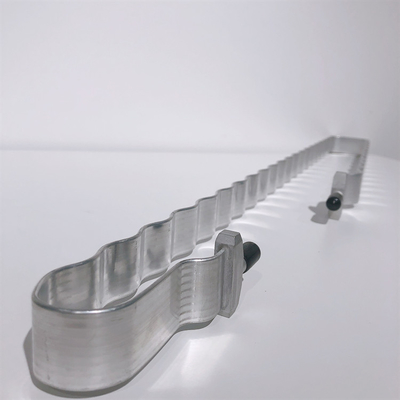

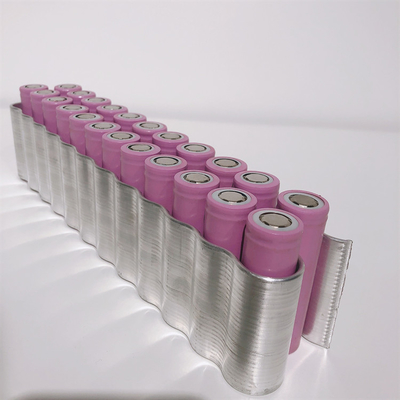

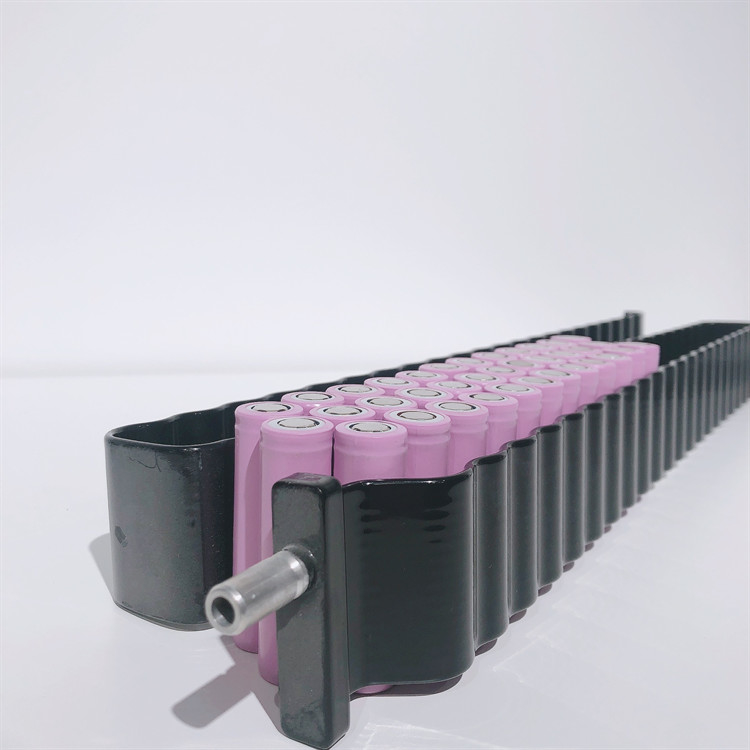

Micro-Channel Aluminum Extruded Liquid Cooling Snake Tube For Cylindrical Battery
Description
At present, we are supplying Micro-Channel Aluminum Extruded Liquid Cooling Snake Tube For Cylindrical Battery . To cater diversified needs of customers, we have fully soultion for them .To provide max. lithium-ion battery life and optimum performance,advanced battery cooling and heating solutions regulate battery temperatures within their optimal operating range under all conditions by transferring heat from a battery cooling plate through a two-phase battery chiller.
Specification of snake tube
1. 3003 and other series aluminum alloy
2. anodizing, polishing, turning, power coating, mill finish etc
3. OEM, ODM, or design by ourselves
4. CNC ,extruding machine, cold drawn machine, heating oven, straightening machine, cutting machine
| No. | Artical | Data |
| 1 | item | Micro-Channel Aluminum Extruded Liquid Cooling Snake Tube For Cylindrical Battery |
| 2 | Is Alloy | 1050,1060,3003, |
| 3 | Temper | O,H12,H14 |
| 4 | Dimension | Custom |
| 5 | Thickness | As your request 2-5mm |
| 6 | Usage |
EV Battery or energy storage system(ESS) |
| 7 | Benefit |
Low the energy cost, increase the electric vehicle energy kilograme |
Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| Voltage Test | Yes |
| Under water test | Yes, check the leakage for welding |
| physical test & Optics test | Yes |
| Roughness test & hardness test | Yes |
| Salt spray test | Yes,inside & outside corrosion test |
| Burst test | Yes |
| Nitrogen & Helium test | Yes |
| Flow resistance test | Yes |
| Chemical composition test | Yes |
What can we do ?
Trumony as a China a supplier is with more than 10 years export experience, we not only provide different aluminum products , but also we can give suitable solution for our clients. Our aluminum products including series : EV battery cooling plate(whatever for cylindrical cell, prismatic cell and pouch pack), metal composite material, aluminium coils/sheet/plate/tube, and automobile lightweight material . What we sell is for what you need....
