Electric Vehicle Aluminium Cooling Tube For 18650 Cell Cylindrical Battery

MOQ: Sample available
Price: Negotiation
Standard Packaging: Ply-wood box specialized for export
Delivery Period: 30days including tooling time
Payment Method: T/T
Supply Capacity: 100000 tons yearly
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO9001,ISO14000,IATF14969
Model Number
TR-CY079
Product Name:
Electric Vehicle Aluminium Cooling Tube For 18650 Cell Cylindrical Battery
Keyword:
Electric Vehicle Aluminium Cooling Tube
Shape:
Micro Channel Tube
Color:
Silver
Grade:
3003
Treatment:
Vapor Chamber
Temper:
H16.H14.O
Application:
Cooling Tube For 18650 Cell Cylindrical Battery
Material:
Aluminium
Pack:
Cartons + Pallets
Highlight:

3003 Grade Aluminium Cooling Plate

,

Electric Vehicle Aluminium Cooling Plate

,

18650 Cell Aluminum Cooling Plate

Product Description

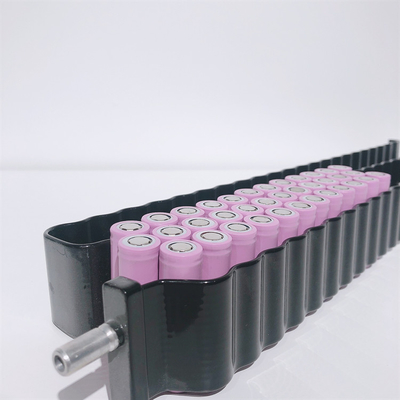

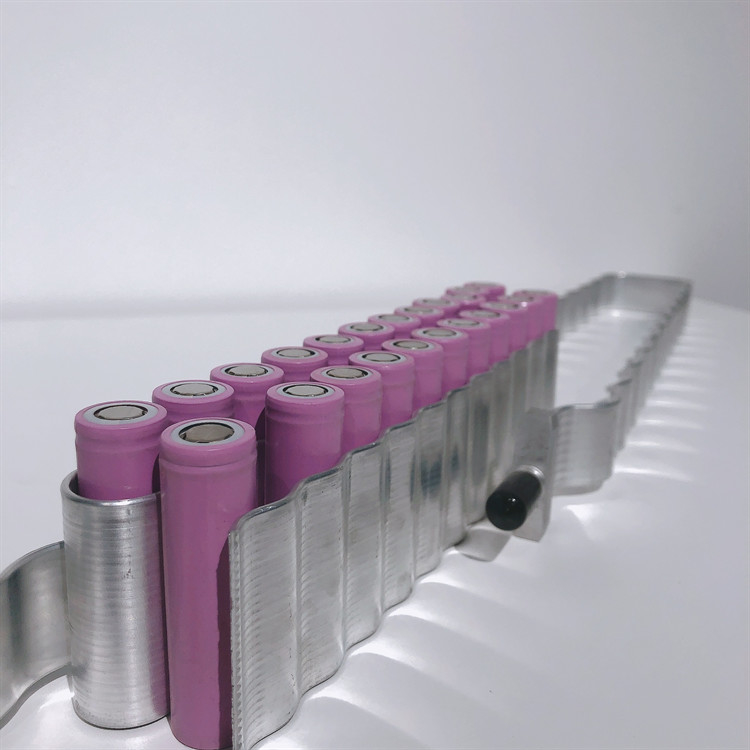

Electric Vehicle Aluminium Cooling Tube For 18650 Cell Cylindrical Battery



Description



Since 2006 , our company supply Electric Vehicle Aluminium Cooling Tube For 18650 Cell Cylindrical Battery over than 10 years, and have customers more  than 54 countries.As a China aluminum cooling plate manufacturer , we are aim to produce the aluminium cooling coldplate or aluminum microchannel cooling pipes for new energy cars, but also providing series services as below :

1. Tooling development — we do it in house, so we can make initial testing prompt and accurate.
2. Making all kinds of heat exchangers — we can do customized shape, to make the parts fit into different packs.
3. Assistance in parts design — we have experienced engineer team, they can provide professional suggestions regarding feasibility of carrying out new designs.

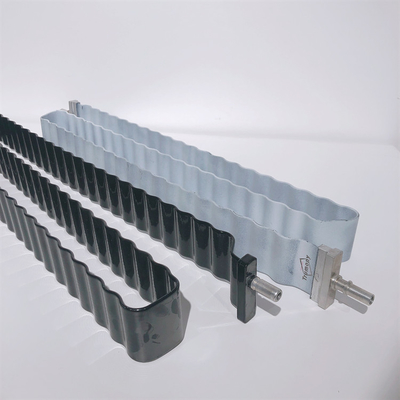

Specification of snake cooling tube



No. Artical Data
1 item Electric Vehicle Aluminium Cooling Tube For 18650 Cell Cylindrical Battery
2 Alu Alloy 3003
3 Temper H24
4 Dimension Customized
5 Thickness normal thickness
6 Usage

Electric Vehicle 18650 Cell Cylindrical Battery



Aluminium Temper Specification

Alloy code
Temper
Tensile Strength Rm
(Mpa)
Yield Strength Rp0.2(Mpa)
Elongation
TR010,TR020,TR030,TR040,TR050,
TR110,TR310,TR116,TR316,TR111,
TR313,TR121,TR131,TR141,TR150,
TR151,TR156 etc
O
95~135*
≥35*
≥15*
H14
140~185
≥125
≥1.5
H24
140~185
≥125
≥3
H16
185~225
≥160
≥1
H18
≥185
-
≥0.5
TR166 etc tube material
H24
185~235
≥150
≥8
TR116,TR316 etc tube material
H14
140~185
≥125
≥3
H24
140~185
≥125
≥8



Lab & Test
Voltage Test Yes
Under water test Yes, check the leakage for welding
physical test & Optics test Yes
Roughness test & hardness test Yes
Salt spray test Yes,inside & outside corrosion test
Burst test Yes
Nitrogen & Helium test Yes
Flow resistance test Yes
Chemical composition test Yes



Features and Benefits

* Mechanical and thermal interface to regulate the battery pack’s temperature.
* Heated/cooled coolant flows through a cooling surface, which is in good thermal contact with the battery cells.
* Coolant fitting alternatives available.
* Design options: * Dimpled coolant passages with lower internal pressure drop.
* Coolant passages with turbulator insert with higher pressure drop and increased heat rejection capacity.
* Customized plate sizes and coolant flow path.
* Design developed to optimize flow distribution, internal pressure drop, thermal resistance, and surface temperature gradient.
We continue to build on the advantage of our battery heating and cooling innovations to provide customers optimum battery life and performance.



Electric Vehicle Aluminium Cooling Tube For 18650 Cell Cylindrical Battery 0
