Product Details:
|
| Product Name: | Vacuum Brazing Ev Battery Cooling Plates Heat Exchangers For Pack | Keyword: | Vacuum Brazing Ev Battery Cooling Plates |
|---|---|---|---|
| Type: | Cooling Plates Heat Exchangers | Grade: | 3003,1050,1060, |
| Coolant Type: | Water Or Glycol | Temper: | O-H112 |
| Technology: | Vacuum Brazing | Structure: | Plate+flow Channel+connectors |
| Pack: | Standard Exporting Package | Payment Term: | TT Or LC |
| High Light: | 3003 Grade Aluminum Cooling Plates,Ev Battery Aluminum Cooling Plates,Vacuum Brazing Aluminum Cold Plate |
||

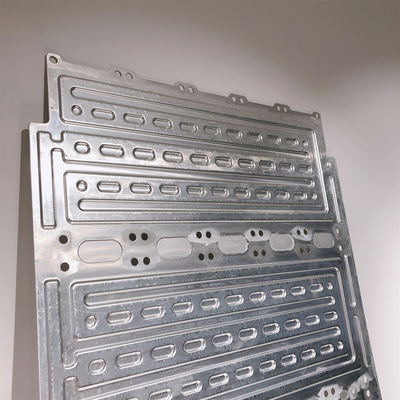

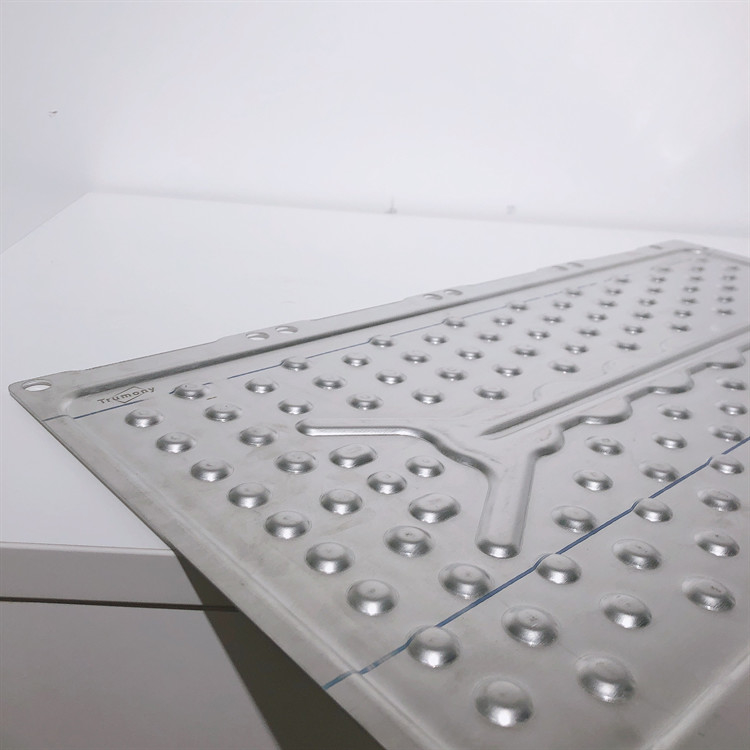

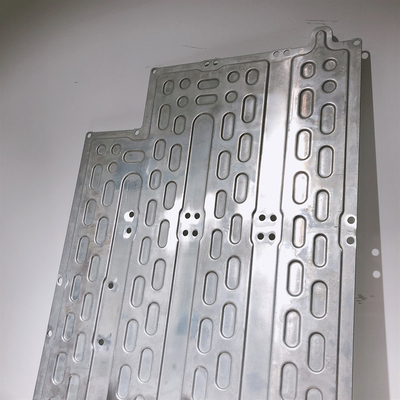

Vacuum Brazing Ev Battery Cooling Plates Heat Exchangers For Pack
Vacuum Brazing Ev Battery Cooling Plates Heat Exchangers For Pack are widely used for New energy automobile/vehicles, main function is heat transfer, which helps to remove battery packs' heat.
Alloy State:
3003 or according to customers' requests.
Core Alloy:3003
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Bi | Zr | Ti | Al |
| Max | 0.6 | 0.7 | 0.20 | 1.5 | - | 0.05 | 0.10 | 0.05 | - | - | Rem |
| Min | - | - | 0.05 | 1.0 | - | - | - | - | - | - | - |
Mechnical Properties
| Properties | Rp0.2(MPa) | Rm(MPa) | A50(%) | Clad 1 ratio(%) | Clad 2 ratio(%) |
| Max | - | 135 | - | - | - |
| Min | 35 | 95 | 10 | - | - |
Aluminum Cooling Plate are our advantageous products, which are widely used for below industry:
1.Square Battery Thermal Management
2.Cylindrical Battery Thermal Management
3.Electric Thermal Management
4.All Aluminum Liquid Cooling Tray
5.Motor Thermal Management
6.Soft Packing Battery Thermal Management etc.
