Product Details:
|
| Product Name: | Home Appliance White Aluminum Roll Bond Evaporator Single Entry | Keyword: | Roll Bond Evaporator |
|---|---|---|---|
| Type: | Roll Bond Evaporator | Grade: | 3003+1050 |
| Temper: | O-H112 | Technology: | Rolling |
| Pack: | Standard Exporting Package | Payment Term: | TT Or LC |
| High Light: | Aluminum Roll Bond Evaporator,Single Entry Roll Bond Evaporator,3003 Aluminum Evaporator |
||

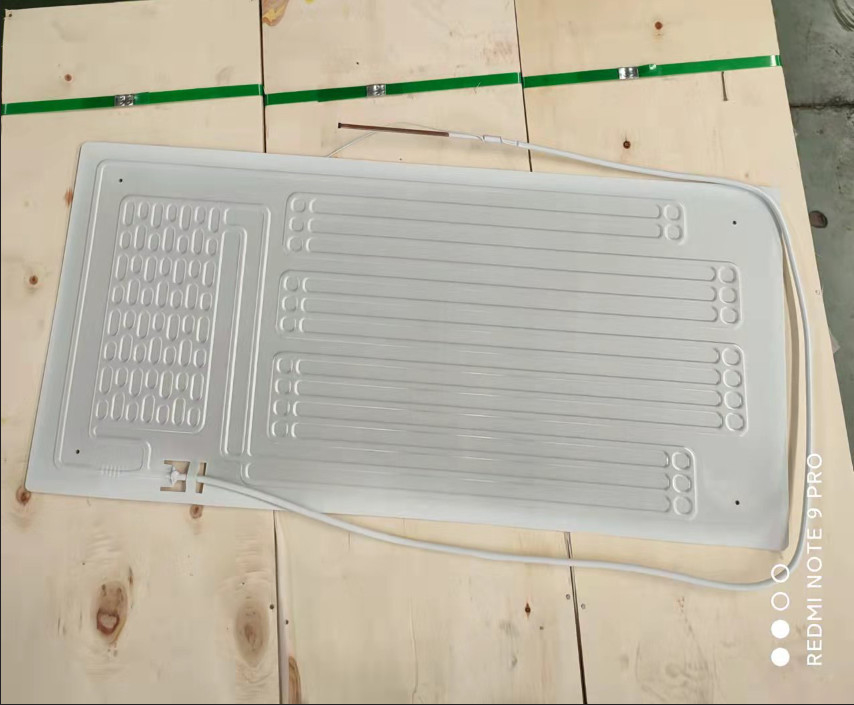

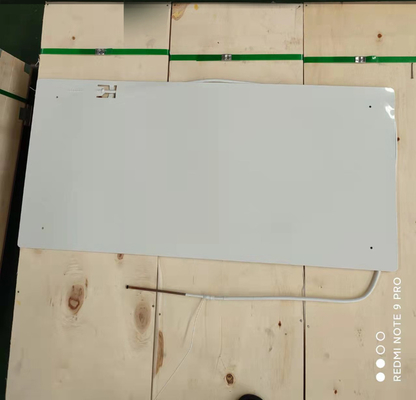

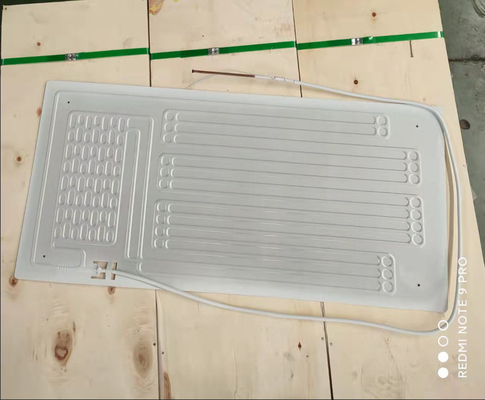

Home Appliance White Aluminum Single Entry Roll Bond Evaporator
Roll bond evaporator, aluminum evaporator, fridge evaporator, double size roll bond evaporator also can using on Solar panels
Products:381X229mm Aluminium Roll bond evaporator in refrigerator
Main use: Used in freezer, refrigerator, wine cabinet, showcase chiller etc.
Good quality, service and moderate price in the same field
Powerful production ability, quick delivery!
Alloy State:
3003 or according to customers' requests.
Core Alloy:3003
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Bi | Zr | Ti | Al |
| Max | 0.6 | 0.7 | 0.20 | 1.5 | - | 0.05 | 0.10 | 0.05 | - | - | Rem |
| Min | - | - | 0.05 | 1.0 | - | - | - | - | - | - | - |
| Raw material | Al-plate: finished products thickness: 1.1 2.0mm, raw material Al plate thickness: 1.4 2.5mm |
| Structure | Double side roll bond evaporator, Single side roll bond evaporator,part single side roll bond evaporator |
| Key process | Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing |
| Technical Standards | Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator. |
| Performance | 1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R134a & CFC cooling system. 3) Can satisfy the cooling capability requirements. |
| Capacity | 3.5 million sets per year (10000 sets per day) |
Specification of coating
| Coating thickness | thickness of coating40 90 μ m |
| Hardness of coating | ≥2H |
| Impact of coating | 50cm?kg/cm impact, no crack |
| Adhesion of coating | ≥two grade |
| Flexibility of coating | Around R=3D bend 180?, no crack or no fall off |
