Product Details:
|
| Product Name: | Single Entry Fridge Freezer Roll Bond Aluminum Evaporator | Keyword: | Roll Bond Aluminum Evaporator |
|---|---|---|---|
| Type: | Single Entry Roll Bond Panels | Grade: | 3003+1050 |
| Temper: | O-H112 | Technology: | Rolling |
| Pack: | Standard Exporting Package | Payment Term: | TT Or LC |
| High Light: | Single Entry Freezer Roll Bond Evaporator,Solar Panel Freezer Roll Bond Evaporator,Aluminum Evaporator Roll Bond |
||

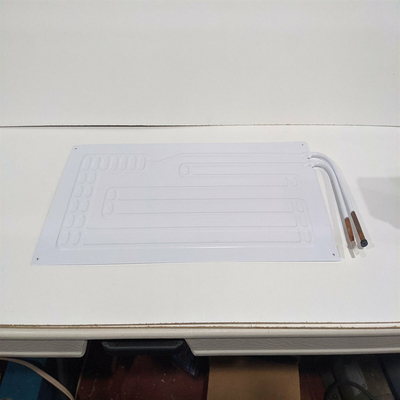

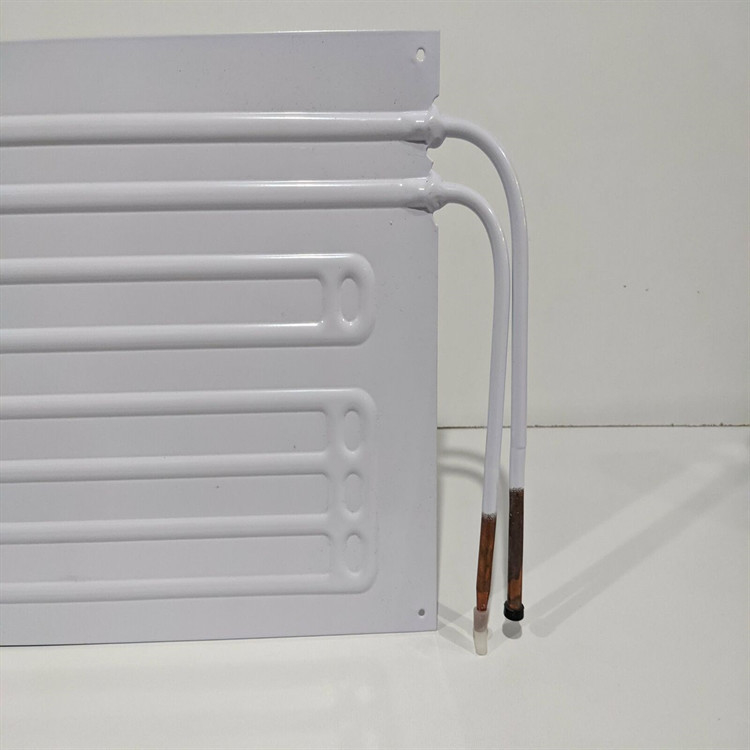

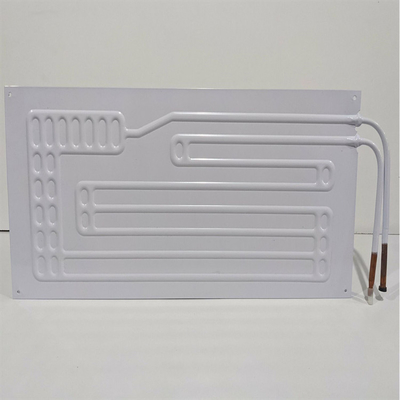

Single Entry Fridge Freezer Roll Bond Aluminum Evaporator For Solar Panel
Single Entry Fridge Freezer Roll Bond Aluminum Evaporator
We can supply aluminum roll bond evaporator for refrigerator and ice-box.
Raw material Al-plate: Finished products thickness: 1.1-2.0mm,
Raw material Al plate thickness: 1.4-2.5mm
Structure Double side rollbond evaporator,
Single side rollbond evaporator,
Part single side rollbond evaporator
Key process Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Specification
| Raw material | Al-plate: finished products thickness: 1.1 2.0mm, raw material Al plate thickness: 1.4 2.5mm |
| Structure | Double side roll bond evaporator, Single side roll bond evaporator,part single side roll bond evaporator |
| Key process | Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing |
| Technical Standards | Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator. |
| Performance | 1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R134a & CFC cooling system. 3) Can satisfy the cooling capability requirements. |
| Capacity | 3.5 million sets per year (10000 sets per day) |
Specification of coating
Coating thickness thickness of coating40 90 μ M
Hardness of coating ≥ 2H
Impact of coating 50cm? Kg/cm impact, no crack
Adhesion of coating ≥ Two grade
Flexibility of coating Around R=3D bend 180? , no crack or no fall off
Color tolerance of powder painting E≤ 1.5
| Al- plate | Finished products thickness:1.1-2.0mm |
| Raw material Al plate thickness | 1.4-2.5mm |
| Coating thickness | 40-90um |
| Coating hardness | More than 2H |
Performance
1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134A & CFC cooling system.
3) Can satisfy the cooling capability requirements.
