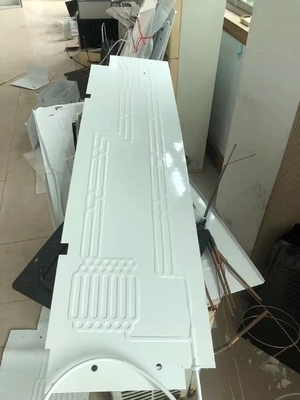

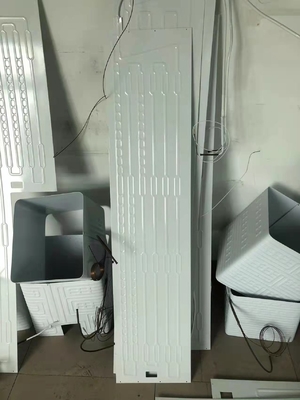

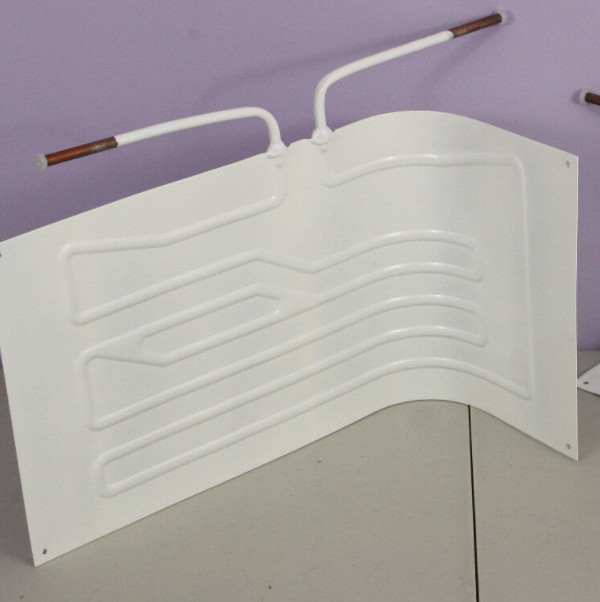

Aluminum Freezer Roll Bond Evaporator 1.2mm Thickness

Name: Aluminum Freezer Roll Bond Evaporator 1.2mm Thickness
Brand: Trumony Aluminum Limited
SKU: TR-CY-T113
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Trumony

Certification: ISO9001, IATF14969

Model Number: TR-CY-T113

Trading Properties

Minimum Order Quantity: Sample trial can be arranged

Price: Negotiation

Payment Terms: T/T

Supply Ability: 100000 tons yearly

1.2mm Thickness Roll Bond Evaporator

Specifications

Product name:	1.2mm Thickness Aluminum Roll Bond Plate Type Freezer Evaporator	Keyword:	Aluminum Roll Bond Plate
Type:	Freezer Evaporator	Parts:	Evaporator
Material:	Aluminum	Temper:	O-H112
Technology:	Rolling	Usage:	Home Refrigerator & Freezer
High Light:	1.2mm Thickness Roll Bond Evaporator , Aluminum Freezer Roll Bond Evaporator , Rolling Freezer Roll Bond Evaporator

Product Description

1.2mm Thickness Aluminum Roll Bond Plate Type Freezer Evaporator

We can supply different roll bond panels such as Double side rollbond evaporator, single side rollbond evaporator, part single side rollbond evaporator.Except this, we also supply liquid cooling plate for EV, aluminum micro channel cooling tube for EV , and vapor chamber (VC).

Specification

Al- plate	Finished products thickness:1.1-2.0mm
Raw material Al plate thickness	1.4-2.5mm
Coating thickness	40-90um
Coating hardness	More than 2H

Raw material : Al-plate: finished products thickness: 1.1 2.0mm, & raw material Al plate thickness: 1.4 2.5mm

Structure : Double side roll bond evaporator, Single side roll bond evaporator,part single side roll bond evaporator

Key Process :Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing

Performance
1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134A & CFC cooling system.
3) Can satisfy the cooling capability requirements.

Company Information

Trumony Aluminum Limited is located in Suzhou City, a traditional cultural and commercial center. With decades of rich experience,
Trumony takes heat transfer as its core business, focusing on providing key aluminum materials and components for fuel-fuel vehicle thermal management, new energy vehicle thermal management, and industrial heat transfer. Trumony′s mission is Bringing science and technology to reality.

Through the use of advanced equipment and technology, Trumony Aluminum Ltd provides water-cooled plates, serpentine elbows, multi-layer brazing materials, special alloy strips, multi-metal composite materials and various types of aluminum tubes, plates, coils, strips and foils in these industries.

Pls. Welcome to contact us for more information and service.
