Product Details:
|
| Name: | Single Aluminum Cell | Material: | Air Electrode, Aluminum Material, Cavity Shell, Current Collector |
|---|---|---|---|
| Voltage Of Single Aluminum Plate: | < 2V | Proper Working Temperature: | 10-40℃ |
| Storage Capacity: | Approxiately 1kwh | Size Of Single Aluminum Cell: | 25.5*20.*2cm |
| Weight: | 745g | ||
| Highlight: | Saltwater Aluminum Fuel Cell,Backup Power Aluminum Fuel Cell,Saltwater Aluminum Air Battery |
||
Aluminum Fuel Cell Saltwater Battery Single Cell Power Backup Power
1. Product description:
The essence of metal air battery power generation is the chemical corrosion of metal, that is, the process of chemical reaction between metal and air in electrolyte to release energy. Single aluminum cell is the core components of alumimum air battery stack.
2. Product specification:
| Voltage of single aluminum plate | 0.8V-1.3V |
| Working current | 35-45A |
| Size | 25.5*20.*2cm |
| Weight | 745g |
| Working temperature | 10-40 ℃ |
3. Product advantage:
1. Environment-friendly
The anode is common Mg, Al, Zn and other metals, which can be recycled;
The cathode is a composite of manganese based oxide catalyst and carbon, and the electrolyte is aqueous alkaline or neutral.
2. High energy density, fast mechanical charging and discharging
Theoretical specific energy: 6800 WH / kg for magnesium, 8140 WH / kg for aluminum and 1350 WH / kg for zinc;
The anode can be continuously discharged by mechanical replacement
3. Long storage time
The cathode and anode are very stable in the air, and the storage life can reach more than 10 years. The electrolyte is prepared as you use, which is convenient for storage and transportation.

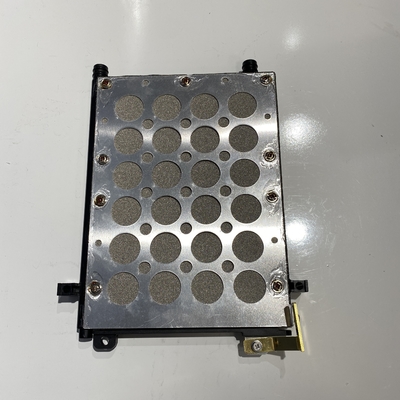

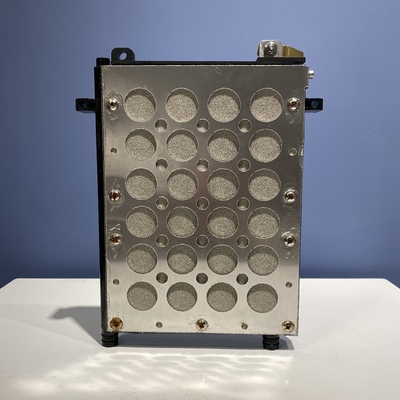

4. Single aluminum air cell structure:
